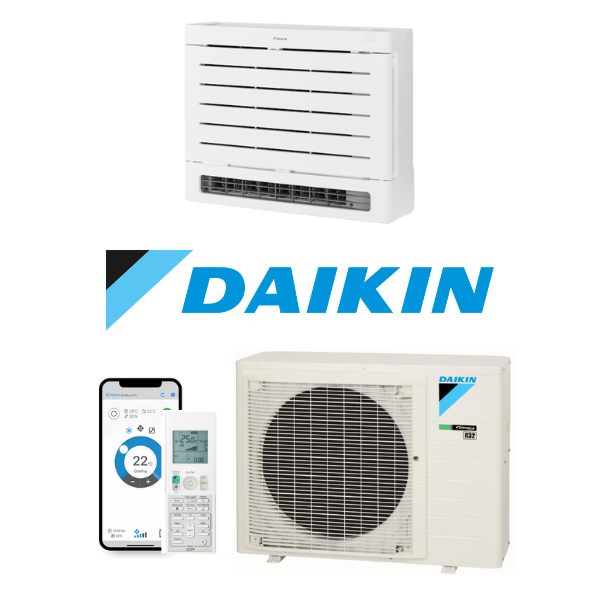

Daikin FVXM71Y 7.1kW Floor Standing Wi-Fi R32 Air Conditioning System

Daikin FVXM71Y 6.7kW Floor Standing R32 Wi-Fi Air Conditioning System

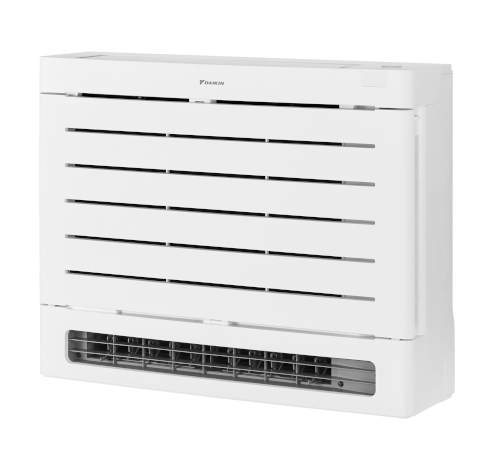

Daikin’s floor standing air conditioning units are compact and ideal for anyone wanting the convenience and access of positioning their unit closer to the floor. They come in a wide selection of capacities and can even be semi-recessed into the wall or in an unused fireplace.

Ultimate Heating - New Heat Plus and Heat Boost modes bring indoor heating to the next level, prioritising indoor comfort during cold nights.
Floor Warming - Optimises heat flow from the bottom louvre to quickly heat the floor area around the unit with convection air flow for greater floor coverage.
Hot Start - Heating operation commences only when the airflow is warm, preventing those unwanted cold draughts.
Built In Wi-Fi - Wi-Fi module for connection to Daikin's Mobile Controller smartphone interface is now conveniently included inside the casing of the indoor unit.
Advanced Purification - Each model is fitted with three layers of filtration, prefilter for large particulates, enzyme blue deodorising filter for odours and Daikin’s Streamer technology for powerful oxidative decomposition of pollutants.
Mould-Proof Operation - Activates after cooling or dry operation to prevent the build up of mould and odour.

(FVXM71Y)

System Names		FVXM25Y	FVXM35Y	FVXM46W	FVXM50W	FVXM60W	FVXM71W
Indoor Unit		FVXM25YVMA	FVXM35YVMA	FVXM46YVMA	FVXM50YVMA	FVXM60YVMA	FVXM71YVMA
Outdoor Unit		RXM25YFVMA	RXM35YFVMA	RXM46YFVMA	RXM50YFVMA	RXM60YFVMA	RXM71YFVMA
Rated Capacity	Cool (kW)	2.5	3.5	4.5	5.0	6.0	6.7
Rated Capacity	Heat (kW)	3.5	4.5	5.4	6.0	7.0	8.0
Capacity Range	Cool (kW)	1.2 - 3.0	1.2 - 3.8	1.2 - 5.0	1.7 - 5.6	2.3 - 6.7	2.3 - 6.7
Capacity Range	Heat (kW)	1.2 - 5.4	1.2 - 5.5	1.7 - 6.1	1.7 - 8.1	2.3 - 8.5	2.3 - 9.0
Indoor Airflow Rate Cool/Heat (I/s)		141 / 158	150 / 171	171 / 201	243 / 250	243 / 261
Indoor Fan Speeds		5 Steps, Quiet and Automatic
Star Rating Cool	Hot/Avg/Cold	4.5 / 3.5 / 3.5	4.5 / 3.5 / 3.5	3.5 / 3 / 3	4.5 / 3.5 / 3.5	3.5 / 3 / 3	3 / 3 / 3
ZERL (Residential) Heat		3.5 / 3 / 2.5	3 / 2.5 / 2.5	3 / 2.5 / 2	3.5 / 3 / 2.5	3 / 2.5 / 2
TCSPF (Residential)		6.39 / 5.22 / 5.13	6.1 / 5.21 / 5.28	5.13 / 4.56 / 4.74	6.03 / 5.34 / 5.47	5.19 / 4.71 / 4.88	4.93 / 4.51 / 4.70
HSPF (Residential)		5.26 / 4.84 / 4.40	4.86 / 4.4 / 4.0	4.76 / 4.23 / 3.74	5.1 / 4.58 / 4.11	4.53 / 4.12 / 3.7	4.53 / 4.03 / 3.55
Front Panel Colour		White
Power Supply		1 Phase, 220-240V, 50Hz
Power Input (Rated)	Cool (kW)	0.5	0.83	1.33	1.18	1.66	1.97
Power Input (Rated)	Heat (kW)	0.76	1.12	1.44		1.82	2.2
E.E.R / C.O.P Cool/Heat		5.0 / 4.61	4.22 / 4.02	3.38 / 3.75	4.24 / 4.17	3.61 / 3.85	3.40 / 3.64
Dimensions (HxWxD)	Indoor (mm)	600 x 750 x 238
Dimensions (HxWxD)	Outdoor (mm)	595 x 845 x 300			695 x 930 x 350
Weight (kg)	Indoor	18
Weight (kg)	Outdoor	38			54
Refrigerant Type		R32
Max Pipe Length	m	20			30
Max Level Difference	m	15			20
Pipe Sizes (Liquid/Gas) (mm)		6.4 / 9.5			6.4 / 12.7
Outdoor Operating Range (Cool/Heat)		10 to 46 / -15 to 18
Indoor Sound Level (H/SL)	Cool (kW)	38 / 20	39 / 24	44 / 27	51 / 27	52 / 33
Indoor Sound Level (H/SL)	Heat (kW)	38 / 19	42 / 19	48 / 29	51 / 29	52 / 34
Outdoor Sound Level (H/SL)	Cool (kW)	47 / 44	49 / 45			54 / 45
Outdoor Sound Level (H/SL)	Heat (kW)	48 / 45	49 / 45	51 / 45		55 / 45
ODU Sound Power Level (H/SL)	Cool (kW)	59	61			66
ODU Sound Power Level (H/SL)	Heat (kW)	60	61	63		67
