Best Prices Daikin Premium FDYA160A9-C2V 16.0kW Air Con Low Cost Installation Brisbane Sydney

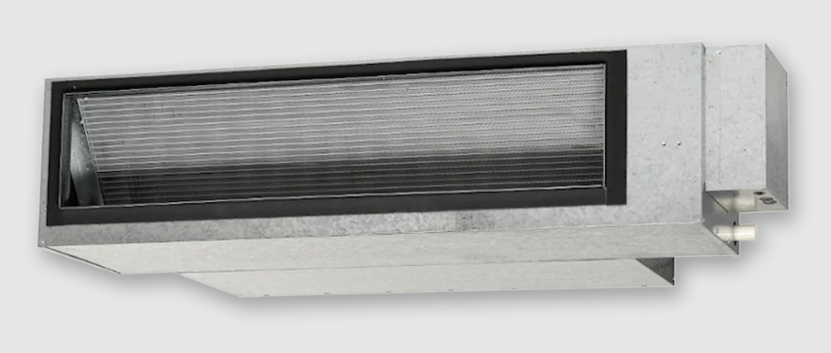

Daikin Premium FDYA160A9-C2V 16.0kW Ducted 1 Phase Air Conditioning System

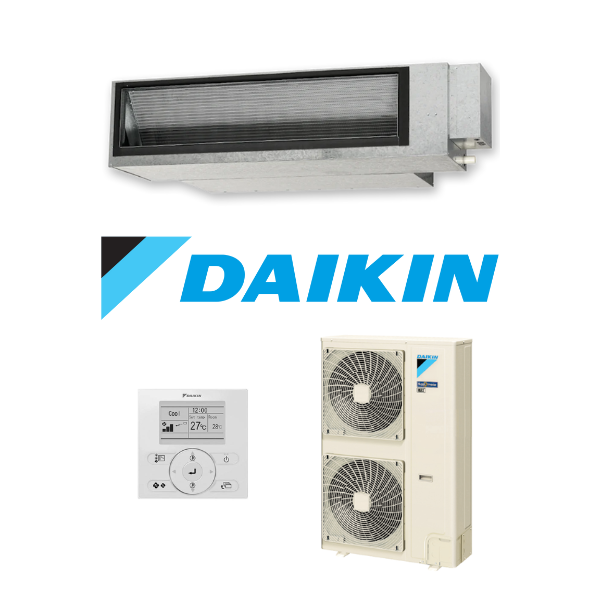

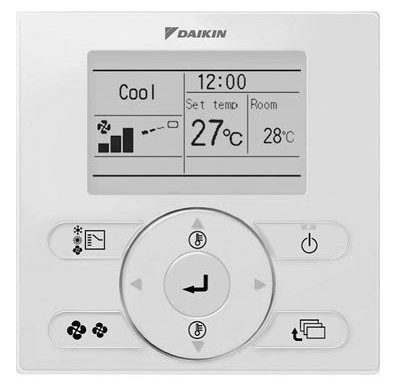

Daikin Premium FDYA160A9-C2V 16.0kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit RZAS160C2V1

The Daikin Premium Inverter offers exceptional comfort quickly and efficiently. It is designed to provide excellent energy efficiency with flexible design options. The Premium Inverter Ducted range is perfect for discreetly providing air-conditioned comfort across your entire home.

Key Features:

Industry leading energy performance - Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.
Night Quite Mode - Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
Demand Respone Enabled Ducted (DRED) - A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
R22 backwards compatibility - Offers an economical and user-friendly enhancement option for an existing R22 ducted system, maintaining the field piping (excluding Heating Focus models).
Australian Made - The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.

(FDYA160A9-C2V)

System Names	FDYA71A9-C2V	FDYA85A9-C2V	FDYA100A9-C2V	FDYA125A9-C2V	FDYA140A9-C2V	FDYA160A9-C2V
Indoor Unit	FDYA71AV19	FDYA85AV19	FDYA100AV19	FDYA125AV19	FDYA140AV19	FDYA160AV19

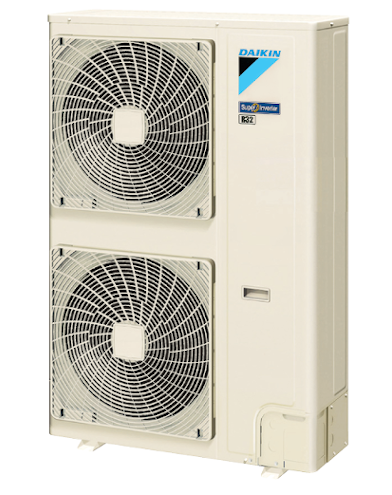

Outdoor Unit	RZAS71C2V1	RZAS85C2V1	RZAS100C2V1	RZAS125C2V1	RZAS140C2V1	RZAS160C2V1
Rated Cooling Capacity (kW)	7.1	8.5	10.0	12.5	14.0	16.0
Rated Heating Capacity (kW)	7.5	10.0	12.5	15.0	16.5	18.0
Power Supply	1 Phase, 220-240V, 50Hz
Power Input (Rated) Cool/Heat (kW)	1.90 / 1.75	2.35 / 2.46	2.61 / 3.13	3.45 / 3.80	3.93 / 4.28	4.85 / 4.65
EER / COP	3.74 / 4.29	3.62 / 4.07	3.83 / 3.99	3.62 / 3.95	3.56 / 3.86	3.30 / 3.87
TCSPF (Residential) Hot/Avg/Cold	5.20 / 4.50 / 4.55	4.99 / 4.40 / 4.45	4.69 / 4.22 / 4.25	4.96 / 4.47 / 4.59	5.00 / 4.54 / 4.67	4.77 / 4.37 / 4.55
HSPF (Residential) Hot/Avg/Cold	4.79 / 4.34 / 3.86	4.43 / 4.04 / 3.60	4.43 / 4.07 / 3.62	4.72 / 4.08 / 3.45	5.01 / 4.12 / 3.41	4.55 / 3.97 / 3.41
Airflow Rate (Nominal/Max) (L/s)	425 / 566	580 / 600	680 / 800	755 / 840	900 / 1000	950 / 1120
Indoor Sound Level @1.5m Cool/Heat (dBA)	37.3 / 40.5	42.0 / 42.5	42.3 / 45.0	44.8 / 46.2	45.9 / 47.4	47.2 / 49.6
Piping Length (m)	75
Indoor Fan Speeds	H / M / L
Indoor Unit Dimensions (H x W x D) (mm)	300 x 1210 x 900			360 x 1520 x 935	400 x 1505 x 980
Outdoor Unit Dimension (H x W x D) (mm)	990 x 940 x 320		1430 x 940 x 320
Indoor Unit Weight (kg)	40	41	46	56	60
Outdoor Unit Weight (kg)	69	78	93			99
Compressor Type	Hermetically Sealed Swing Type
Refrigerant	R32
Pipe Sizes (Liquid/Gas) (mm)	9.52 / 15.88
Supply Air Opening (mm) HxW	185 x 852			245 x 1152	295 x 1152
Return Air Opening (mm)	1 x 400 (Oval)		2 x 350 (Oval)	2 x 400 (Oval)
Outdoor Operating Range Cool/Heat (C)	-5 to 50 / -15 to 16
EPA Sound Power Level (dBA)	67	71	70	71	73	75
Outdoor Sound Level @1m Cool/Heat (dBA)	48 / 50	52 / 53	51 / 53	52 / 54	54 / 56	56 / 58
