Daikin Slimline FBA71B-CCV 7.1kW 1 Phase Ducted System

FBA71BVMA/RZAC71CV1 Slimline Ducted Air Conditioner

$3,716.00 Incl GST
$3,378.18 Excl GST
Sold Out


This product has been superseded by Daikin FBA71BA-CC2V

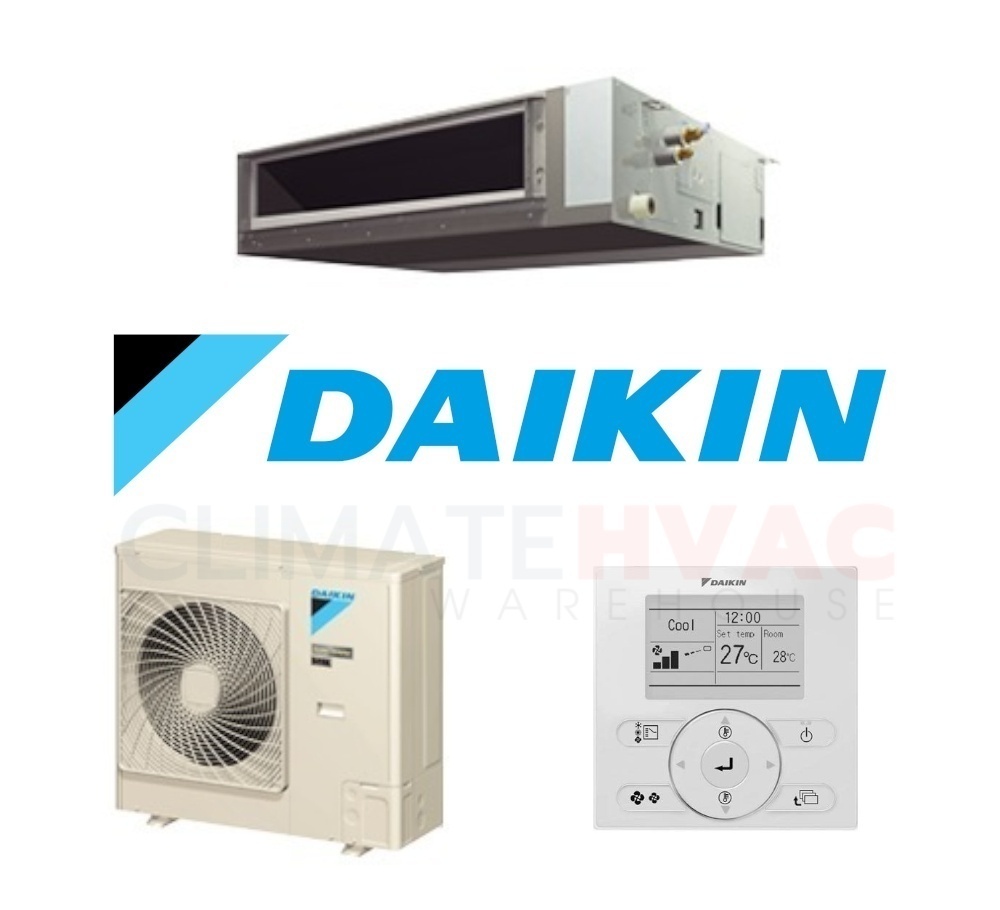

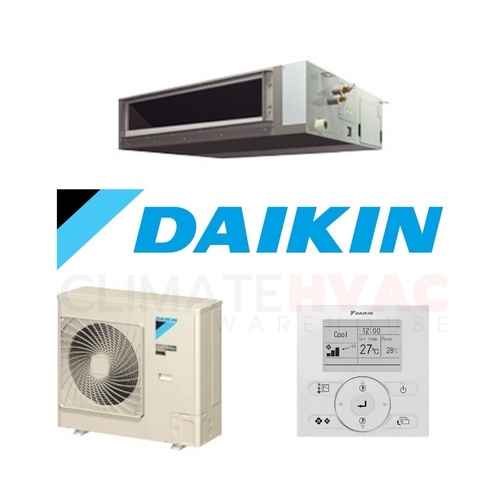

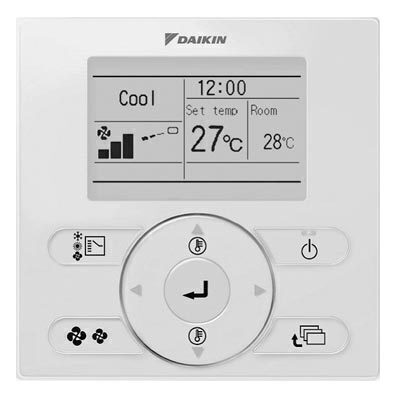

Daikin Slimline FBA71B-CCV 7.1kW 1 Phase Ducted System - Includes BRC1E63 Wired Controller & Outdoor Unit RZAC71CV1

Ducted Air Conditioner - Inverter Reverse Cycle System

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design.



Features:

  • Heating or cooling multiple rooms
  • Narrow ceiling spaces
  • Bedroom air conditioning


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FBA71B-CCV)

Indoor Unit FBA71BVMA
Outdoor Unit RZAC71CV1
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 7.1
Heat (kW) 8.0
Capacity Range
Cool (kW) 1.8 ~ 8.0
Heat (kW) 2.0 ~ 9.0
Power Input (Rated)
Cool (kW) 2.15
Heat (kW) 2.30
EER/COP 3.30 / 3.47
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.19 / 3.69 / 3.71
HSPF (Hot/Average/Cold) 3.96 / 3.68 / 3.42
Drain Size (mm) ID 25 / OD 32
Duct Sizes
Supply (mm) 176 x 792 (Flange)
Return (mm) 208 x 952 (Flange)
Dimensions (HxWxD)
Indoor (mm) 245 x 1000 x 800
Outdoor (mm) 595 x 845 x 300
Weight
Indoor (kg) 37
Outdoor (kg) 45
Refrigerant Type R32
Max Pipe Length (m) 50
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Connection Type Flare
Ambient Temperature
Cool (°C) -5 ~ 46
Heat (°C) -15 ~ 16
Indoor Airflow Rate
(l/s) 383
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 38
Heat (dBA) 38
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 48
Heat (dBA) 51
Outdoor EPA Sound Power Level (H)
(dBA) 68
SKU FBA71B-CCV
Brand Daikin
Shipping Weight 82.0000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
