Daikin Standard FCA125C-CC2V 12.5kW Cassette 1 Phase Air Conditioning System
FCA125CVMA / RZAC125C2V1 Daikin Standard Cassette
$5,160.00 Excl GST

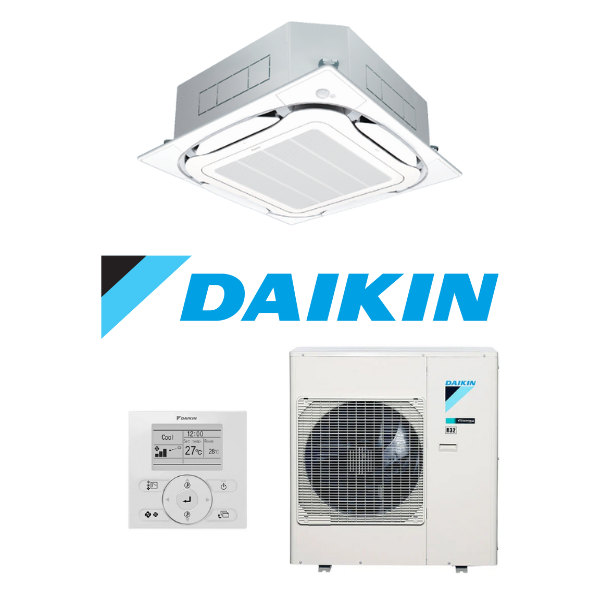

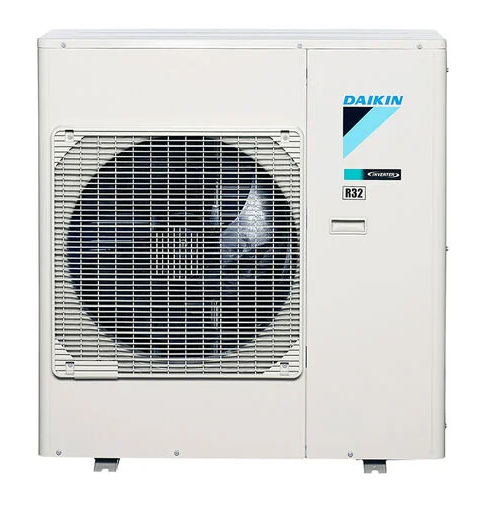

Daikin FCA125C-CC2V 12.5kW Standard R32 Single Phase Cassette - Includes BRC1E63 Wired Controller & Outdoor Unit RZAC125C2V1
The SkyAir Round Flow Cassette utilises 360 degree airflow distribution to ensure even temperatures throughout the space, this provides a comfortable environment for building occupants all year round while also remaining discrete.
The Round Flow Cassette can be either paired with our Premium Inverter (RZAV) or Inverter (RZAC) condensers. The former offering building owners substantial operating efficiencies to help minimise operating costs. R22 retrofit capability is available for both condenser types allowing for a simplified cost effective replacement solution.
Key Features:
- Individual Airflow Direction Control
- Daikin Sensing Technology - Dual Sensors & Auto Airflow Functions
- Comfort and Energy Saving Preventing Overcooling / Overheating
- Quick and Easy Installation
- Easy Maintenance
- R32 Gas
(FCA125C-CC2V)
| System Names | FCA71CA-CC2V | FCA85C-CC2V | FCA100C-CC2V | FCA125C-CC2V | FCA140C-CF2V |
|---|---|---|---|---|---|
| Indoor Unit | FCA71CAVMA | FCA85CVMA | FCA100CVMA | FCA125CVMA | FCA140CVMA |
| Outdoor Unit | RZAC71C2V1 | RZAC85C2V1 | RZAC100C2V1 | RZAC125C2V1 | RZAC140F2V1 |
| Rated Cooling Capacity (kW) | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 |
| Rated Heating Capacity (kW) | 8.0 | 10.0 | 11.2 | 14.0 | 16.0 |
| Power Supply | 1 Phase, 220-240V, 50Hz | ||||
| Power Consumption (Cool/Heat) (kW) | 1.83 / 1.95 | 2.25 / 2.42 | 2.67 / 2.74 | 3.53 / 3.63 | 4.18 / 4.20 |
| EER / COP (kW/kW) | 3.88 / 4.10 | 3.78 / 4.13 | 3.75 / 4.09 | 3.54 / 3.86 | 3.35 / 3.81 |
| TCSPF Cooling (Commercial/Residential) - Hot | 5.50 / 5.06 | 5.41 / 5.00 | 5.23 / 4.86 | 5.30 / 4.91 | 5.28 / 4.86 |
| TCSPF Cooling (Commercial/Residential) - Average | 5.43 / 4.36 | 5.41 / 4.43 | 5.23 / 4.36 | 5.38 / 4.46 | 5.75 / 4.53 |
| TCSPF Cooling (Commercial/Residential) - Cold | 5.73 / 4.38 | 5.73 / 4.49 | 5.23 / 4.43 | 5.74 / 4.60 | 6.22 / 4.68 |
| HSPF Heating (Commercial/Residential) - Hot | 5.10 / 5.09 | 4.55 / 4.56 | 4.56 / 4.56 | 4.66 / 4.66 | 5.49 / 5.35 |
| HSPF Heating (Commercial/Residential) - Average | 4.78 / 4.56 | 4.35 / 4.24 | 4.34 / 4.22 | 4.40 / 4.22 | 4.99 / 4.48 |
| HSPF Heating (Commercial/Residential) - Cold | 4.31 / 4.03 | 4.01 / 3.84 | 3.98 / 3.79 | 4.03 / 3.80 | 4.43 / 3.95 |
| Indoor Decoration Panel Colour | Fresh White | ||||
| Indoor Airflow Rate (H/HM/M/ML/L) (l/s) | 383 / 350 / 308 / 267 / 225 | 575 / 517 / 458 / 400 / 333 | 608 / 558 / 500 / 442 / 383 | ||
| Indoor Sound Pressure Level (H/HM/M/ML/L) (dBA) | 37.0 / 36.0 / 34.0 / 31.0 / 27.5 | 45.0 / 42.0 / 39.0 / 36.5 / 34.0 | 46.0 / 43.5 / 41.0 / 38.5 / 36.0 | ||
| Outdoor Unit Colour | Ivory White | ||||
| Compressor Type | Hermatically Sealed Swing Type | ||||
| Compressor Motor Output (kW) | 1.30 | 2.40 | 3.30 | ||
| R32 Refrigerant Amount/Charge (kg) | 1.70 (Charged for 30m) | 2.60 (Charged for 30m) | 2.90 (Charged for 30m) | 3.70 (Charged for 30m) | |
| Outdoor Sound Pressure Level Cool/Heat (dBA) | 48 / 51 | 51 / 54 | 52 / 54 | 53 / 56 | 53 / 54 |
| Outdoor Sound Pressure Level (Night Quiet Mode) (dBA) | 44 | 47 | 48 | 49 | |
| Outdoor Sound Power Level (dBA) | 68 | 70 | 71 | - | - |
| Indoor Operating Range Cool/Heat (C) | 14 to 25 / 15 to 27 | ||||
| Outdoor Operating Range Cool/Heat (C) | -5 to 46 / -15 to 15.5 | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 9.5 / 15.9 | ||||
| Max. Interunit Piping Length (m) | 50 (Equivalent Length 70) | ||||
| Max. Installation Height Difference (m) | 30 | ||||
| Heat Insulation | Both Liquid and Gas Piping | ||||
| Indoor Unit Dimensions (HxWxD) (mm) | 256 x 840 x 840 | 298 x 840 x 840 | |||
| Indoor Decoration Panel Dimensions (HxWxD) (mm) | 50 x 950 x 950 | ||||
| Outdoor Unit Dimension (HxWxD) (mm) | 595 x 840 x 300 | 990 x 940 x 320 | 870 x 1100 x 460 | ||
| Indoor Unit Weight (kg) | 22 | 26 | |||
| Indoor Decoration Panel Weight (kg) | 5.5 | ||||
| Outdoor Unit Weight (kg) | 45 | 69 | 78 | 95 | |
| SKU | FCA125C-CC2V |
| Brand | Daikin |
| Shipping Weight | 109.5000kg |
| Shipping Cubic | 0.553186000m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
