Rinnai TX Series HSNRTX60 6.0kW Wall Split Air Conditioning System with Wi-Fi
Rinnai Wall Split Air Conditioner (Wi-Fi)
$1,221.82 Excl GST

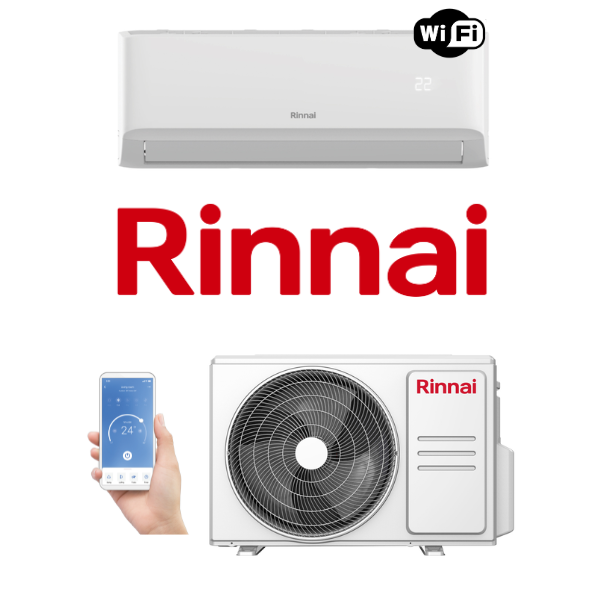

Rinnai TX Series HSNRTX60 6.0kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit HONRTX60 and Wireless Controller
High-performance air conditioning for Australian homes. Experience powerful year-round comfort in larger living spaces with the TX Series 6.0kW Inverter Split System, featuring smart controls, HEPA filtration and efficient performance.
Features:
- Cleaner, Healther Air: Integrated HEPA and Cold Catalyst filtration helps create a cleaner indoor environment by reducing airborne contaminants
- Self-Cleaning Air Purity: Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
- Long-Lasting Protection: Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
- Ideal for larger living areas and open-plan spaces (27-40m2).
- Eco-Friendly R32 Refrigerant with energy-saving inverter technology.
- Extensive range of features including 3D Airflow, Turbo+, Follow Me and Demand Control.
- Humidity Control
- Quiet Operation
- Wi-Fi Control
(HSNRTX60)
| System | HSNRTX25 | HSNRTX35 | HSNRTX50 | HSNRTX60 | HSNRTX70 | HSNRTX80 | HSNRTX90 | |
|---|---|---|---|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 6.0 | 7.0 | 7.6 | 9.0 | |
| Rated Heating Capacity (kW) | 2.8 | 4.0 | 5.5 | 6.5 | 7.5 | 8.2 | 9.5 | |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||||||
| Recommended Circuit Breaker (A) | 16 | 20 | 25 | |||||
| Connectivity | Wi-Fi Enabled | |||||||
| Demand Response Enabling Device | DRED Enabled | |||||||
| Cooling Capacity Range (kW) | 0.9 - 3.45 | 1.05 - 3.9 | 2.3 - 6.2 | 2.91 - 8.23 | 3.03 - 8.23 | 3.22 - 9.38 | ||
| Heating Capacity Range (kW) | 1.1 - 3.75 | 1.2 - 4.1 | 2.4 - 6.4 | 2.38 - 8.86 | 2.4 - 8.86 | 2.78 - 9.96 | ||
| Rated Power Input Cool/Heat (W) | 540 / 571 | 850 / 930 | 1338 / 1314 | 1735 / 1702 | 2010 / 1945 | 2274 / 2285 | 2568 / 2464 | |
| Rated Current Cool/Heat(A) | 2.42 / 2.56 | 3.8 / 4.1 | 5.92 / 5.79 | 7.73 / 7.43 | 9.1 / 8.7 | 10.3 / 10.2 | 11.6 / 11.2 | |
| AEER/ACOP (W/W) | 4.61 / 4.87 | 4.1 / 4.29 | 3.73 / 4.21 | 3.45 / 3.81 | 3.48 / 3.85 | 3.36 / 3.58 | 3.5 / 3.84 | |
| TCSPF: Hot/Avg/Cold (Cool) | 7.06/6.58/6.89 | 6.53/6.19/6.51 | 6.0/5.68/6.01 | 5.51/5.31/5.62 | 5.61/5.34/5.65 | 5.23/5.03/5.33 | 5.76/5.5/5.9 | |
| HSPF: Hot/Avg/Cold (Heat) | 5.44/5.01/4.59 | 5.38/4.69/4.2 | 4.86/4.37/3.81 | 4.89/4.09/3.45 | 4.88/4.26/3.76 | 4.91/4.14/3.6 | 5.24/4.33/3.6 | |
| Star Rating: Hot/Mixed/Cold (Cool) | 5.5 / 5 / 5 | 5 / 4.5 / 5 | 4.5 / 4 / 4.5 | 4 / 3.5 / 4 | 3.5 / 3.5 / 3.5 | 4 / 4 / 4 | ||
| Star Rating: Hot/Mixed/Cold (Heat) | 3.5 / 3.5 / 3 | 3.5 / 3 / 2.5 | 3 / 2.5 / 2 | 3 / 2.5 / 1.5 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | ||
| Max Input Power Cool/Heat (W) | 2300 | 3400 | 4050 | 4100 | ||||
| Max Input Current Cool/Heat (A) | 10.5 | 10 | 15.5 | 17.5 | 18 | |||
|
Suitable Area Coverage up to 2.6m Ins Ceiling (m2) |
11-17 | 16-23 | 23-33 | 27-40 | 32-47 | 36-53 | ||
| Indoor Unit | HINRTX25 | HINRTX35 | HINRTX50 | HINRTX60 | HINRTX70 | HINRTX80 | HINRTX90 | |
| Air Flow (Turbo/H/M/L/Min) (L/s) | 175/139/100/83/50 | 183/147/106/86/56 | 264/222/167/139/125 | 337/293/190/140/137 | 375/308/211/156/97 | |||
| Moisture Removal (L/h) | 1.3 | 1.7 | 2.5 | 3.4 | 3.2 | |||
| Sound Power Level dB(A) | 57 | 59 | 60.5 | 59.6 | 65.1 | 64.8 | 65.2 | |
|
Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A) |
45.5/39/32/25/20 | 45/39.5/33/26/19.5 | 48.5/45.5/38/30.5/20 | 52/50/41.5/27/21 | 54.5/52/45.5/34.5/22.5 | |||
| Unit Dimensions (HxWxD) (mm) | 295x802x200 | 321x971x228 | 337x1082x234 | 362x1259x283 | ||||
| Packing Dimensions (HxWxD) (mm) | 375x875x288 | 405x1045x308 | 415x1155x318 | 450x1340x383 | ||||
| Net/Gross Weight (kg) | 8.6 / 11.1 | 11.0 / 14.6 | 13.2 / 17.1 | 19.0 / 24.7 | ||||
| Operating Range Cool/Heat (C) | 16 to 32 / 0 to 30 | |||||||
| Outdoor Unit | HONRTX26 | HONRTX35 | HONRTX50 | HONRTX60 | HONRTX70 | HONRTX80 | HONRTX90 | |
| Sound Power Level dB(A) | 59 | 62.9 | 67.4 | 67.1 | 69.6 | 69.1 | 68.3 | |
| Sound Pressure Level @1m dB(A) | 54 | 56 | 58 | 61 | 59.5 | |||
| Unit Dimensions (HxWxD) (mm) | 555x765x303 | 673x890x342 | 810x946x410 | |||||
| Packing Dimensions (HxWxD) (mm) | 610x887x337 | 750x1030x438 | 965x1090x500 | |||||
| Net/Gross Weight (kg) | 24.7 / 27.0 | 25.8 / 28.0 | 38.6 / 42.1 | 43.8 / 47.2 | 60.3 / 64.6 | |||
| Refrigerant Type/Amount (kg) | R32 / 0.62 | R32 / 0.85 | R32 / 1.26 | R32 / 1.4 | R32 / 2.2 | |||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.9 | 9.52 / 15.9 | ||||
| Maximum Pipe Length (m) | 25 | 30 | 50 | |||||
| Chargeless Length (m) | 15 | |||||||
| Extra Charge for Lengths >10m (g/m) | 12 | 24 | ||||||
| Maximum Vertical Separation (m) | 10 | 20 | 25 | |||||
| Ambient Temp Limits Cool/Heat (C) | -15 to 50 / -15 to 24 | |||||||
| SKU | HSNRTX60 |
| Brand | Rinnai |
| Shipping Weight | 56.7000kg |
| Shipping Cubic | 0.468708000m3 |
| Unit Of Measure | ea |
