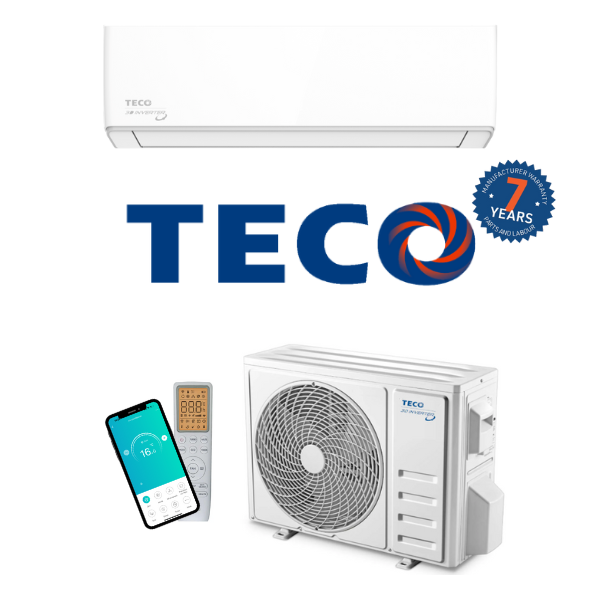

TECO TWS-TSO88H3DVKT 8.8kW Wall Split Wifi Air Conditioning System
TWS88H3DVKT / TSO88H3DVKT TECO Wall Split
$1,374.54 Excl GST
TECO Platinum 3D TWS-TSO88H3DVKT 8.8kW Wall Split System (Built-In Wi-Fi) - Inlcudes Outdoor Unit and Wireless Controller
The spectacular Platinum 3D range is the latest and most efficient range of DC inverter split systems that TECO have to offer. Engineered to perform in some of the harshest Australian conditions, the Platinum 3D range is a smart choice when designing for energy reductions at an affordable price. Registered and approved under the latest determination of the Minimum Energy Performance standards, the Platinum 3D range offers high efficiency compared to other TECO models, regardless of the climate zone you reside in.
Key Features:
- Exceptional Efficiency performance
- Gold Fin Protection

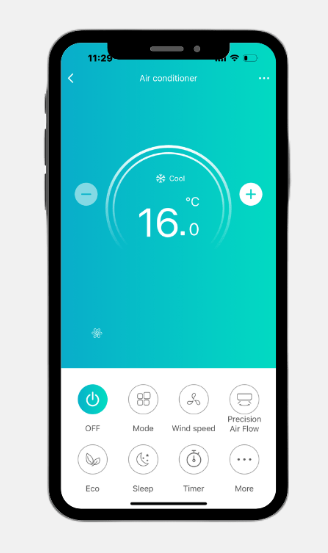

- Built-In Wi Fi Control
- Catechin Filters
- High Density Filters
- I-FEEL Follow Me Mode
- Self-Clean Indoor
- Anti-Mildew Function
(TWS-TSO88H3DVKT)
| System Names | TWS-TSO26H3DVKT | TWS-TSO35H3DVKT | TWS-TSO52H3DVKT | TWS-TSO72H3DVKT | TWS-TSO88H3DVKT |
|---|---|---|---|---|---|

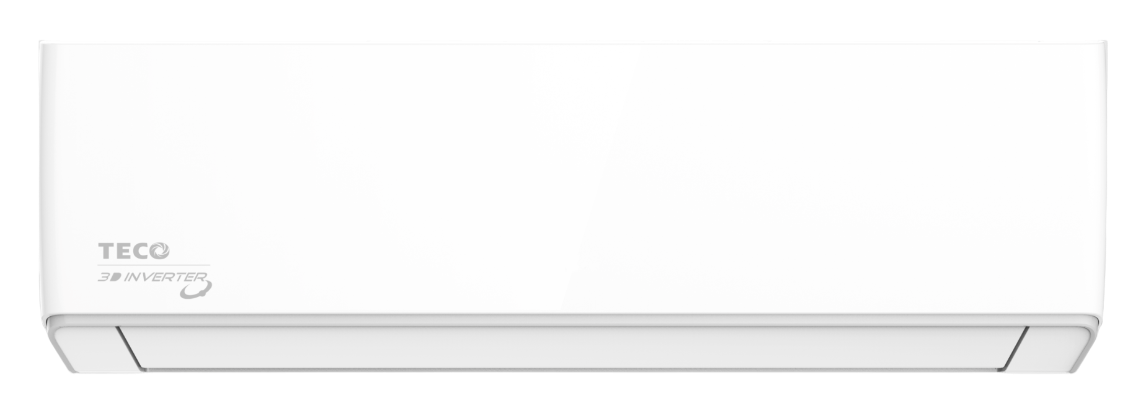

| Indoor Unit | TWS26H3DVKT | TWS35H3DVKT | TWS52H3DVKT | TWS72H3DVKT | TWS88H3DVKT |

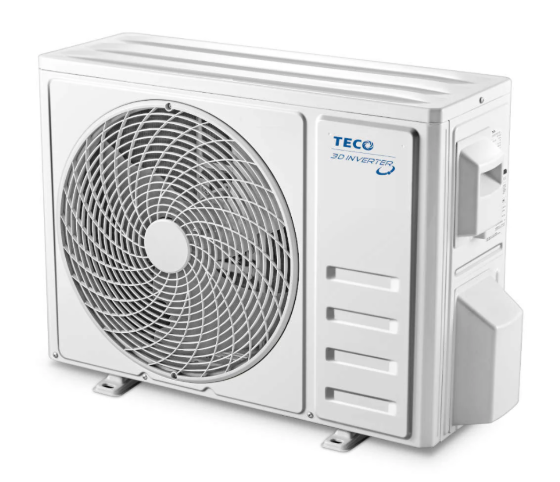

| Outdoor Unit | TSO26H3DVKT | TSO35H3DVKT | TSO52H3DVKT | TSO72H3DVKT | TSO88H3DVKT |
| Rated Cooling Capacity (kW) | 2.64 | 3.5 | 5.2 | 7.0 | 8.8 |
| Rated Heating Capacity (kW) | 4.05 | 4.5 | 5.2 | 7.0 | 8.8 |
| Running Current Rated/Min-Max (A) - Cool | 4.3 (1.3 - 6.6) | 3.6 (1.5 - 7.8) | 6.5 (1.5 - 12.0) | 8.8 (1.5 - 14.5) | 10.9 (1.8 - 15.5) |
| Running Current Rated/Min-Max (A) - Heat | 4.6 (1.3 - 7.4) | 4.6 (1.5 - 8.2) | 5.3 (1.5 - 13.0) | 9.1 (1.5 - 15.0) | 9.9 (1.8 - 15.5) |
| Power Input Rated/Min-Max (W) - Cool | 595 (290 - 1450) | 800 (290 - 1400) | 1500 (400 - 1850) | 2010 (350 - 2600) | 2500 (350 - 3100) |
| Power Input Rated/Min-Max (W) - Heat | 985 (290 - 1580) | 1070 (290 - 1990) | 1200 (400 - 1800) | 2090 (350 - 2500) | 2250 (350 - 3340) |
| AEER/ACOP | 4.34 / 4.06 | 4.30 / 4.15 | 3.42 / 4.27 | 3.45 / 3.32 | 3.49 / 3.88 |
| Star Rating (Zone) Hot/Med/Cold - Cool | 9.5 / 5.5 / 6.0 | 5.5 / 4.5 / 4.5 | 3.5 / 3.0 / 3.0 | 3.0 / 3.0 / 3.0 | |
| Star Rating (Zone) Hot/Med/Cold - Heat | 3.5 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | 3.0 / 2.5 / 1.5 | 3.0 / 2.5 / 2.0 | |
| Moisture Removal (L/Hr) | 0.8 | 1.1 | 1.8 | 2.4 | 3.2 |
| Indoor Fan Speeds | 8 | ||||
| Indoor Air Flow (Max) Cool/Heat (L/s) | 172 / 172 | 161 / 172 | 305 / 305 | 375 / 375 | |
| Compressor Type | Rotary | ||||
| Indoor/Outdoor Max Sound Power Level (dBA) | 47 / 58 | 48 / 60 | 52 / 62 | 53 / 64 | 54 / 64 |
| Refrigerant Type | R32 | ||||
| Pipe Sizes Liquid/Gas (mm) | 6.35 + 9.52 | 6.35 + 12.7 | 6.35 / 15.9 | ||
| Max Pipe Length (m) | 15 | ||||
| Max Height Difference (m) | 10 | ||||
| Pipe Connection Method | Flare | ||||
| Indoor Unit Dimensions (H x W x D) (mm) | 292 x 811 x 203 | 315 x 1010 x 220 | 360 x 1191 x 258 | ||
| Outdoor Unit Dimension (H x W x D) (mm) | 549 x 810 x 305 | 602 x 863 x 349 | 602 x 927 x 380 | 803 x 978 x 421 | |
| Indoor Unit Weight (kg) | 10 | 10 | 13 | 13.5 | 18 |
| Outdoor Unit Weight (kg) | 22 | 26 | 32 | 37 | 46.5 |
| Ambient Temperature (C) | -15 / 50 | -15 / 52 | |||
| SKU | TWS-TSO88H3DVKT |
| Brand | TECO |
| Shipping Weight | 64.5000kg |
| Shipping Cubic | 0.441246000m3 |
| Unit Of Measure | ea |
TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
