Panasonic H Series CS/CU-HZ80YKR 8.0kW Ultra Premium Wall Split Wifi Air Conditioning System
CS-HZ80YKR / CU-HZ80YKR Panasonic Premium Wall Split
$2,845.45 Excl GST

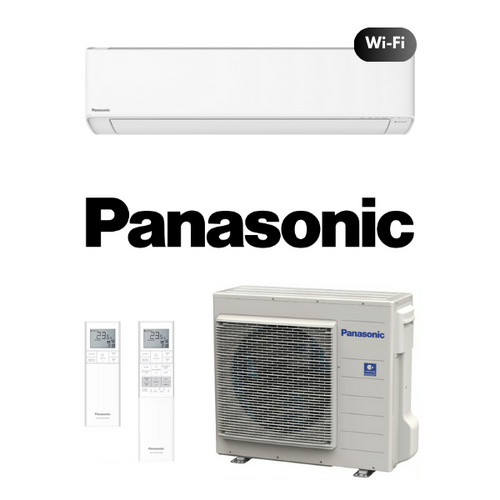

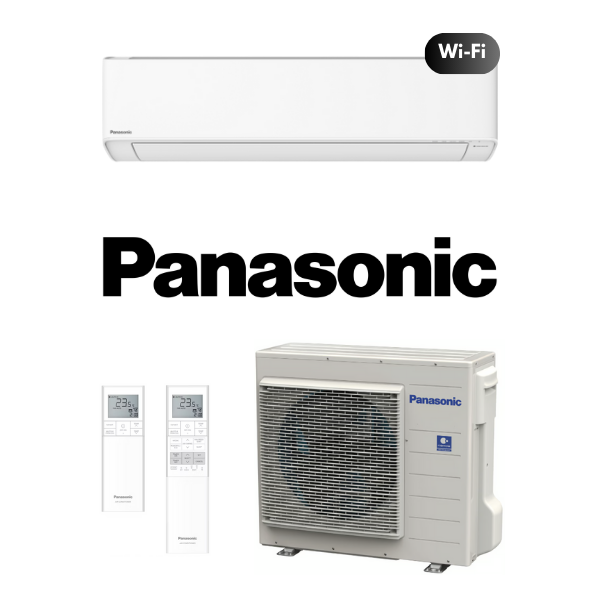

Panasonic CS/CU-HZ80YKR 8.0kW HZ Series Ultra Premium Wall Split System (Built-In Wi-Fi) - Includes Outdoor Unit and Wireless Controller
Panasonic Ultra Premium Reverse Cycle Inverter HZ Series (YKR) offers both cooling and heating systems to efficiently cool and heat your homes for all-year comfort. It is also equipped with nanoe™ X technology which effectively inhibits adhered and airborne pollutants, and reduces odours. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.
Key Features:
- iAUTO-X
- Humidity Sensor
- ECO Mode with A.I
- Inverter Control
- Quiet Mode
- Soft Dry Operation Mode
- Personal Airflow Creation
- nanoe X & nanoe G
- Odour Removing Function

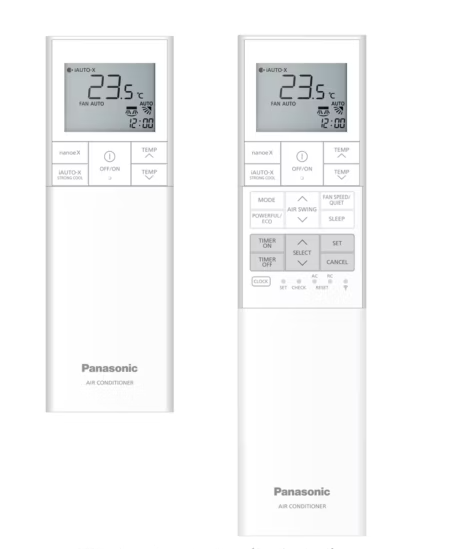

- LCD Wireless Remote Conrol Included
- Built-In WiFi
- Blue Fin Condenser
- Self-Diagnostic Function
(CSCU-HZ80YKR)
| System Name | CS/CU-HZ25YKR | CS/CU-HZ35YKR | CS/CU-HZ50YKR | CS/CU-HZ71YKR | CS/CU-HZ80YKR |
|---|---|---|---|---|---|
| Indoor Unit | CS-HZ25YKR | CS-HZ35YKR | CS-HZ50YKR | CS-HZ71YKR | CS-HZ80YKR |
| Outdoor Unit | CU-HZ25YKR | CU-HZ35YKR | CU-HZ50YKR | CU-HZ71YKR | CU-HZ80YKR |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | ||||
| Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 7.1 | 8.0 |
| Heating Capacity (kW) | 3.2 | 4.1 | 6.0 | 8.0 | 9.0 |
| EER/COP | 5.10 / 5.16 | 4.49 / 4.71 | 4.07 / 4.48 | 3.68 / 4.26 | 3.35 / 3.85 |
| Refrigerant Type | R32 | ||||
| Indoor Airflow (Cooling / Heating) (L/s) | 208 / 222 | 232 / 250 | 328 / 332 | 352 / 367 | 367 / 377 |
| Dehumid (L/h) | 1.50 | 2.00 | 2.80 | 4.10 | 4.70 |
| Max Pipe Length (m) | 20 | 30 | |||
| Max Elevation Length (m) | 15 | 20 | |||
| Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | ||||
| Indoor Dimensions (HxWxD) (mm) | 295 x 870 x 229 | 295 x 1040 x 244 | |||
| Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 795 x 875 x 320 | ||
| Indoor Weight (kg) | 10 | 12 | 13 | ||
| Outdoor Weight (kg) | 26 | 30 | 35 | 51 | |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | ||
| SKU | CSCU-HZ80YKR |
| Brand | Panasonic |
| Shipping Weight | 64.0000kg |
| Shipping Cubic | 0.297459000m3 |
| Unit Of Measure | ea |
