Fujitsu SET-AUTH18KVLA 5.0kW Compact Cassette Air Conditioning System
AUTH18KVLA / AOTH18KBTA Fujitsu Compact Cassette
$2,088.18 Excl GST

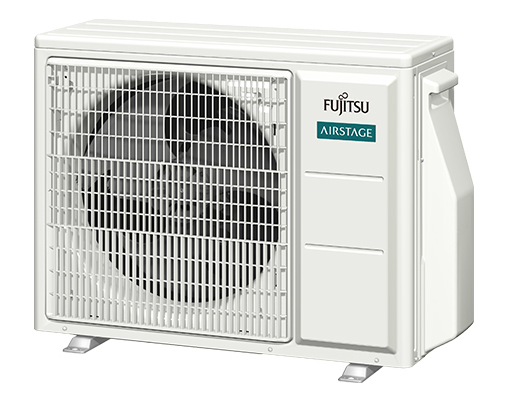

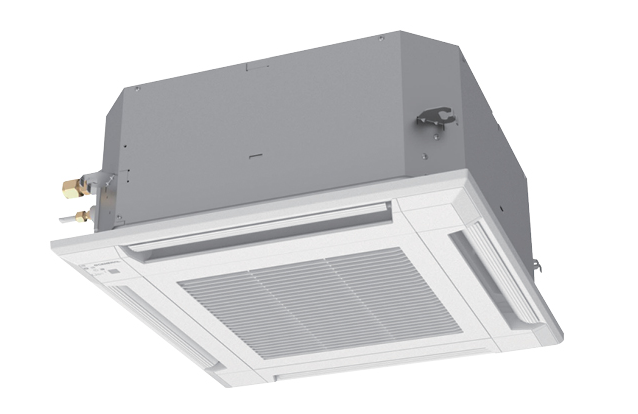

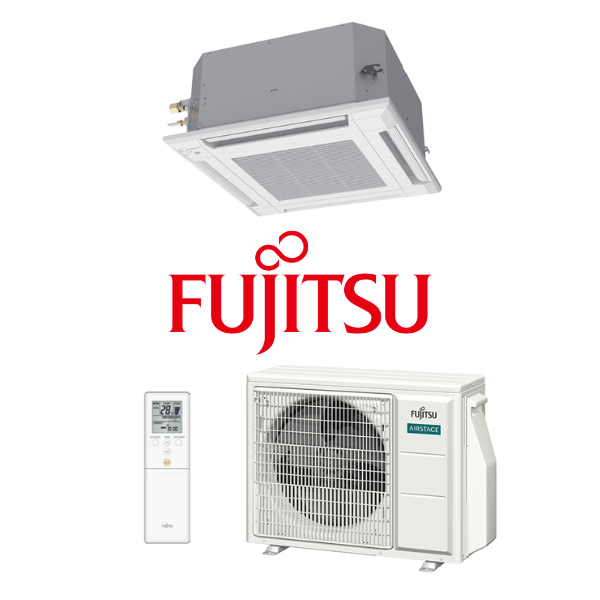

Fujitsu SET-AUTH18KVLA 5.0kW 4-Way Flow Compact Cassette Single Phase Air Conditioner - Includes Outdoor Unit and Wireless Controller
Easy installation and compact design. These compact cassette air conditioner models are extremely discreet with a non-intrusive grille design that sits level with the ceiling. Air can be distributed throughout the space in up to four directions. The 4-way flow cassette provides wide and comfortable airflow to achieve optimum room comfort. This model uses R32 refrigerant, which has a 67 per cent lower ‘Global Warming Potential Factor’ whilst still maintaining the performance of the air conditioner.
Key Features:
- 10oC Heat Operation
- All DC - Electricity Loss is Decreased and Power Consumption Reduced
- Auto Restart & Auto Changeover
- Automatic Louvre
- Blue Fin Heat Exchanger
- Economy Mode
- Mildew Resistant Filter
- On-Off, Sleep & Program Timer
- Removable Intake Grill
- Super Quiet & Low Noise Mode
- Washable Panel
- Automatic Airflow Adjustment
(SET-AUTH18KVLA)
| System | SET-AUTH09KVLA | SET-AUTH12KVLA | SET-AUTH18KVLA | SET-AUTH24KVLA | |
|---|---|---|---|---|---|
| Indoor Unit | AUTH09KVLA | AUTH12KVLA | AUTH18KVLA | AUTH24KVLA | |
| Outdoor Unit | AOTH09KBTA | AOTH12KBTA | AOTH18KBTA | AOTH24KBTB | |
| Cooling Capacity Rated/Min-Max | kW | 2.5 (0.9-3.6) | 3.5 (0.9-4.1) | 5.0 (0.9-5.9) | 7.1 (1.5-7.8) |
| Heating Capacity Rated/Min-Max | 3.2 (0.9-4.5) | 4.0 (0.9-5.1) | 6.0 (0.9-7.1) | 8.0 (1.4-8.4) | |
| Power Supply | 1 Phase, 230V, 50Hz | ||||
| EER/COP | 4.46 / 4.21 | 3.89 / 3.85 | 3.45 / 3.51 | 3.29 / 3.62 | |
| Input Power Rated (Max) Cool/Heat | kW | 0.56(1.13) / 0.76(1.68) | 0.90(1.33) / 1.04(1.88) | 1.45(2.39) / 1.71(2.78) | 2.16(2.72) / 2.21(2.71) |
| Star Rating Cooling Hot/Avg/Cold | 4.0 / 3.5 / 3.5 | 3.5 / 3.0 / 3.0 | 3.0 / 2.5 / 2.5 | 2.5 / 2.5 / 2.5 | |
| Star Rating Heating Hot/Avg/Cold | 3.5 / 3.0 / 2.5 | 3.0 / 2.5 / 2.0 | 3.0 / 2.0 / 1.5 | 3.0 / 2.5 / 2.0 | |
| TCSPF Residential Hot/Avg/Cold | 5.80 / 5.13 / 5.18 | 5.21 / 4.74 / 4.86 | 4.67 / 4.33 / 4.47 | 4.40 / 4.19 / 4.37 | |
| TCSPF Commercial Hot/Avg/Cold | 6.27 / 6.24 / 6.60 | 5.60 / 5.65 / 6.01 | 5.00 / 5.09 / 5.43 | 4.69 / 4.79 / 5.12 | |
| HSPF Residential Hot/Avg/Cold | 5.06 / 4.58 / 4.11 | 4.82 / 4.27 / 3.71 | 4.57 / 3.95 / 3.38 | 4.58 / 4.04 / 3.53 | |
| HSPF Commercial Hot/Avg/Cold | 5.07 / 4.77 / 4.36 | 4.83 / 4.50 / 4.02 | 4.59 / 4.21 / 3.71 | 4.59 / 4.27 / 3.82 | |
| Running Current Cool/Heat | A | 3 / 4 | 4.2 / 5 | 6.2 / 7.3 | 9.6 / 9.7 |
| Moisture Removal | l/hr | 0.7 | 1.2 | 2.0 | 3.4 |
| Indoor Sound Pressure Cooling High/Quiet | dBA | 33 / 28 | 37 / 28 | 38 / 26 | 49 / 30 |
| Indoor Sound Pressure Heating High/Quiet | 34 / 27 | 37 / 28 | 43 / 30 | 50 / 33 | |
| Outdoor Sound Pressure Cool/Heat | 41 / 46 | 47 / 48 | 48 / 49 | 54 / 50 | |
| Outdoor Sound Power | 59 | 61 | 62 | 69 | |
| Indoor Air Circulation (High Fan) Cooling | l/sec | 150 | 169 | 489 | 258 |
| Indoor Air Circulation (High Fan) Heating | 150 | 169 | 189 | 286 | |
| Indoor Unit Dimensions HxWxD | mm | 245 x 570 x 570 | |||
| Outdoor Unit Dimensions HxWxD | 542 x 799 x 290 | 632 x 799 x 290 | 788 x 940 x 320 | ||
| Grill Dimensions HxWxD | 49 x 620 x 620 | ||||
| Indoor Unit Weight | kg | 15 | 16 | ||
| Outdoor Unit Weight | 32 | 36 | 53 | ||
| Grill Weight | 2.3 | ||||
| Piping Connects (Liquid/gas) | mm | 6.35 / 9.52 | 6.35 / 12.7 | ||
| Pipe Length Max(Pre-Charged) | m | 20(15) | 30(20) | ||
| Max Height Difference | 15 | 20 | 30 | ||
| Operation Range Cool/Heat | C | -10 to 46 / -15 to 24 | |||
| Refrigerant Type/Amount | g | R32 / 850 | R32 / 1020 | R32 / 1500 | |
| SKU | SET-AUTH18KVLA |
| Brand | Fujitsu |
| Shipping Weight | 53.3000kg |
| Shipping Cubic | 0.244877000m3 |
| Unit Of Measure | ea |
