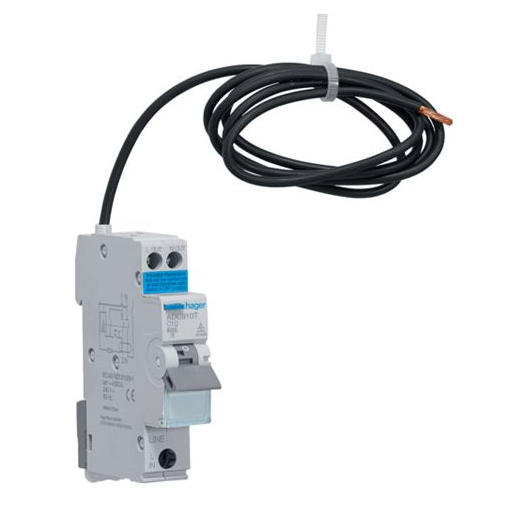

Hager Miniature Circuit Breaker RCBO C Curve Type A 1P 32A 240V 30mA 6kA

Electrical Accessory

$53.00 Incl GST
$48.18 Excl GST
In Stock


Hager Miniature Circuit Breaker RCBO C Curve Type A 1P 32A 240V 30mA 6kA

The Hager 32 Amp Miniature Circuit Breaker & Residual Current Device MCB/RCD RCBO C Curve 1 Pole + Neutral Type A 6kA 30mA by Hager is a high-quality electrical component designed to provide circuit protection. Hager ADC932T features a C Curve, 1 Pole + Neutral, and Type A, with a trip current of 6 kA and a voltage of 240 Volts. It has a 32 Amps Amperage Range and is suitable for various electrical applications. The product comes with a 2 Years warranty period for both commercial and domestic use.

(ADC932T)

Current 20 Amp
Connection Type Screw
Depth 70 mm
Height 92 mm
Width 17.7 mm
Frequency 50 Hz
IP Rating IP20
Interrupt Capacity 6 kA
Modules 1 Module
Mounting Method DIN Rail
Number of Poles 1 Pole
Terminal Connection 1 / 10 sq-mm Flexible / 1 / 16 sq-mm Rigid
Temperature 25 to 80 Deg C
Trip Characteristic C Curve
Voltage 240 Volt
Trip Sensitivity 30 mA
SKU ADC932T
Shipping Weight 5.0000kg
Shipping Width 0.017m
Shipping Height 0.092m
Shipping Length 0.070m
Shipping Cubic 0.000109480m3
Unit Of Measure ea
