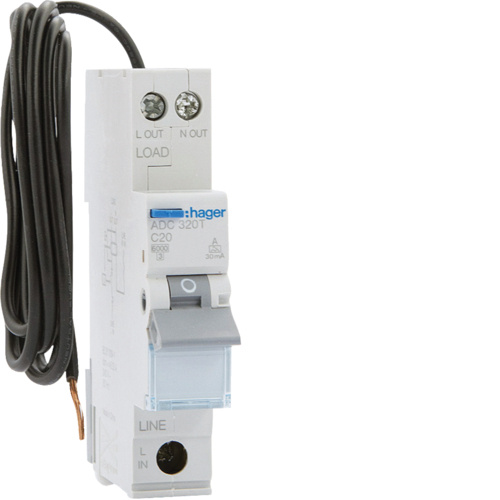

:hager RCBO 1P 6ka C-20A 30mA A Class 1M (ADC320T)

Electrical Accessory

$50.24 Incl GST
$45.67 Excl GST
In Stock


:hager RCBO 1P 6ka C-20A 30mA A Class 1M (ADC320T)

Number of modules: 1
Number of poles: 1 P
Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA
Curve: C
Rated operational voltage Ue: 240 V
Rated current: 20 A
Rated residual operating current: 30 mA
Residual current type: A
Frequency: 50 Hz
Rated insulation voltage: 250 V
Rated impulse withstand voltage: 4000 V
Electric endurance in number of cycles: 16000
Number of mechanical operations: 20000
Height of installed product: 92 mm
Width of installed product: 17,7 mm
Depth of installed product: 70 mm
Standard text: IEC 61009-1 ; AS/NZS 61009-1
Fixing mode: Din-Rail
Withstand not tripping on 8-20 μs wave: 3 kA
Operating temperature: -20 to 70 °C


(HAGADC920T)

Weight 10 kg
Dimensions 25 × 25 × 30 mm
SKU HAGADC920T
Shipping Weight 10.0000kg
Shipping Width 0.025m
Shipping Height 0.030m
Shipping Length 0.025m
Shipping Cubic 0.000019000m3
