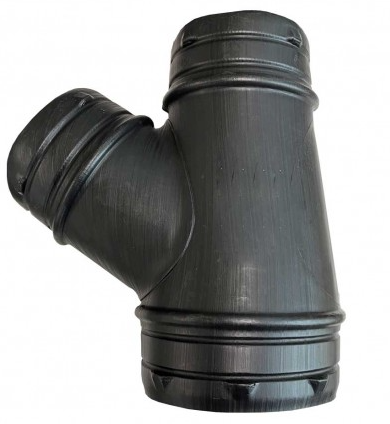

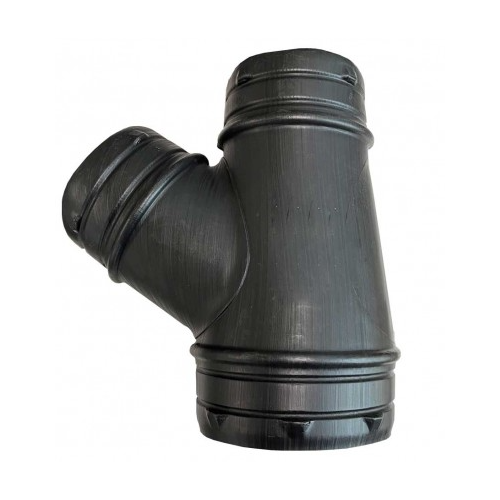

Insulated Branch Take Off Fitting - Choose Your Size
Insulated Combination Fitting
Insulated Branch Take Off Fitting - Choose Your Size
Australian made polyethylene based combination fittings with full internal insulation for all your airflow distribution needs. Rotationally moulded with UV stabilised “Alkatuff” polyethylene, these combination fittings are robust in construction, deliver superior performance in high roof space temperatures, and are convenient for storage and transportation.
Features:
- 100% internal insulation to cover entire fitting including the duct take-offs.
- Stepped take-offs offer multiple combinations to suit varied flexible duct connections.
- Tabs all round the duct take off to ensure a secure flexible duct connection.
- Refer to Specifcations for choosing size.
(INSUL-PLASBTO)
| Code | Inlet Size Inches (mm) | Arm A Inches (mm) | Arm B Inches (mm) |
|---|---|---|---|
| PLASBTO866 | 8" (200) | 6" (150) | 6" (150) |
| PLASBTO888C | 8" (200) | 8" (200) | 8" (200) / 6" (150) |
| PLASBTO1086C | 10" (250) | 8" (200) / 6" (150) | 6" (150) |
| PLASBTO1088V2 | 10" (250) | 8" (200) | 8" (200) |
| PLASBTO10108C | 10" (250) | 10" (250) | 8" (200) / 6" (150) |
| PLASBTO12126C | 12" (300) | 12" (300) / 10" (250) | 6" (150) |
| PLASBTO121210C | 12" (300) | 12" (300) / 10" (250) | 10" (250) / 8" (200) |
| PLASBTO141410C | 14" (350) | 14" (350) / 12" (300) | 10" (250) / 8" (200) |
| PLASBTO141412C | 14" (350) | 14" (350) / 12" (300) | 12" (300) / 10" (250) |
| PLASBTO181610C | 18" (450) / 16" (400) | 16" (400) / 14" (350) / 12" (300) | 10" (250) / 8" (200) |
| PLASBTO181614C | 18" (450) / 16" (400) | 16" (400) / 14" (350) / 12" (300) | 14" (350) / 12" (300) |
| SKU | INSUL-PLASBTO |
| Unit Of Measure | ea |
