LG UHS100SET 10.5kW High Static Single Phase Ducted Air Conditioning System

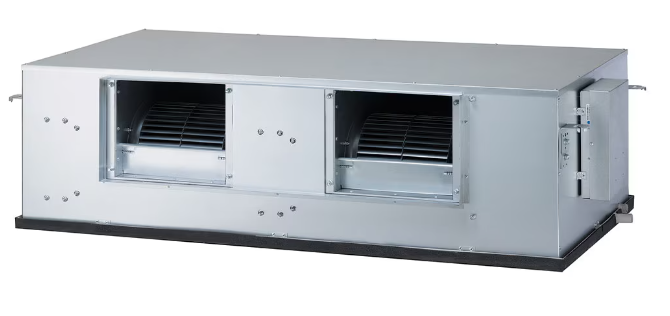

UHN100B7 / UU100WR2 LG High Static Ducted
$2,943.64 Excl GST

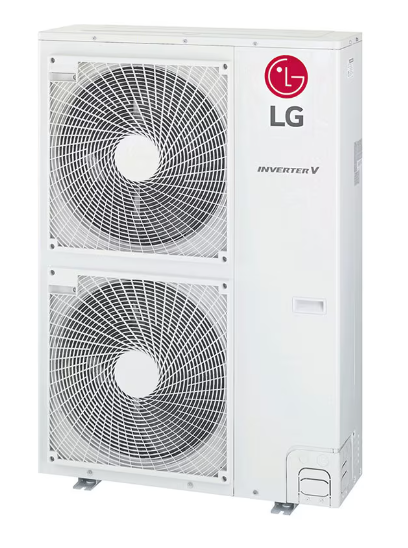

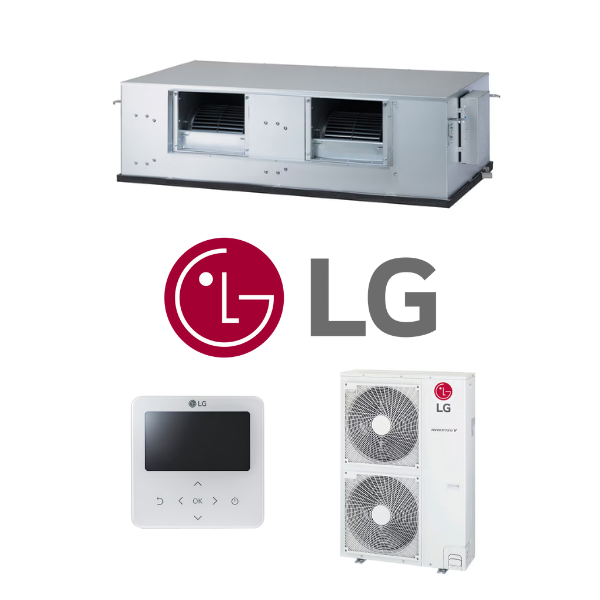

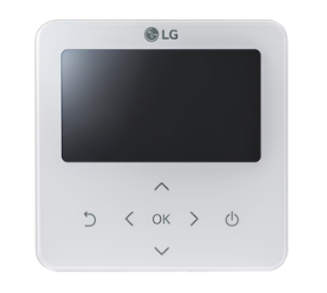

LG UHS100SET 10.5kW Single Phase High Static Ducted Unit - Includes Outdoor Unit UU100WR2 and Wall Controller
Stay cool in the summer, warm in the winter – and comfortable all year long. With a ducted air conditioning unit from LG, you can control the temperature in your space with just the touch of a button. Life is a little more quiet, economical, and comfortable thanks to LG ducted air conditioners. Get the advanced technology you need – and provide your guests, clients and colleagues with the ultimate in comfort.
Key Features:
- R1 Compressor - R1 Compressor is one that combines high-efficiency, low sound characteristics of the scroll and the simple compressing structure of the rotary compressor. This technology enables a highly efficient compact model.
- Night Operation - Night Operation can reduce noise levels at night time by simply setting the dip switch on the PCB of the outdoor unit.
- Auto E.S.P. (External Static Pressure) Setting - E.S.P. control function enables control of air volume easily with a remote controller. The Brushless DC (BLDC) motor can control fan speed and air volume regardless of the external static pressure.Set RPM by simple touch on remote control to change airflow.
- AUTO External Static Pressure + Zone Control (On/Off) - LG’s high static ducted unit does step control (High-Mid-Low Speed) to supply airflow rate to each zone depending on the number of open dampers.
- Corrosion Resistance Black Fin - The black coating with enhanced epoxy resin is applied for strong protection from various corrosive external conditions such as salt contamination and air pollution including fumes from factories.
- Wi-Fi Smart Control Compatible! - The LG ThinQ® App* lets you access and control your air conditioner with your compatible smartphone* even when you're not at home, so you can come home to comfort. (Optional Wi-Fi dongle module sold separately).
(UHS100SET)
System Name | UHS85SET | UHS100SET | UHS125SET | UHN150SET |
---|---|---|---|---|
Indoor Unit | UHN85B7 | UHN100B7 | UNH125B7 | UHN150B7 |
Outdoor Unit | UU85WR2 | UU100WR2 | UU125WR2 | UU150WR2 |
Rated Cooling Capacity (kW) | 8.8 | 10.5 | 12.5 | 15.0 |
Rated Heating Capacity (kW) | 9.4 | 13.0 | 15.0 | 17.0 |
Indoor Unit Dimensions (H x W x D) (mm) | 400 x 1320 x 534 | |||
Outdoor Unit Dimension (H x W x D) (mm) | 834 x 950 x 330 | 1380 x 950 x 330 | ||
Indoor Unit Weight (kg) | 47.6 | 50.6 | ||
Outdoor Unit Weight (kg) | 59 | 89 | ||
Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 |
SKU | UHS100SET |
Brand | LG |
Shipping Weight | 136.6000kg |
Unit Of Measure | ea |
