LG UHS100SPHSET 10.0kW Single Phase Splittable High Efficiency Ducted Air Conditioning System

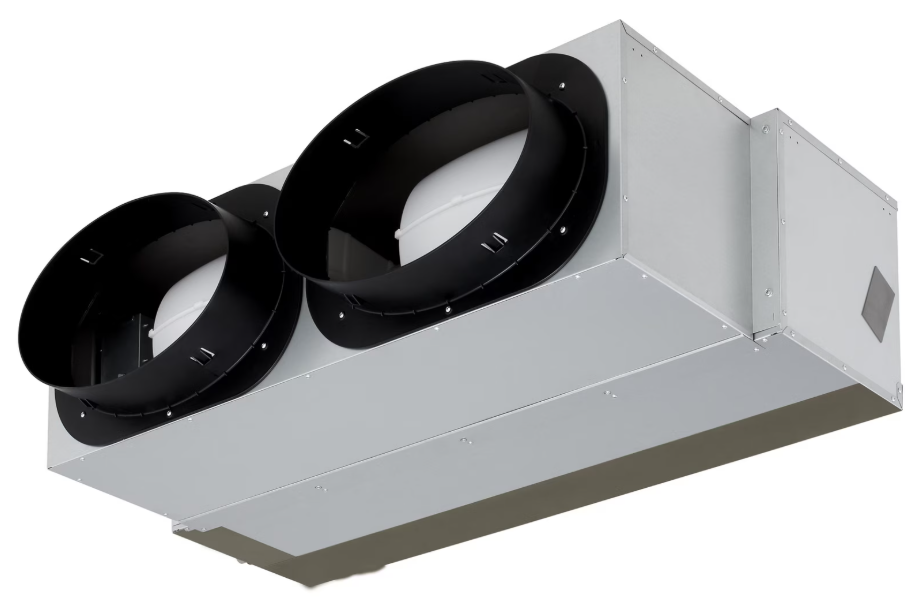

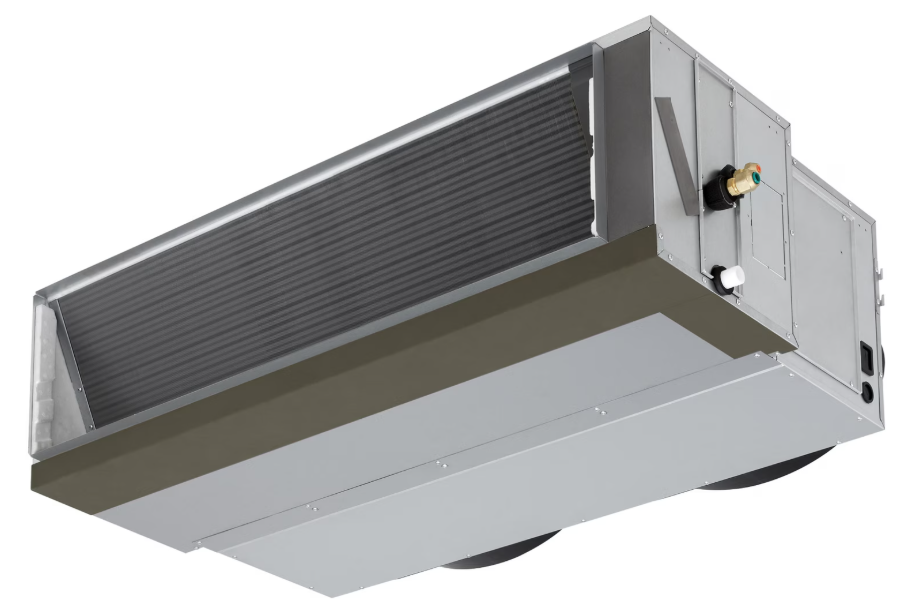

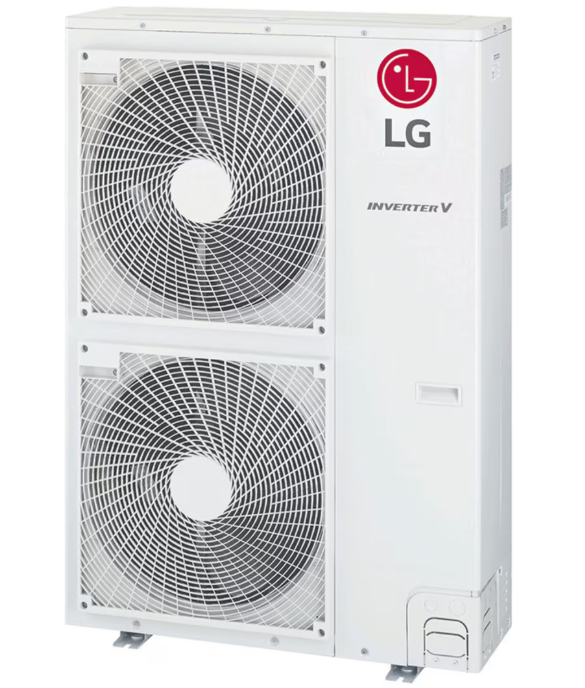

UHN100M3SH / UU100WR3H LG Splittable Ducted
$3,396.36 Excl GST

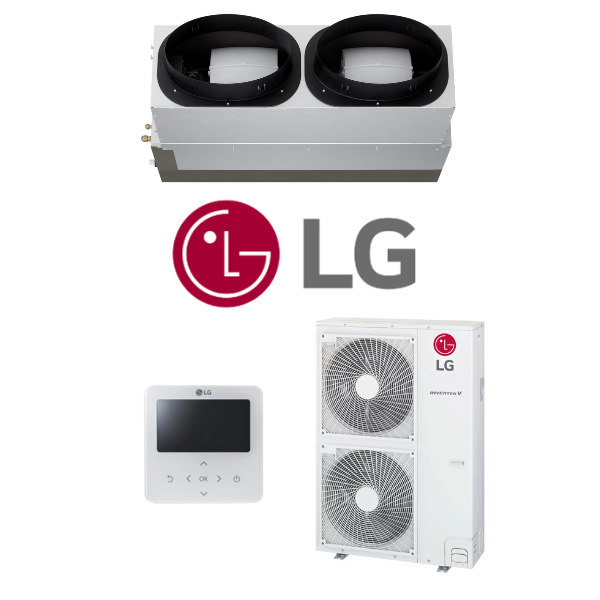

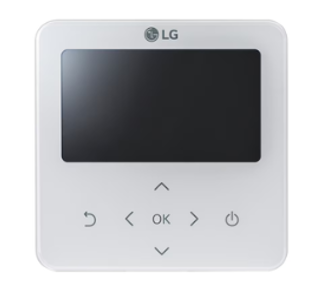

LG UHS100SPHSET 10.0kW Single Phase Splittable High Efficiency Ducted Unit - Includes Outdoor Unit and Wall Controller PREMTB100
Stay cool in the summer, warm in the winter – and comfortable all year long. With a ducted air conditioning unit from LG, you can control the temperature in your space with just the touch of a button. Life is a little more quiet, economical, and comfortable thanks to LG ducted air conditioners. Get the advanced technology you need – and provide your guests, clients and colleagues with the ultimate in comfort.
Key Features:
- Zone Control of up to 8 zones with the LG Premium Controller (Sold Separately)
- Optional Wi-Fi (Dongle module sold separately)
- Quiet Mode
- Compact Indoor unit helps make it easy to install in small spaces
- Built In Return Plenum
- Lighter and Splittable Structure
- High Efficiency Model
(UHS100SPHSET)
| System Name | UHS85SPSET | UHS100SPSET | UHS125SPSET | UHS140SPSET | UHS150SPSET | UHS100SPHSET |
|---|---|---|---|---|---|---|
| Indoor Unit | UHN85M2S | UHN100M2S | UHN125M3S | UHN140M3S | UHN150M3S | UHN100M3SH |
| Outdoor Unit | UU85WR3 | UU100WR3 | UU125WR3 | UU140WR3 | UU150WR3 | UU100WR3H |
| Model | Standard | High Efficiency | ||||
| Cooling Capacity Rated/Min-Max (kW) | 8.5 (2.55-9.3) | 10.0 (4.2-13.0) | 12.5 (5.1-14.3) | 14.0 (5.6-15.7) | 15.2 (6.1-16.4) | 10.5 (5.1-13.8) |
| Heating Capacity Rated/Min-Max (kW) | 10.0 (2.87-11) | 13.0 (5.2-13.9) | 15.0 (6.0-16.2) | 16.5 (6.6-17.0) | 18.0 (7.2-18.3) | 13.0 (6-15.4) |
| Power Supply | 1 Phase, 50Hz, 220-240V | |||||
| AEER / ACOP | 3.364 / 3.667 | 3.75 / 4.00 | 3.68 / 3.95 | 3.22 / 3.71 | 3.27 / 3.64 | 4.13 / 4.27 |
| Rated Current Cool/Heat (A) | 11.2 / 12.0 | 12.2 / 14.2 | 14.9 / 16.9 | 19.1 / 19.5 | 20.4 / 21.7 | 14.9 / 16.9 |
| Full Load Amps (A) | 17 | 29 | ||||
| Air Flow Rate Rated/Min-Max (L/s) | 583 (305-815) | 700 (377-893) | 833 (425-1035) | 900 (468-1073) | 950 (495-1123) | 700 (425-1000) |
| External Static Pressure Min-Max (Pa) | 39 - 137 | 49 - 157 | 39-137 | |||
| Indoor Unit Dimensions (H x W x D) (mm) | 270 x 1250 x 820 | 360 x 1250 x 820 | ||||
| Outdoor Unit Dimension (H x W x D) (mm) | 834 x 950 x 330 | 1380 x 950 x 330 | ||||
| Indoor Unit Weight (kg) | 42 | 47 | ||||
| Outdoor Unit Weight (kg) | 59 | 89 | ||||
| Indoor Cooling H/M/L (dBA) | 42 / 40 / 38 | 45 / 43 / 41 | 44 / 42 / 41 | 45 / 44 / 42 | 46 / 44 / 42 | 44 / 42 / 41 |
| Outdoor Cool/Heat @ 1.5m (dBA) | 51 / 52 | 50 / 50 | 51 / 52 | 52 / 53 | 54 / 56 | 51 / 52 |
| Compressor Type | Twin Rotary | Inverter Scroll | ||||
| Fin Type | ||||||
| Refrigerant Type/Pre-Charge Length (m) | R32 / 10 | R32 / 20 | ||||
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | |||||
| Piping Length IDU-ODU Rated/Max/Min (m) | 7.5 / 50.0 / 5.0 | 7.5 / 85.0 / 5.0 | ||||
| Max Height Difference IDU-ODU (m) | 30 | |||||
| Return Air Vent (Oval) (mm) | 2 x 400 | |||||
| Supply Air Vent (WxH, Flange) (mm) | 1148 x 245 | 1148 x 292 | 1148 x 245 | |||
| Continuous Operation Cool/Heat (C) | -15 to 48 / -18 to 18 | |||||
| Wi-Fi Compatible | Optional | |||||
| SKU | UHS100SPHSET |
| Brand | LG |
| Shipping Weight | 136.0000kg |
| Shipping Cubic | 0.801630000m3 |
| Unit Of Measure | ea |
LG offers a 5-Year Parts and Labour Warranty on their Splittable Ducted Systems
