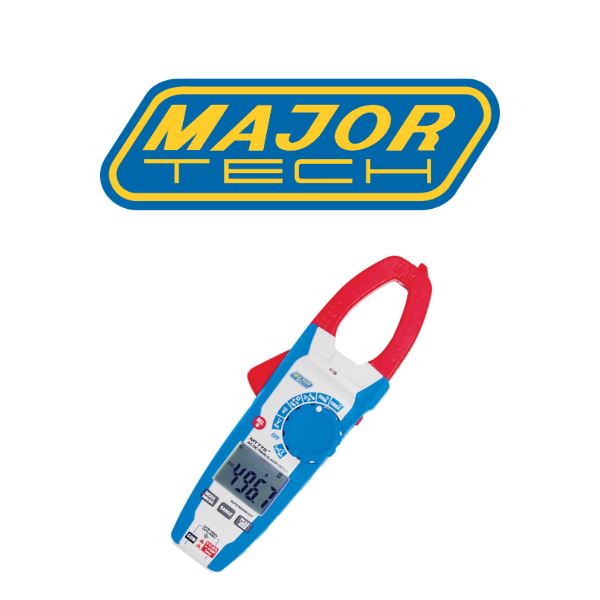

Major Tech 1000A AC/DC MT775 True RMS Clamp Meter 35mm

Major Tech 1000A AC/DC MT775 True RMS Clamp Meter 35mm

The MT775 1000A AC/DC True RMS Clamp Meter is rated CAT IV 600V and has a 6000 count backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. Added features include Relative mode for DCA and Capacitance Zero and offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas.

• CAT IV 600V and CAT III 1000V
• 6000 count backlit LCD display
• AC and DC Voltage 1000V
• AC and DC Current 1000A
• Resistance 60Mꭥ
• Frequency 99.99kHz
• Capacitance 100mF
• Temperature -20 to 1000˚C
• Duty Cycle 90%
• Ø33mm Cable Clamp size
• INRUSH Current Measurements
• VFD – Variable Frequency Drive voltage value
• LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
• NCV – Non-Contact Voltage Detector
• Built-In Flashlight
• Continuity buzzer and Diode Test
• Peak Mode and Data Hold function
• Auto Power Off
