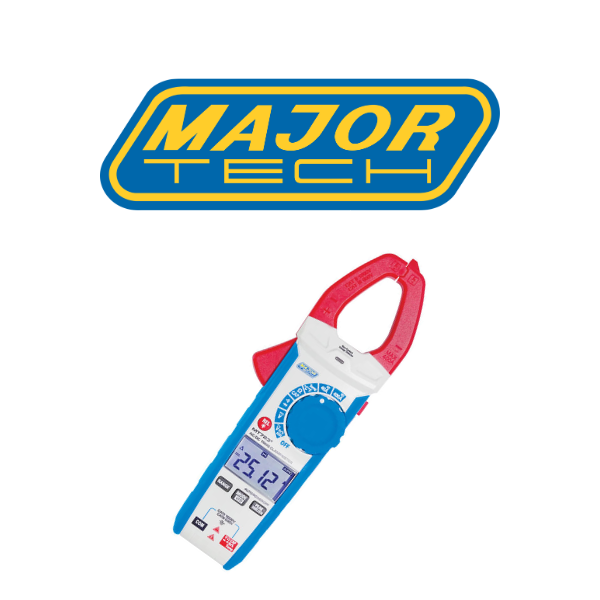

Major Tech 400A AC/DC MT723 True RMS Clamp Meter 30mm
Major Tech Clamp Meter
$180.00 Excl GST
Major Tech 400A AC/DC MT723 True RMS Clamp Meter 30mm
The MT723 is a 400A AC/DC True RMS Clamp Meter that is CAT III 600V, has a 4000 count large backlit LCD display providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
- CAT III 600V and CAT II 1000V
- 4000 count backlit LCD display
- 400A AC/DC
- 1000V AC/DC
- Resistance 40Mꭥ
- Frequency 10kHz
- Capacitance 100mF
- Temperature -20˚C to 1000˚C
- Ø30mm Cable Clamp size
- INRUSH Current Measurements
- VFD – Variable Frequency Drive voltage value
- NCV – Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Peak Mode and Data Hold function
- Auto Power Off
(MT723)
SKU | MT723 |
Brand | Major Tech |
Shipping Weight | 0.5430kg |
Shipping Width | 0.060m |
Shipping Height | 0.120m |
Shipping Length | 0.238m |
Shipping Cubic | 0.001713600m3 |
Unit Of Measure | ea |
