Major Tech MT500 Analogue Insulation Tester
Major Tech Insulation Tester
$248.18 Excl GST

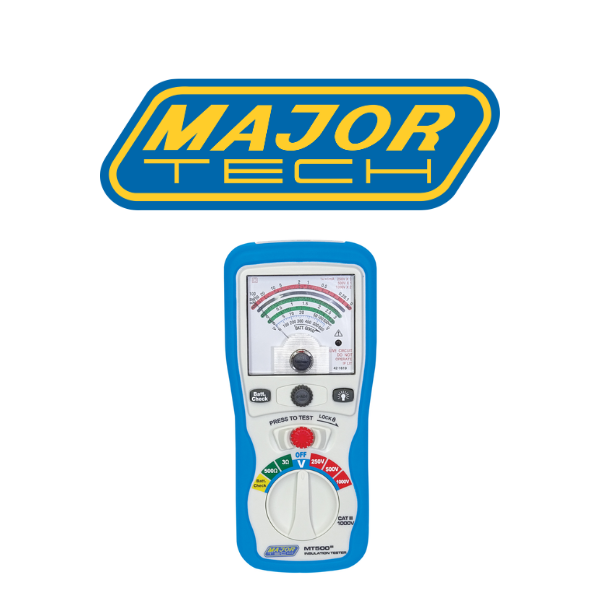

Major Tech Analogue Insulation Tester
The MT500 is a rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environment.
- CAT IV 600V and CAT III 1000V
- 3 test ranges 250V-500V-1000V
- AC Voltage 600V
- Resistance 500ꭥ
- Live Circuit warning and buzzer
- Data Hold function
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Automatic discharge after test
- Front panel zero adjustment for test lead resistance
- Lock down Test Button for continuous use
- Hands free strap and magnet supplied as standard accessories
- Rubber overmould housing
- Illuminated display
(MT500)
SKU | MT500 |
Brand | Major Tech |
Shipping Weight | 1.2440kg |
Shipping Width | 0.090m |
Shipping Height | 0.260m |
Shipping Length | 0.180m |
Shipping Cubic | 0.004212000m3 |
Unit Of Measure | ea |
