Major Tech MT560 Digital Insulation/Continuity Tester
Major Tech Digital Insulation Tester
$350.00 Excl GST

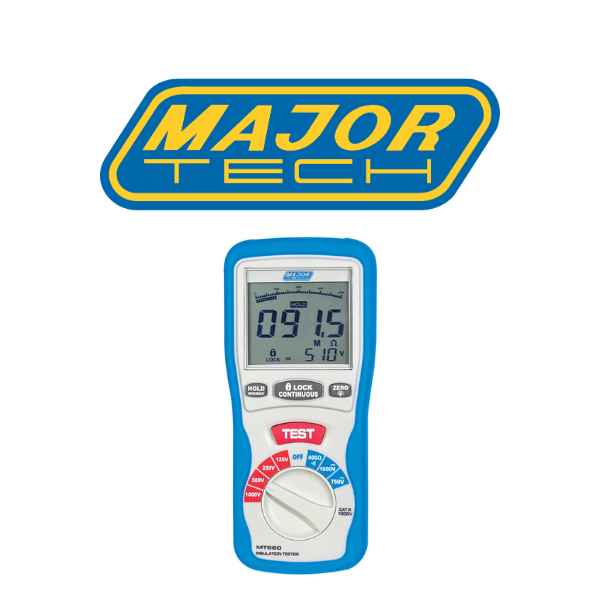

Major Tech MT560 Digital Insulation/Continuity Tester
The MT560 has a large dual display with a bargraph indicating the insulation resistance. This compact handheld meter has four test ranges: 125V, 250V, 500V and 1000V source for the test and under each range it can supply more than 1mA current to feed the capacitance load. The tester features AC and DC voltage ranges as well as a battery indication. Should AC voltage be present, the LCD display will indicate to the operator the AC voltage value, regardless of what range the meter is on except in the Off position. Other features include a Data Hold function, a bright white LED back light and a continuity buzzer.
- CAT IV 600V and CAT III 1000V
- 4 test ranges 125V-250V-500V-1000V
- Measure DC Voltage up to 1000V
- Measure AC Voltage up to 750V
- Measure Resistance up to 400ꭥ
- MIN/MAX Record mode
- Large Dual LCD display with bargraph
- Live Circuit detection prevents insulation tests if voltage >30V
- Auto Null of test lead resistance
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Continuity Buzzer
- Automatic discharge of capacitive voltage after test for added protection
- Data Hold function
- Lock down Test Button for continuous use
- Hands free strap and magnet supplied as standard accessories
- Rubber overmould housing
- Illuminated display
(MT560)
SKU | MT560 |
Brand | Major Tech |
Shipping Weight | 1.2600kg |
Shipping Width | 0.180m |
Shipping Height | 0.260m |
Shipping Length | 0.090m |
Shipping Cubic | 0.004212000m3 |
Unit Of Measure | ea |
