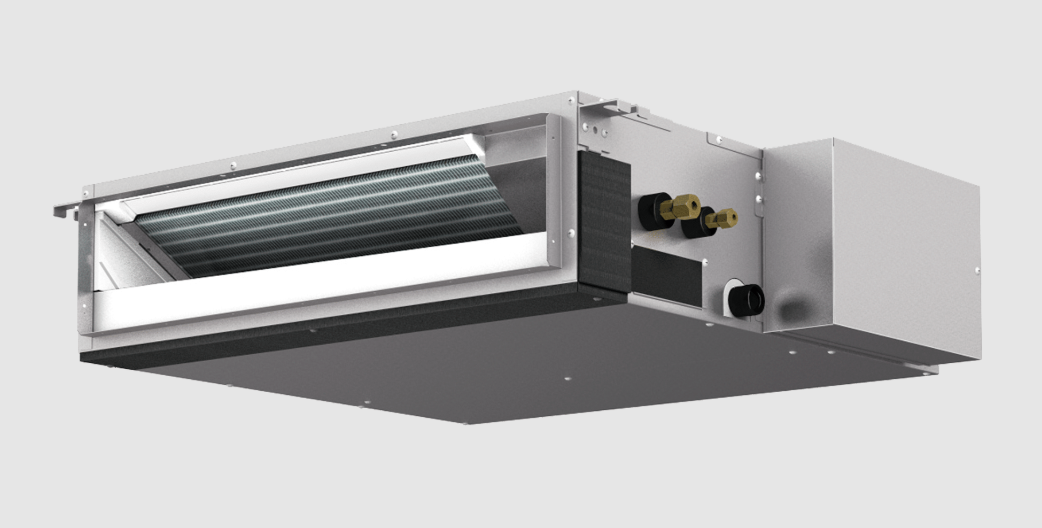

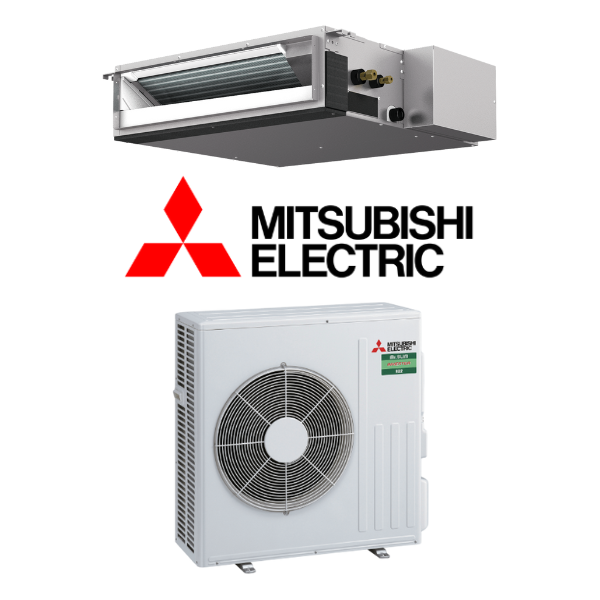

Mitsubishi Electric 6.0kW SEZM60DALKIT Bulkhead Ducted Air Conditioning System (Wireless Controller)
SEZ-M60DAL / SUZ-M60VAD-A Mitsubishi Electric Bulkhead
$2,417.27 Excl GST
Mitsubishi Electric 6.0kW SEZM60DALKIT Single Phase Bulkhead Ducted Air Conditioner - Inlcudes Outdoor Unit and Wireless Controller
Discover comfort with the Mitsubishi Electric SEZ-M Series Bulkhead Air Conditioner, a low static bulkhead air conditioner that provides the perfect balance of performance and subtlety for your home or office. Engineered for quiet efficiency and designed with a sleek, low-profile build, it delivers optimal climate control while maintaining the aesthetic appeal of any space.
Features:
- Capacity Range: 2.5 - 7.1 kW
- Impressively Quiet
- Low Profile Installation
- External Static Pressure 5 to 50 Pa
- Discreet Design
- R32 Refrigerant
- Optional Wi-Fi Control - Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
- DC Fan Motor
- Plasma Quad Connect Air Purifying Filter
(SEZM60DALKIT)
| System Name | SEZM25DA(L)KIT | SEZM35DA(L)KIT | SEZM50DA(L)KIT | SEZM60DA(L)KIT | SEZM71DA(L)KIT |
|---|---|---|---|---|---|
| Indoor Unit | SEZ-M25DA(L).TH | SEZ-M35DA(L).TH | SEZ-M50DA(L).TH | SEZ-M60DA(L).TH | SEZ-M71DA(L).TH |

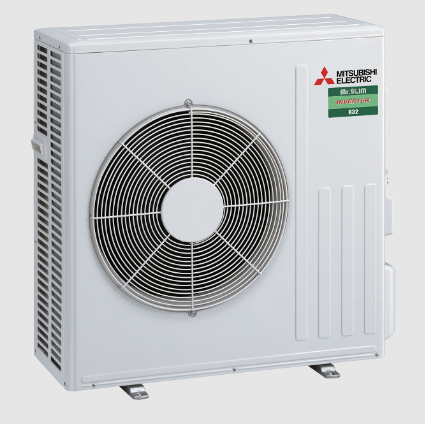

| Outdoor Unit | SUZ-M25VAD-A.TH | SUZ-M35VAD-A.TH | SUZ-M50VAD-A.TH | SUZ-M60VAD-A.TH | SUZ-M71VAD-A.TH |
| Power Supply | 1 Phase, 230V, 50/60Hz | ||||
| Cooling Capacity Rated/Min-Max (kW) | 2.5 (1.5-3.3) | 3.5 (1.5-4.0) | 5.0 (2.3-6.3) | 6.0 (2.3-6.5) | 7.1 (2.8-8.3) |
| Heating Capacity Rated/Min-Max (kW) | 3.0 (1.3-4.2) | 4.0 (1.3-5.0) | 6.0 (1.7-7.2) | 7.0 (2.5-8.0) | 8.0 (2.6-10.4) |
| EER/COP | 3.57 / 3.44 | 3.46 / 3.60 | 3.57 / 3.61 | 3.46 / 3.50 | 3.31 / 3.60 |
| Rated Running Current Cool/Heat (A) | 3.7 / 4.3 | 4.7 / 5.0 | 6.4 / 7.5 | 7.6 / 8.7 | 9.4 / 9.7 |
| Sound Pressure Level (L/M/H) dBA - Cool/Heat | 22 - 25 - 29 | 23 - 28 - 33 | 29 - 33 - 36 | 29 - 33 - 37 | 29 - 34 - 39 |
| Sound Pressure Level Out (PWL) dBA - Cool | 45 (59) | 48 (63) | 48 (66) | 49 (68) | |
| Sound Pressure Level Out (PWL) dBA - Heat | 59 (59) | 62 (63) | 64 (66) | 65 (68) | 66 (68) |
| Air Volume In Cool/Heat (Lo/Mid/Hi) L/s | 92 - 117 - 150 | 117 - 150 - 183 | 167 - 208 - 250 | 200 - 250 - 300 | 200 - 267 - 333 |
| Max. Running Current (A) | 7.2 | 9.0 | 16.1 | 15.5 | 15.7 |
| Indoor Dimensions (HxWxD) (mm) | 200 x 790 x 700 | 200 x 990 x 700 | 200 x 1190 x 700 | ||
| Outdoor Dimensions (HxWxD) (mm) | 550 x 800 x 285 | 714 x 800 x 285 | 880 x 840 x 330 | ||
| Indoor Weight (kg) | 17.5 | 21 | 22 | 25.5 | |
| Outdoor Weight (kg) | 30 | 35 | 41 | 54 | 55 |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | 9.52 / 15.88 | |
| Max Piping Length/Height (m) | 20 / 12 | 30 / 30 | |||
| Outdoor Operating Range Cool/Heat (C) | -10 to 52 / -10 to 24 | -15 to 52 / -10 to 24 | |||
| Supply Air Duct (mm) | 660 x 150 | 860 x 150 | 1060 x 150 | ||
| Return Air Duct (mm) | 660 x 157.5 | 860 x 157.5 | 1060 x 157.5 | ||
| R32 Refrigerant Amount Pre-Charged (kg) | 0.65 (7m) | 0.90 (7m) | 1.20 (7m) | 1.25 (7m) | 1.45 (7m) |
| SKU | SEZM60DALKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 79.5000kg |
| Shipping Cubic | 0.410536000m3 |
| Unit Of Measure | ea |
