Mitsubishi Heavy (MHI) FDU90KXZEN1W6F-RC-EXZ3A 9.0kW Ducted 1 Phase Air Conditioning System

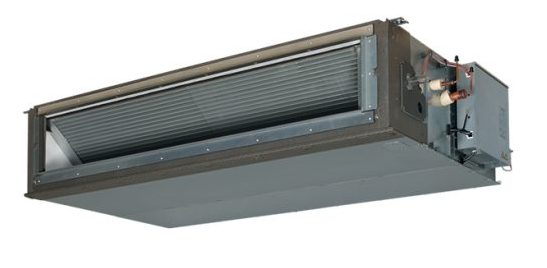

FDU90KXE6F-W / FDC90KXZEN1-W (MHI) Ducted
$4,414.54 Excl GST

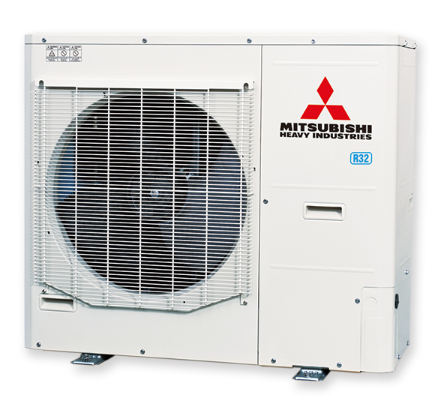

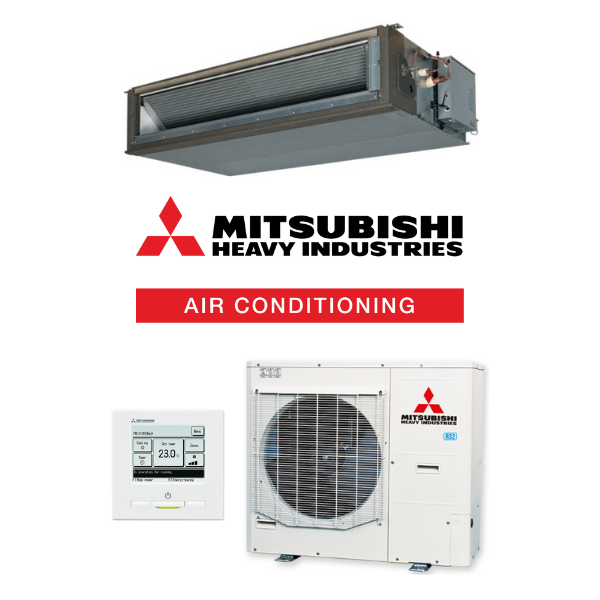

Mitsubishi Heavy Industries FDU90KXZEN1W6F-RC-EXZ3A 9.0kW Single Phase Ducted System - Includes Outdoor Unit FDC90KXZEN1-W
The KX1:1 series of ducted air-conditioning systems are quiet yet powerful. Ranging from 9.0kW up to 28.0kW, the KX1:1 series of ducted systems incorporates a range of convenient features and functions including automatic mode, high power mode, silent mode and a range of timer and scheduling functions making them the perfect climate solution for any Australian home.
Key Features:
- High performance
- Durable and robust design
- Bluefin coated components for increased weather protection
- Low profile indoor units
- Reduced operation noise
(FDU90KXZEN1W6F-RC-EXZ3A)
System Name | FDU90KXZEN1W6F | FDU112KXZEN1W6F | FDU140KXZEN1W6F | FDU160KXZEN1W6F | FDU112KXZES1W6F | FDU140KXZES1W6F | FDU160KXZES1W6F | FDU224KXZE1 | FDC280KXZPE1 |
---|---|---|---|---|---|---|---|---|---|
Indoor Unit | FDU90KXE6F-W | FDU112KXE6F-W | FDU140KXE6F-W | FDU160KXE6F-W | FDU112KXE6F-W | FDU140KXE6F-W | FDU160KXE6F-W | FDU224KXZE1 | FDU280KXZE1 |
Outdoor Unit | FDC90KXZEN1-W | FDC112KXZEN1-W | FDC140KXZEN1-W | FDCA155KXZEN1-W | FDC112KXZES1-W | FDC140KXZES1-W | FDCA160KXZES1-W | FDC224KXZPE1 | FDC280KXZPE1 |

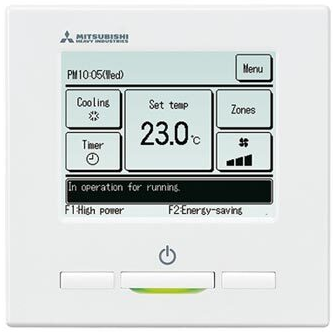

Controller | RC-EXZ3A | ||||||||
Power Supply | 1 Phase, 240V, 50Hz | 3 Phase, 380 ~ 415V, 50Hz | |||||||
Cooling Capacity (kW) | 9.0 | 11.2 | 14.0 | 15.2 | 11.2 | 14.0 | 15.2 | 22.4 | 28.0 |
Heating Capacity (kW) | 9.0 | 11.2 | 14.0 | 15.2 | 11.2 | 14.0 | 15.2 | 22.4 | 28.0 |
Duct Sizes (Supply/Return) (mm) | 170 x 880 / 200 x 740 | 170 x 1200 / 235 x 1280 | 250 x 1450 / 250 x 1450 | ||||||
Max External Static Pressure (Pa) | 200 | ||||||||
Outdoor Sound Pressure Level dB(A) | 53 | 54 | 60 | 63 | |||||
Refrigerant Type/Amount (kg) | R32 / 4.2 | R410A / 8.9 | |||||||
Max Pipe Length (m) | 50 | 90 | |||||||
Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 30 | I.D.U Higher 30 / O.D.U Higher 30 | |||||||
Indoor Dimensions (HxWxD) (mm) | 280 x 950 x 635 | 280 x 1368 x 740 | 379 x 1600 x 893 | ||||||
Outdoor Dimensions (HxWxD) (mm) | 845 x 970 x 370 | 1505 x 970 x 370 | |||||||
Indoor Weight (kg) | 34 | 54 | 89 | ||||||
Outdoor Weight (kg) | 85 | 87 | 165 | ||||||
Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | 9.52 / 19.05 | 9.52 / 22.22 |
SKU | FDU90KXZEN1W6F-RC-EXZ3A |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 119.0000kg |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries Air-Conditioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
