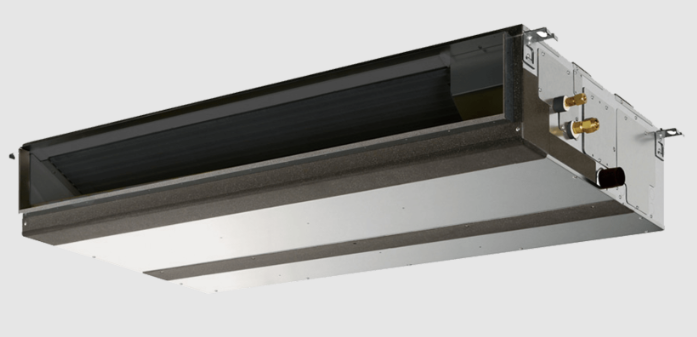

Mitsubishi Electric PEADM100JAADR1VKIT 10.0kW Ducted 1 Phase Low Profile Air Conditioning System
PEAD-M100JAADR1.TH / PUZ-M100VKA-A.TH Mitsubishi Ducted
$3,966.36 Excl GST

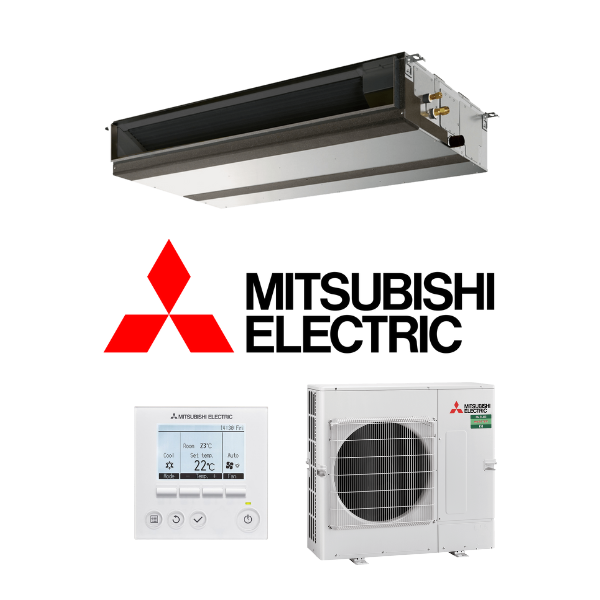

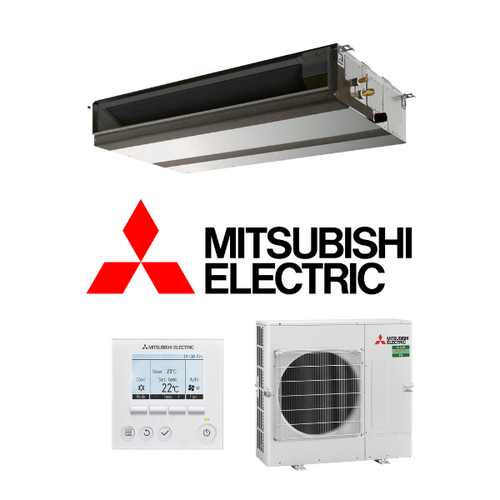

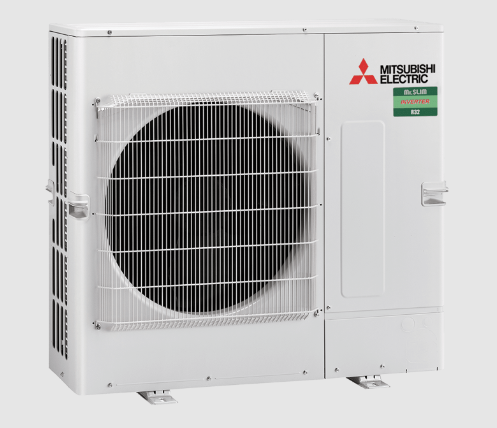

Mitsubishi Electric PEADM100JAADR1VKIT 10.0kW Single Phase Low-Profile Ducted System - Includes Outdoor Unit PUZ-M100VKA-A.TH and Wall Controller
Experience the versatility and precision of the low-profile ducted Mitsubishi Electric PEAD series air conditioners, designed to meet your heating and cooling needs with exceptional efficiency.
Key Features:
- Capacity Range: 5.0 kW - 14.0 kW
- External static pressure range 35-125 Pa
- Low profile design
- Built-in condensate pump
- Wide selection of fan speeds
- Wi-Fi Control* Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
- PAR-41MAAM Deluxe Controller
(PEADM100JAADR1VKIT)
| System Name | PEADM100JAADR1VKIT | PEADM125JAADR1VKIT | PEADM140JAADR1VKIT |
|---|---|---|---|
| Indoor Unit | PEAD-M100JAADR1.TH | PEAD-M125JAADR1.TH | PEAD-M140JAADR1.TH |
| Outdoor Unit | PUZ-M100VKA-A.TH | PUZ-M125VKA-A.TH | PUZ-M140VKA-A.TH |
| Cooling Capacity (kW) | 10.0 | 12.0 | 14.0 |
| Heating Capacity (kW) | 12.5 | 14.0 | 16.0 |
| Indoor Dimensions (HxWxD) (mm) | 250 x 1400 x 732 | ||
| Outdoor Dimensions (HxWxD) (mm) | 981 x 1050 x 330(+40) | 1338 x 1050 x 330(+40) | |
| Indoor Weight (kg) | 39 | 40 | 44 |
| Outdoor Weight (kg) | 76 | 84 | 99 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||
| SKU | PEADM100JAADR1VKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 115.0000kg |
| Unit Of Measure | ea |
