Temperzone ISD164KYXKIT Three Phase 16.4kW Ducted Split System

ISD164KYX/OSA164RKTGH Digital Scroll Ducted System

Price On Application

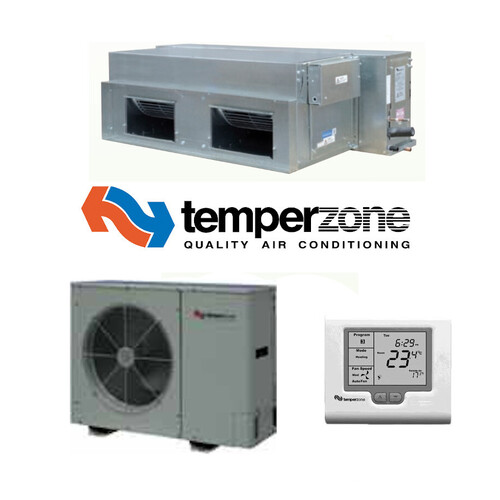

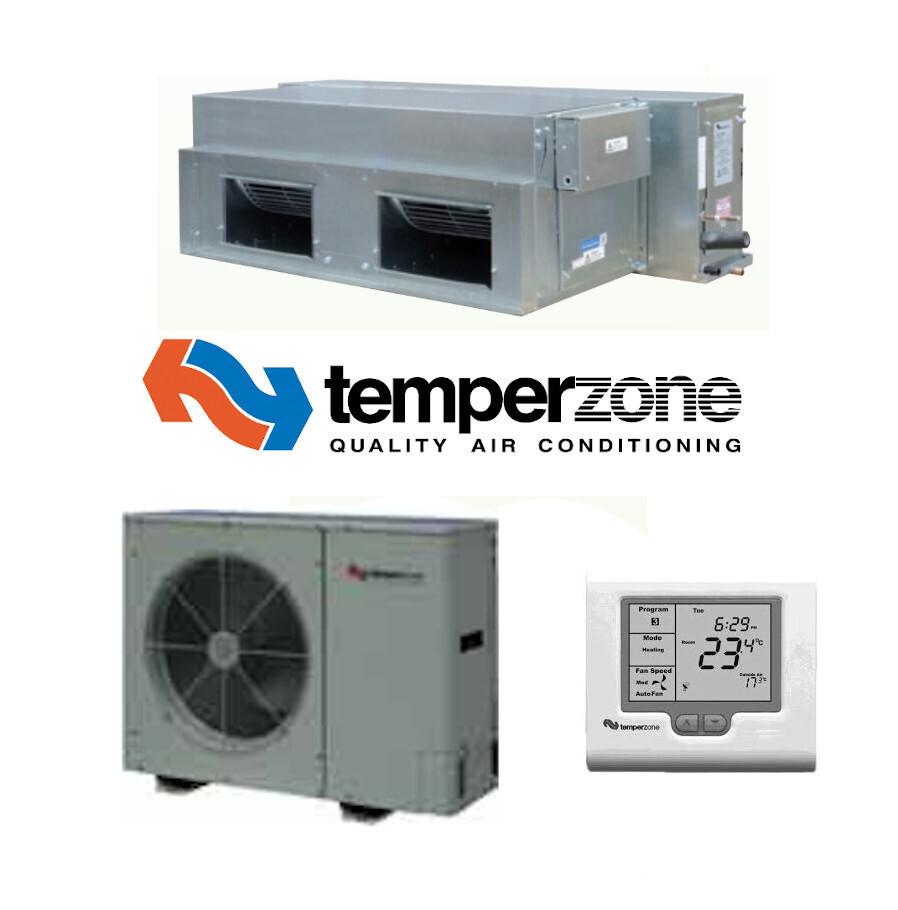

Temperzone ISD164KYXKIT 16.4kW Ducted Split System - Includes Outdoor Unit OSA164RKTGH & Wired Controller TZT-100

Temperzone intelligent system control technology offers leading energy efficiency with precision control of the air conditioners refrigeration system. Using advanced Inverter Compressor Technology, Temperzone ducted systems are able to deliver precise temperature and humidity control as well as a rapid cooling and heating capability.

Features:

  • Ecologically Aware
  • Efficiency
  • Innovative Noise Reduction Technology
  • Easy Access To Spare Parts

(ISD164KYXKIT)

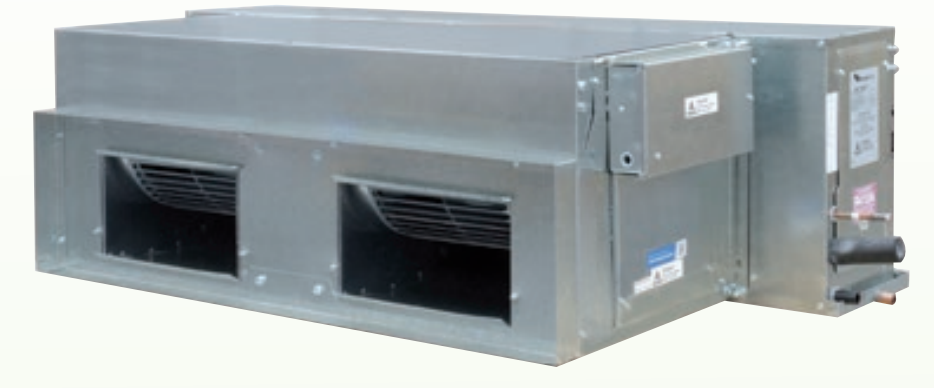

Indoor ISD164KYX
Outdoor OSA164RKTGH
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   400 / 3 / 50
Cooling Capacity - Rated (Range) kW 16.0 (6.4 - 16.4)
Working Range °C -10 to 52
Efficiency - Rated  W/W 3.13
Heating Capacity - Rated (Range) kW 15.0 (6.0 - 15.0)
Working Range °C -15 to 25
Efficiency - Rated  W/W 3.52
Indoor Unit Dimensions (WxDxH) mm 430 x 1470 x 785
Air Flow l/s 910
Net Weight kg 83.0
Outdoor Dimensions (WxDxH) mm 1120 x 1120 x 425
Net Weight kg 134.0
Compressor Type  -  -
Fan Motor Output W -
Pipe Size Pipe Sizes mm 19 / 9.5
SKU ISD164KYXKIT
Brand Temperzone
Shipping Weight 217.0000kg
