Best Prices Mitsubishi PEADZM140JAADR1VKIT 14kW Ducted Air Con Low Cost Installation Brisbane Sydney

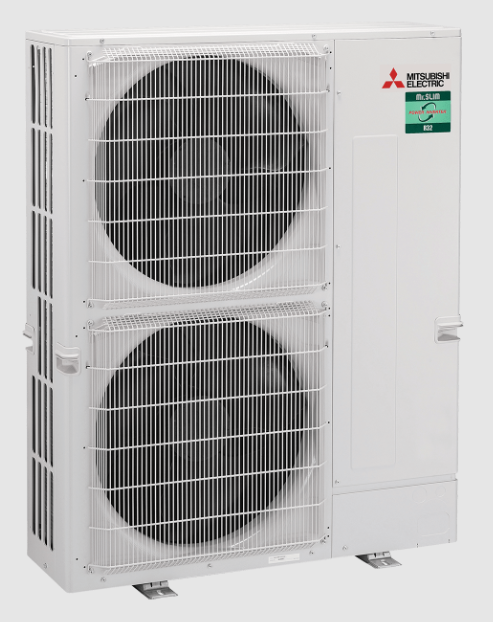

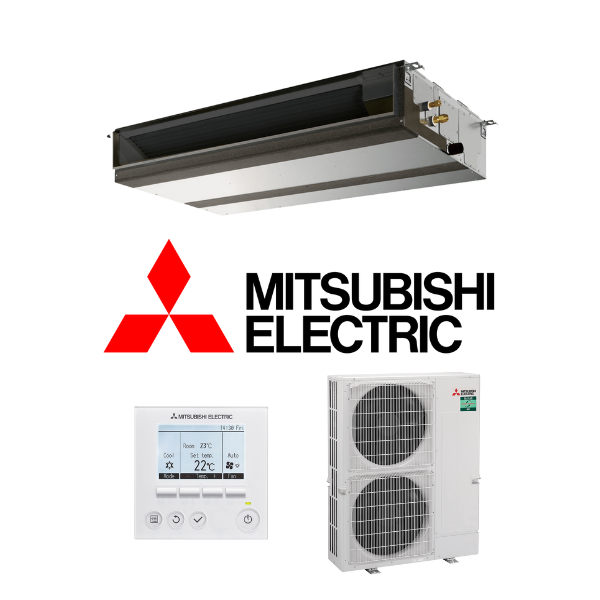

Mitsubishi Electric PEAD-M140JAADR1.TH 14.0kW Single Phase Low Profile Ducted System (Power Inverter) - Includes Outdoor Unit PUZ-ZM140VKA2-A and Wall Controller

Experience the versatility and precision of the low-profile ducted Mitsubishi Electric PEAD series air conditioners, designed to meet your heating and cooling needs with exceptional efficiency.

Key Features:

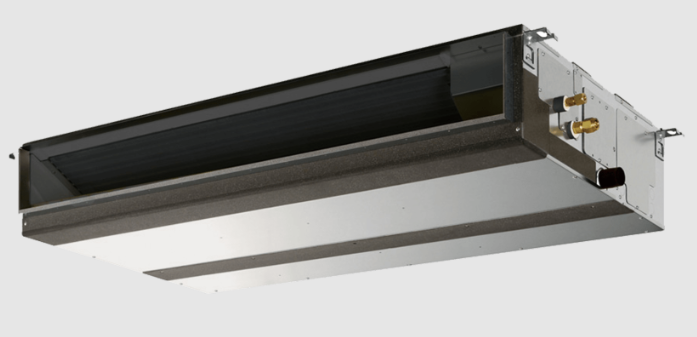

Low profile design: The height of the PEAD Series (5.0kW-14.0kW) has been unified to 250mm making installation possible in low ceilings with minimal clearance space.
Wide Selection of Fan Speeds: 3 fan speeds allowing a wide range of installation possibilities.
Long Life Filter
Optional Wi-Fi Control: 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
Drainage Pump Installed as Standard
Wide External Static Pressure Range
Wired Controller
Flexible Duct Design
R32 Refrigerant

(PEADZM140JAADR1VKIT)

System Name	PEADZM71JAADR1VKIT	PEADZM100JAADR1VKIT	PEADZM100JAADR1YKIT	PEADZM125JAADR1VKIT	PEADZM125JAADR1YKIT	PEADZM140JAADR1VKIT	PEADZM140JAADR1YKIT
Indoor Unit	PEAD-M71JAADR1.TH	PEAD-M100JAADR1.TH	PEAD-M100JAADR1.TH	PEAD-M125JAADR1.TH	PEAD-M125JAADR1.TH	PEAD-M140JAADR1.TH	PEAD-M140JAADR1.TH
Outdoor Unit	PUZ-ZM71VHA2-A.TH	PUZ-ZM100VKA2-A.TH	PUZ-ZM100YKA3-A.TH	PUZ-ZM125VKA2-A.TH	PUZ-ZM125YKA2-A.TH	PUZ-ZM140VKA2-A.TH	PUZ-ZM140YKA2-A.TH
Cooling (kW)	7.1	10.0	10.0	12.5	12.5	14.0	14.0
Heating (kW)	8.0	11.2	11.2	14.0	14.0	16.0	16.0
Indoor Dimensions (HxWxD) (mm)	250 x 1100 x 732	250 x 1400 x 732				250 x 1600 x 732
Outdoor Dimensions (HxWxD) (mm)	943 x 950 x 330(+25)	1338 x 1050 x 330(+40)
Indoor Weight (kg)	30	39		40		44
Outdoor Weight (kg)	70	113	114	113	114	113	114
Pipe Sizes (mm) (Liquid/Gas)	9.52 / 15.88
