Mitsubishi Electric PEAM100GAAYKIT2 10.0kW 3 Phase Ducted Power Inverter Air Conditioning System
PEA-M100GAA.TH / PUZ-ZM100YKA3-A.TH Mitsubishi Ducted
$4,235.45 Excl GST

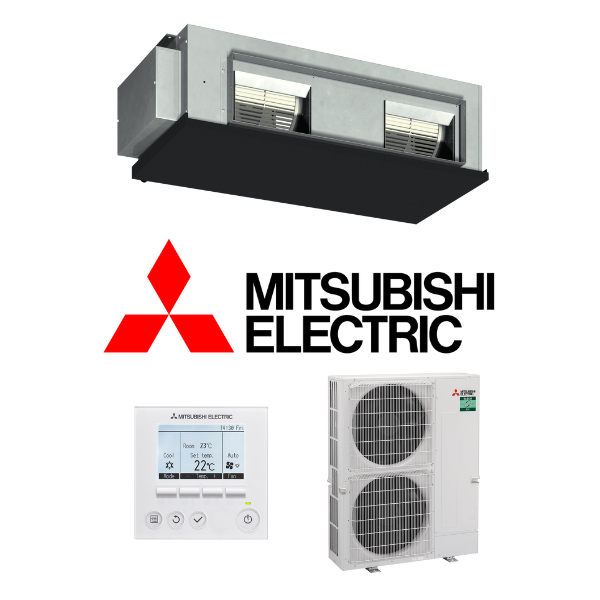

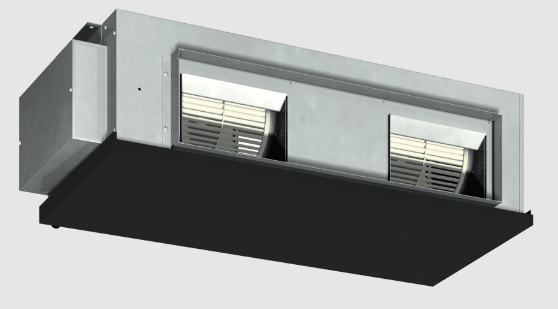

Mitsubishi Electric PEA-M100GAA.TH 10.0kW Three Phase Power Inverter Ducted Unit - Includes Outdoor Unit PUZ-ZM100YKA3-A and Wall Controller
Advanced technology makes Mitsubishi Electric Power Inverter ducted air conditioning the premium choice for creating your living environment. It provides energy savings when compared to non inverter models. The reason our Power Inverters are more energy efficient is because the system output varies constantly to maintain your perfect living environment. This means that a Power Inverter will cool or heat your home more rapidly and maintain the desired temperature without fluctuations while using less energy.
Key Features:
- High External Static Pressure
- Longer Maximum Piping Length
- Optional Zone Conroller -Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
- Flexible Ducting Design
- Optional PAR-41MAA Wall Mounted Controller
- Optional Wi-Fi Control - 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
(PEAM100GAAYKIT2)
System Name | PEAM100GAAVKIT2 | PEAM125GAAVKIT2 | PEAM140GAAVKIT2 | PEAM100GAAYKIT2 | PEAM125GAAYKIT2 | PEAM140GAAYKIT2 |
---|---|---|---|---|---|---|
Indoor Unit | PEA-M100GAA.TH | PEA-M125GAA.TH | PEA-M140GAA.TH | PEA-M100GAA.TH | PEA-M125GAA.TH | PEA-M140GAA.TH |
Outdoor Unit | PUZ-ZM100VKA2-A.TH | PUZ-ZM125VKA2-A.TH | PUZ-ZM140VKA2-A.TH | PUZ-ZM100YKA3-A.TH | PUZ-ZM125YKA2-A.TH | PUZ-ZM140YKA2-A.TH |
Cooling Capacity (kW) | 10.0 | 12.5 | 14.0 | 10.0 | 12.5 | 14.0 |
Heating Capacity (kW) | 11.2 | 14.0 | 16.0 | 11.2 | 14.0 | 16.0 |
Indoor Dimensions (HxWxD) (mm) | 400 x 1400 x 634 | |||||
Outdoor Dimensions (HxWxD) (mm) | 1338 x 1050 x 370 | |||||
Indoor Weight (kg) | 63 | |||||
Outdoor Weight (kg) | 113 | 114 | ||||
Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 |
SKU | PEAM100GAAYKIT2 |
Brand | Mitsubishi Electric |
Shipping Weight | 177.0000kg |
Unit Of Measure | ea |
