Mitsubishi Electric 10.0kW PEAMS100HAAVKIT 1 Phase Ducted Air Conditioning System

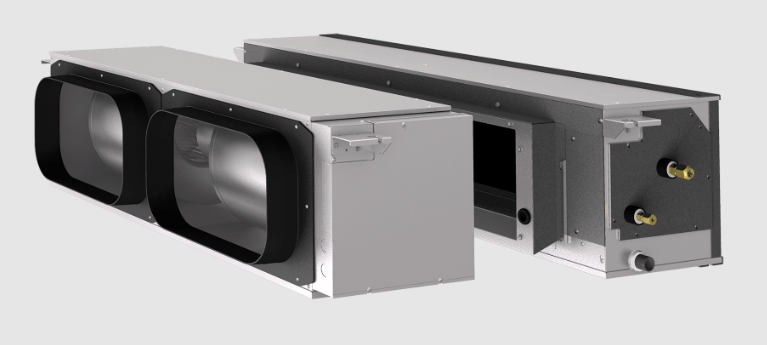

PEA-M100HAA / PUZ-M100VKA-A Mitsubishi Electric Ducted
$3,667.27 Excl GST

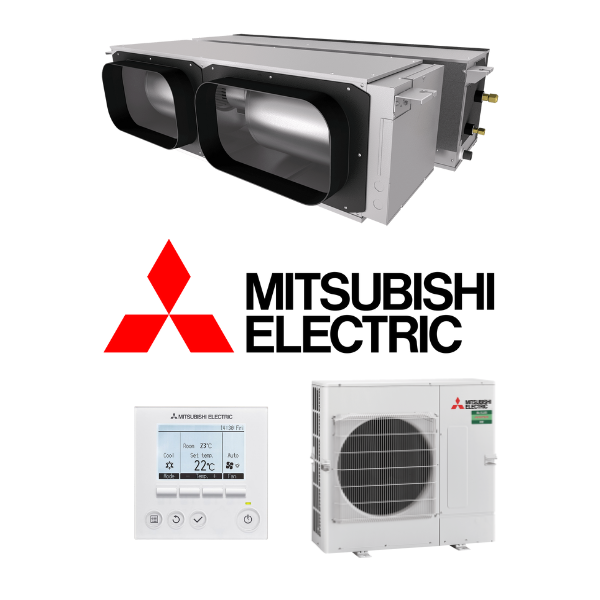

Mitsubishi Electric PEAMS100HAAVKIT 10.0kW Single Phase 2-Piece Construction Ducted System - Includes Outdoor Unit PUZ-M100VKA-A.TH and Wall Controller
Keep your home at the ideal temperature all year long with the PEA-M100-140HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.
Key Features:
- Three capacities: 10.0, 12.5, 14.0 kW
- High external static pressure up to 150 Pa
- 2 piece construction, ideal for home renovation
- Flexibility in design
- Ideal for existing homes
- 4 fan speed settings
(PEAMS100HAAVKIT)
| System Name | PEAMS100HAAVKIT | PEAMS125HAAVKIT | PEAMS140HAAVKIT |
|---|---|---|---|
| Indoor Unit | PEA-M100HAA | PEA-M125HAA | PEA-M140HAA |

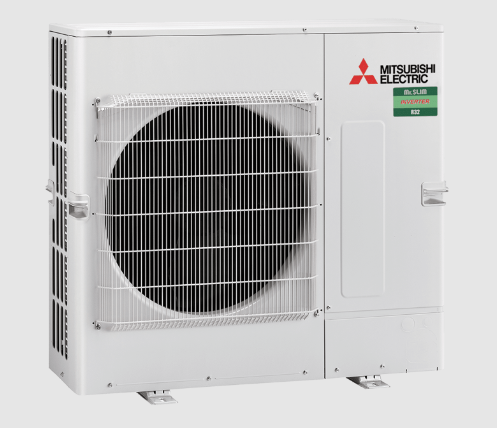

| Outdoor Unit | PUZ-M100VKA-A.TH | PUZ-M125VKA-A.TH | PUZ-M140VKA-A.TH |
| Cooling Capacity (kW) | 10.0 | 12.0 | 14.0 |
| Heating Capacity (kW) | 12.5 | 14.0 | 16.0 |
| Indoor Dimensions (HxWxD) (mm) | 380 x 1405 x 900 | ||
| Outdoor Dimensions (HxWxD) (mm) | 981 x 1050 x 330(+40) | 1338 x 1050 x 330(+40) | |
| Indoor Weight (kg) | 63 | ||
| Outdoor Weight (kg) | 76 | 84 | 99 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||
| SKU | PEAMS100HAAVKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 139.0000kg |
| Unit Of Measure | ea |
