Mitsubishi Heavy (MHI) Ciara DXK24ZTLA-WF-Set 7.1kW Wall Split Wifi Air Conditioning System
DXK24ZTLA-WF / DXC24ZTLA-W Mitsubishi Heavy (MHI) Split
$1,849.08 Excl GST

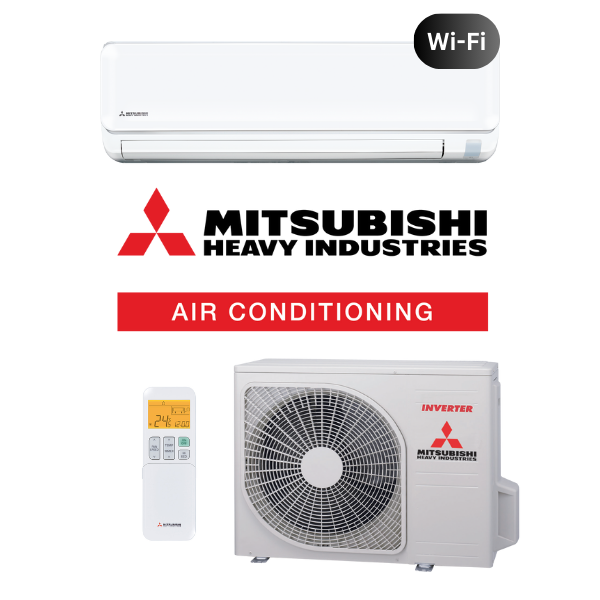

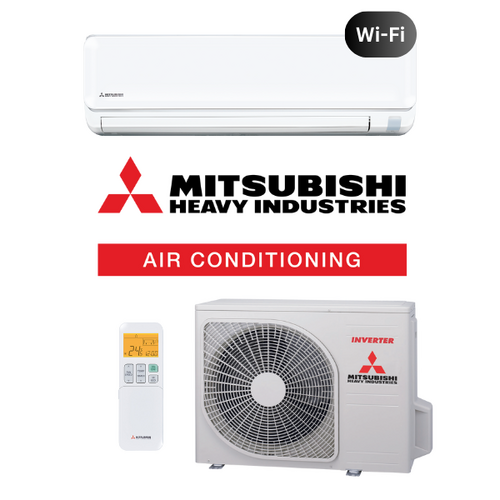

Mitsubishi Heavy Industries DXK24ZTLA-WF Ciara Series 7.1kW Reverse Cycle Split System (Built-In Wi-Fi) - Includes Outdoor Unit DXC24ZTLA-W and Wireless Controller
Mitsubishi Heavy Industries DXK24ZTLA-WF Ciara™ Series is MHI most robust model, boasting a 7.1 kW capacity. It's designed for extensive spaces, providing efficient climate control with a touch of Italian elegance. This model's built-in Wi-Fi and user-friendly features make it a standout choice for those seeking the best in air conditioning technology.
KEY FEATURES:
- Italian-Inspired Design: Features a minimalist and sophisticated Italian design.
- Integrated Wi-Fi and Voice Control: Fully compatible with voice control systems like Google and Alexa.
- Clean Air Technology: Advanced technology to ensure a clean and healthy air quality.
- Quiet Operation: Operates quietly, ideal for residential and quiet-sensitive areas.

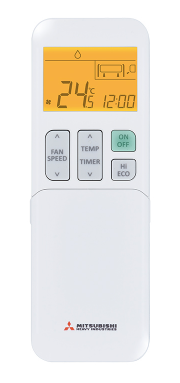

- User-Friendly Remote Control: Remote control is designed for ease of use, with a clear backlit display.
(DXK24ZTLA-WF-Set)
KEY FEATURES:
- Italian-Inspired Design: Features a minimalist and sophisticated Italian design.
- Integrated Wi-Fi and Voice Control: Fully compatible with voice control systems like Google and Alexa.
- Clean Air Technology: Advanced technology to ensure a clean and healthy air quality.
- Quiet Operation: Operates quietly, ideal for residential and quiet-sensitive areas.
- User-Friendly Remote Control: Remote control is designed for ease of use, with a clear backlit display.
System Name | DXK05ZTLA-WF-SET | DXK07ZTLA-WF-SET | DXK09ZTLA-WF-SET | DXK12ZTLA-WF-SET | DXK18ZTLA-WF-SET | DXK21ZTLA-WF-SET | DXK24ZTLA-WF-SET |
---|---|---|---|---|---|---|---|

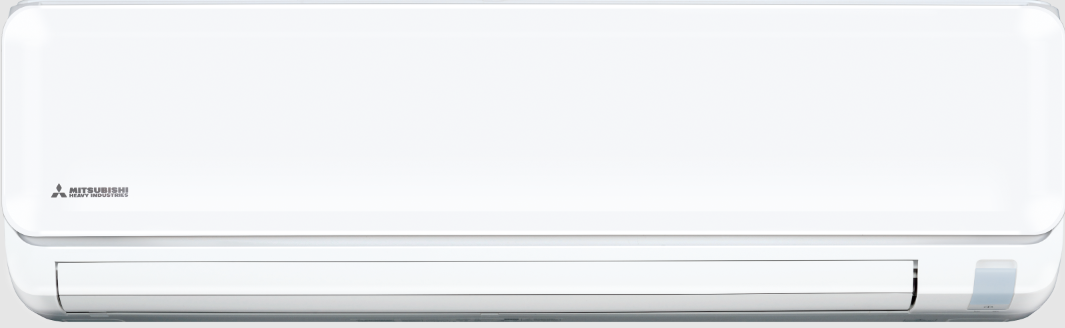

Indoor Unit | DXK05ZTLA-WF | DXK07ZTLA-WF | DXK09ZTLA-WF | DXK12ZTLA-WF | DXK18ZTLA-WF | DXK21ZTLA-WF | DXK24ZTLA-WF |

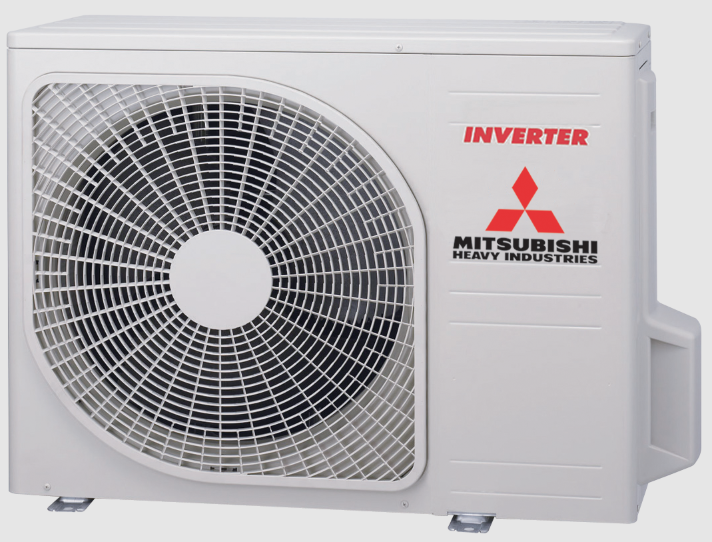

Outdoor Unit | DXC05ZTLA-W | DXC07ZTLA-W | DXC09ZTLA-W | DXC12ZTLA-W | DXC18ZTLA-W | DXC21ZTLA-W | DXC24ZTLA-W |
Power Supply | 1 Phase, 220 ~ 240V, 50Hz | ||||||
Cooling Capacity (kW) | 1.5 | 2.0 | 2.5 | 3.3 | 5.0 | 6.3 | 7.1 |
Heating Capacity (kW) | 2.0 | 2.7 | 3.0 | 3.8 | 5.8 | 7.1 | 8.0 |
EER/COP | 4.29 / 4.76 | 3.92 / 4.22 | 4.31 / 4.55 | 3.67 / 4.22 | 3.14 / 3.58 | 3.42 / 3.53 | 3.13 / 3.48 |
Outdoor Sound Power dB(A) | 56 | 57 | 58 | 61 | 64 | 67 | |
Refrigerant Type/Amount (kg) | R32 / 0.43 | R32 / 0.59 | R32 / 0.90 | R32 / 1.20 | |||
Max Pipe Length (m) | 20 | 25 | 30 | ||||
Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 15 | I.D.U Higher 20 / O.D.U Higher 20 | |||||
Indoor Dimensions (HxWxD) (mm) | 294 x 798 x 210 | 294 x 998 x 230 | |||||
Outdoor Dimensions (HxWxD) (mm) | 540 x 645(+57) x 275 | 595 x 780(+62) x 290 | 640 x 800(+71) x 290 | ||||
Indoor Weight (kg) | 8.5 | 9 | 9.5 | 12 | |||
Outdoor Weight (kg) | 22 | 24 | 33 | 42.5 | |||
Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 |
SKU | DXK24ZTLA-WF-Set |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 54.5000kg |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
