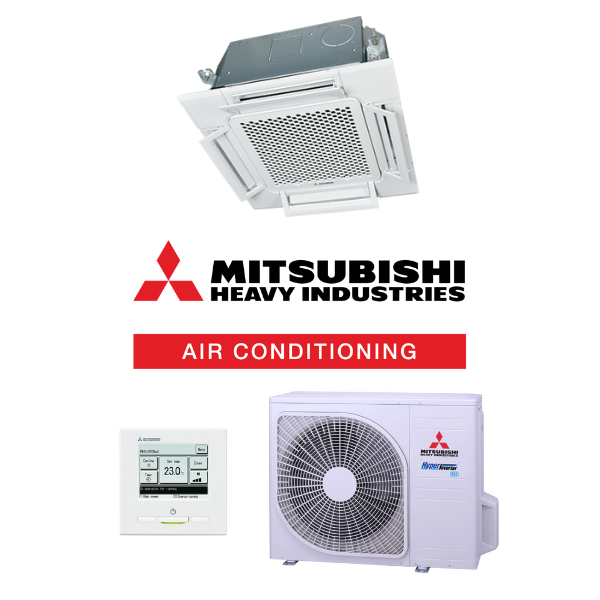

Mitsubishi Heavy (MHI) FDTC60ZSXAWVH-RC-EXZ3A 6.0kW Compact Cassette Air Conditioning System

FDTC60VH / SRC60ZSXA-W Mitsubishi Heavy (MHI) Cassette

$2,967.00 Incl GST
$2,697.27 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Mitsubishi Heavy Industries FDTC60ZSXAWVH 6.0 kW Compact Ceiling Cassette System

Key Features:

  • Compact Design
  • Individual Louvre Control
  • Clean Air Technology
  • Automatic Operation Mode Control
  • Sleep Timer
  • 600mm Built-in Drain Pump

(FDTC60ZSXAWVH-RC-EXZ3A)

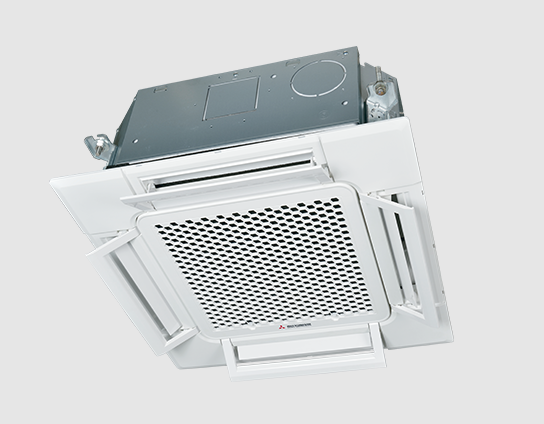

Indoor Unit FDTC60VH

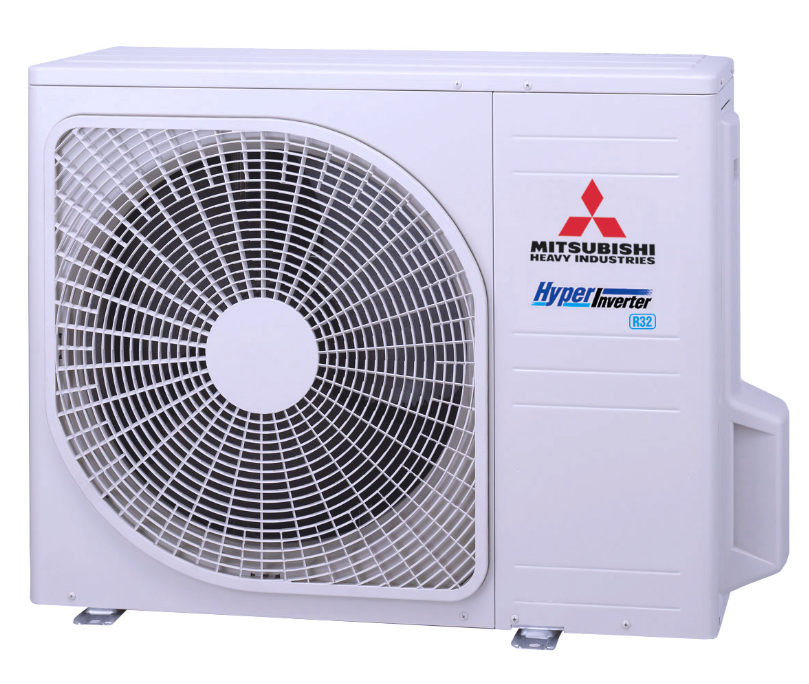

Outdoor Unit SRC60ZSXA-W
Panel TC-PSAE-5AW-E(Honeycome) or TC-PSAGE-5AW-E(Grid)
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 5.6
Heat (kW) 6.7
Capacity Range
Cool (kW) 1.1 - 6.3
Heat (kW) 0.6 - 6.7
Power Input (Rated)
Cool (kW) 1.73
Heat (kW) 2.14
Running Current
Cool (A) 7.60
Heat (A) 9.40
EER/COP 3.23 / 3.13
Dimensions (HxWxD)
Indoor (mm) 248 x 570 x 570
Outdoor (mm) 640 x 871 x 290
Weight
Indoor (kg) 14
Outdoor (kg) 45
Refrigerant Type R32
Refrigerant Amount (kg) 1.30
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 30
Max Level Difference
Indoor Higher (m) 20
Outdoor Higher (m) 20
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 12.70
Connection Type Flare
Indoor Airflow Rate
Cool (l/s) 233 / 200 / 167 / 133
Heat (l/s) 233 / 200 / 167 / 133
Indoor Sound Pressure Level (H/SL)
(dBA) 46 / 42 / 38 / 31
Outdoor Sound Pressure Level (H/SL)
(dBA) 54
Outdoor EPA Sound Power Level (H)
(dBA) 65
SKU FDTC60ZSXAWVH-RC-EXZ3A
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 61.5000kg
Unit Of Measure ea

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
