Mitsubishi Heavy (MHI) FDUA140AVSXWVH-RC-EXZ3A 14.0kW Ducted 3 Phase Air Conditioning System
FDUA140VH / FDCA140VSX-W Mitsubishi Heavy (MHI) Ducted
$4,630.91 Excl GST

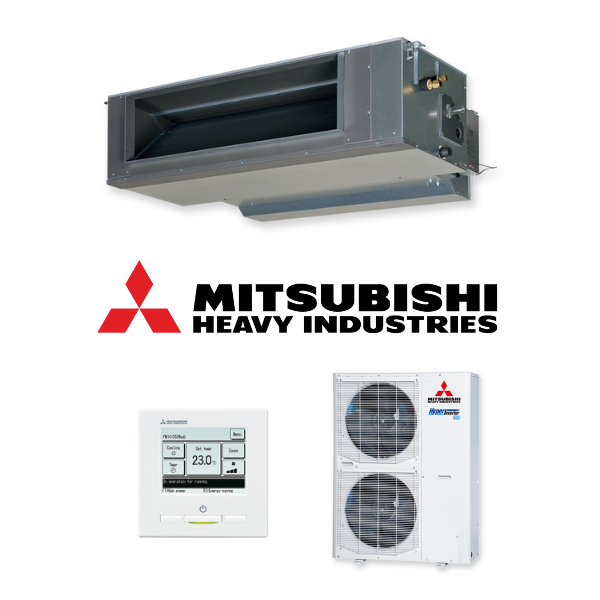

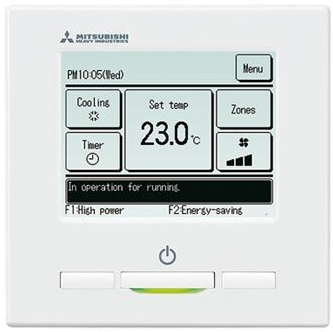

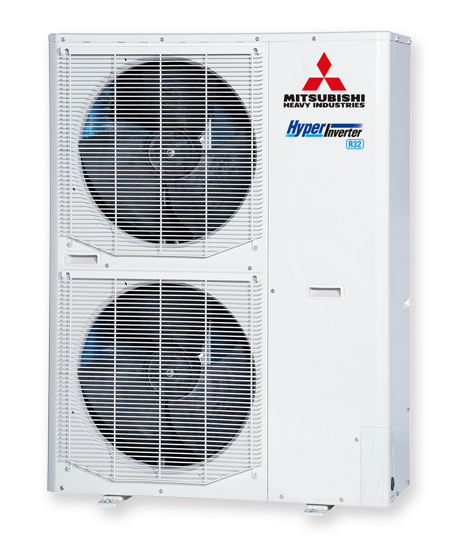

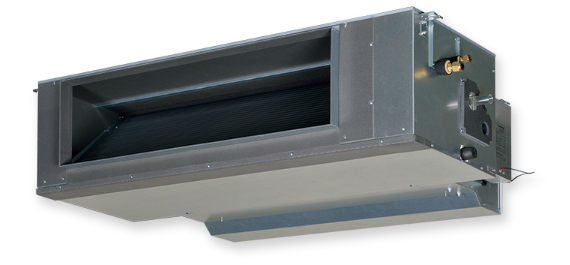

Mitsubishi Heavy Industries FDUA140AVSXWVH-RC-EXZ3A 14.0kW Three Phase Ducted System - Includes Outdoor Unit FDCA140VSX-W and Wall Controller
The FDUA series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 10.0kW up to 20kW, the FDUA series incorporates a range of convenient features and functions including high power mode, silent mode, eco mode and several timer and scheduling functions.
Key Features:
- Three phase model
- Automatic operation Mode
- Weekly / Sleep Timer
- Silent operation
- Wired and wireless control options
- High Power Mode for rapid cooling & heating
- Dry operation to reduce humidity
- Economy mode to reduce power consumption
(FDUA140AVSXWVH-RC-EXZ3A)
System Name | FDUA100AVSAWVH | FDUA125AVSXWVH | FDUA140AVSXWVH | FDUA160AVSAWVH | FDUA200AVSAWVH | FDUA250AVSAWVH |
---|---|---|---|---|---|---|
Indoor Unit | FDUA100VH | FDUA125VH | FDUA140VH | FDUA160VH | FDUA200VH | FDUA250VH |
Outdoor Unit | FDCA100VSA-W | FDCA125VSX-W | FDCA140VSX-W | FDCA160VSA-W | FDCA200VSA-W | FDCA250VSA-W |
Power Supply | 3 Phase, 380 ~ 415V, 50Hz | |||||
Cooling Capacity (kW) | 10.0 | 12.5 | 14.0 | 16.0 | 20.0 | 23.5 |
Heating Capacity (kW) | 11.2 | 14.0 | 16.0 | 18.0 | 22.4 | 28.0 |
Rated Power Input (Cool/Heat) (kW) | 3.05 / 2.87 | 3.83 / 3.86 | 4.02 / 4.19 | 4.68 / 4.60 | 5.78 / 5.44 | 7.70 / 7.70 |
EER/COP | 3.28 / 3.90 | 3.26 / 3.80 | 3.48 / 3.82 | 3.42 / 3.91 | 3.46 / 4.12 | 3.16 / 3.67 |
Duct Sizes (Supply/Return) (mm) | 348 x 898 / 348 x 898 | 298 x 1064 / 2 X dia400 | 250 x 1450 / 250 x 1450 | |||
Max External Static Pressure (Pa) | 200 | 150 | 200 | |||
Refrigerant Type/Amount (kg) | R32 / 3.3 | R32 / 4.0 | R32 / 5.1 | |||
Max Pipe Length (m) | 50 | 100 | 70 | |||
Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 50 | I.D.U Higher 15 / O.D.U Higher 30 | I.D.U Higher 15 / O.D.U Higher 50 | |||
Indoor Dimensions (HxWxD) (mm) | 398 x 1150 x 650 | 398 x 1450 x 930 | 379 x 1600 x 893 | |||
Outdoor Dimensions (HxWxD) (mm) | 845 x 970 x 370 | 1300 x 970 x 370 | 1505 x 970 x 370 | |||
Indoor Weight (kg) | 54 | 52 | 66 | 88 | ||
Outdoor Weight (kg) | 78 | 99 | 145 | |||
Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | 12.7 / 22.2 |
SKU | FDUA140AVSXWVH-RC-EXZ3A |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 165.0000kg |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
