Mitsubishi Heavy (MHI) FDUA250AVSAWVH-RC-EXZ3A 23.5kW Ducted 3 Phase Air Conditioning System
FDUA250VH / FDCA250VSA-W Mitsubishi Heavy (MHI) Ducted
$6,800.91 Excl GST

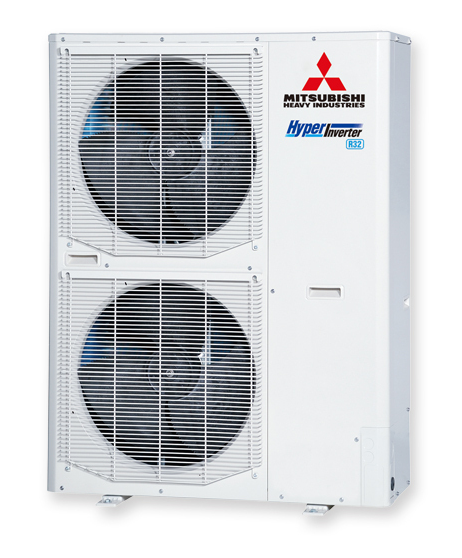

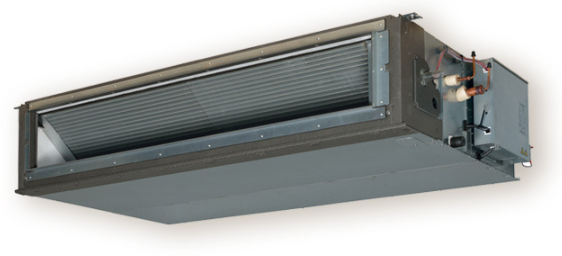

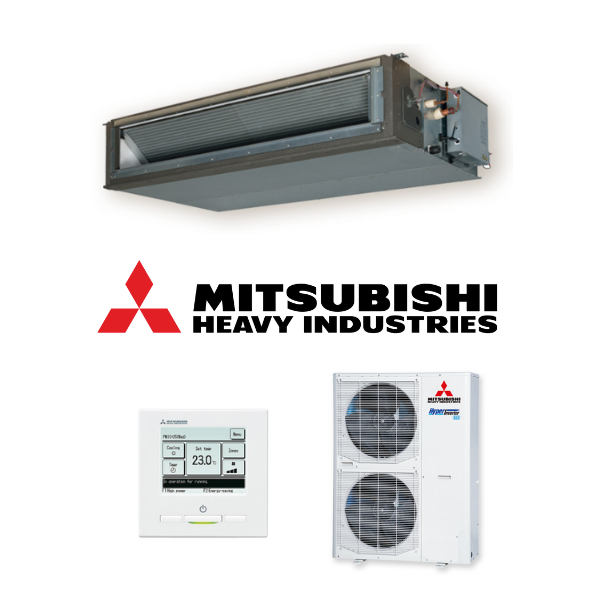

Mitsubishi Heavy Industries FDUA250AVSAWVH-RC-EXZ3A 23.5kW Three Phase Ducted System - Includes Outdoor Unit FDCA250VSA-W and Wall Controller
The FDUA series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 10.0kW up to 20kW, the FDUA series incorporates a range of convenient features and functions including high power mode, silent mode, eco mode and several timer and scheduling functions.
Key Features:
- Three phase model
- Automatic operation Mode
- Weekly / Sleep Timer
- Silent operation
- Wired and wireless control options
- High Power Mode for rapid cooling & heating
- Dry operation to reduce humidity
- Economy mode to reduce power consumption
(FDUA250AVSAWVH-RC-EXZ3A)
| System Name | FDUA100AVSAWVH | FDUA125AVSXWVH | FDUA140AVSXWVH | FDUA160AVSAWVH | FDUA200AVSAWVH | FDUA250AVSAWVH |
|---|---|---|---|---|---|---|
| Indoor Unit | FDUA100VH | FDUA125VH | FDUA140VH | FDUA160VH | FDUA200VH | FDUA250VH |
| Outdoor Unit | FDCA100VSA-W | FDCA125VSX-W | FDCA140VSX-W | FDCA160VSA-W | FDCA200VSA-W | FDCA250VSA-W |
| Power Supply | 3 Phase, 380 ~ 415V, 50Hz | |||||
| Cooling Capacity (kW) | 10.0 | 12.5 | 14.0 | 16.0 | 20.0 | 23.5 |
| Heating Capacity (kW) | 11.2 | 14.0 | 16.0 | 18.0 | 22.4 | 28.0 |
| Rated Power Input (Cool/Heat) (kW) | 3.05 / 2.87 | 3.83 / 3.86 | 4.02 / 4.19 | 4.68 / 4.60 | 5.78 / 5.44 | 7.70 / 7.70 |
| EER/COP | 3.28 / 3.90 | 3.26 / 3.80 | 3.48 / 3.82 | 3.42 / 3.91 | 3.46 / 4.12 | 3.16 / 3.67 |
| Duct Sizes (Supply/Return) (mm) | 348 x 898 / 348 x 898 | 298 x 1064 / 2 X dia400 | 250 x 1450 / 250 x 1450 | |||
| Max External Static Pressure (Pa) | 200 | 150 | 200 | |||
| Refrigerant Type/Amount (kg) | R32 / 3.3 | R32 / 4.0 | R32 / 5.1 | |||
| Max Pipe Length (m) | 50 | 100 | 70 | |||
| Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 50 | I.D.U Higher 15 / O.D.U Higher 30 | I.D.U Higher 15 / O.D.U Higher 50 | |||
| Indoor Dimensions (HxWxD) (mm) | 398 x 1150 x 650 | 398 x 1450 x 930 | 379 x 1600 x 893 | |||
| Outdoor Dimensions (HxWxD) (mm) | 845 x 970 x 370 | 1300 x 970 x 370 | 1505 x 970 x 370 | |||
| Indoor Weight (kg) | 54 | 52 | 66 | 88 | ||
| Outdoor Weight (kg) | 78 | 99 | 145 | |||
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | 12.7 / 22.2 | ||||
| SKU | FDUA250AVSAWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 233.0000kg |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
