Panasonic S-25PY3E/U-25PZ3R5 2.5kW Mini Cassette Single Phase R32 Air Conditioning System
S-25PY3E / U-25PZ3R5 Pansonic Mini Cassette
$1,854.54 Excl GST

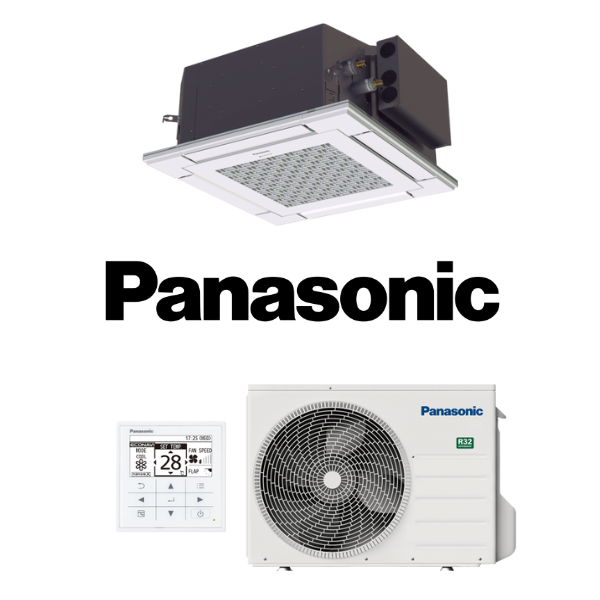

Panasonic S-25PY3E/U-25PZ3R5 2.5kW Low Profile Single Phase Mini Cassette Air Conditioner - Includes Outdoor Unit and Wall Controller

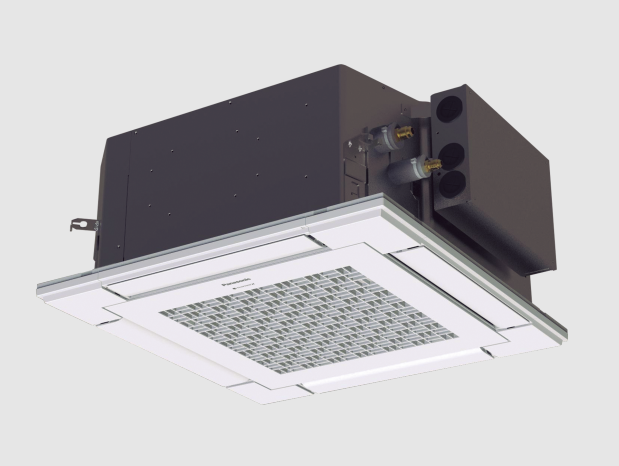

This Mini Cassette designed with a low profile in mind fits comfortably into any standard 60 x 60cm ceiling grid with no alterations needed.
Making this mini Cassette perfect for small comercial applications. especially those with lower ceilings.
Features:
- More Efficient Air Protection with Nanoe X Generator Mark 2.
- Pleasant Airflow - Cooling Area Quickly and Individual Flap Control.
- Flat and Horizontal Design that Conditions the Interior.
- Includes Wired Remote Controller CZ-RTC5B.
- Flexible Installation - Compact Design, Lighter and Slimmer, Drain Height of up to 850mm from the Ceiling Surface.
(S-25PY3E_U-25PZ3R5)
| System | S-25PY3E/U-25PZ3R5 | S-36PY3E/U-36PZ3R5 | S-50PY3E/U-50PZ3R5 | S-60PY3E/U-60PZ3R5 | |
|---|---|---|---|---|---|
| Indoor Unit | S-25PY3E | S-36PY3E | S-50PY3E | S-60PY3E | |
| Outdoor Unit | U-25PZ3R5 | U-36PZ3R5 | U-50PZ3R5 | U-60PZ3R5 | |
| Cooling Capacity Rated/Min-Max | kW | 2.5 (1.3-3.9) | 3.6 (1.5-4.0) | 5.0 (1.5-6.4) | 6.0 (2.0-7.0) |
| Heating Capacity Rated/Min-Max | 3.2 (1.3-4.6) | 3.6 (1.3-4.6) | 5.0 (1.5-6.4) | 6.0 (1.8-7.0) | |
| Power Supply | 1 Phase, 230-240V, 50Hz | ||||
| EER/COP | W/W | 4.46 / 4.44 | 4.55 / 4.29 | 3.50 / 3.94 | 3.39 / 3.61 |
| Power Input Min-Max Cooling | kW | 0.56 (0.27 - 1.1) | 0.91 (0.28 - 1.12) | 1.43 (0.27 - 2.2) | 1.77 (0.34 - 2.53) |
| Power Input Rated/Min-Max Heating | 0.72 (0.25 - 1.35) | 0.84 (0.25 - 1.36) | 1.27 (0.27 - 2.2) | 1.66 (0.39 - 2.45) | |
| Indoor Unit | |||||
| Current (Cooling) | A | 2.55-2.45 | 4.05-3.85 | 6.35-6.10 | 8.10-7.75 |
| Current (Heating) | 3.25-3.10 | 3.75-3.60 | 5.70-5.45 | 7.35-7.05 | |
| Dimensions HxWxD | mm | 243 x 575 x 575 | |||
| Net Weight | kg | 15 | |||
| Air Volume Cool/Heat | L/s | 141 / 141 | 158 / 158 | 200 / 200 | 233 / 233 |
| Sound Pressure Level H/M/L Cool/Heat | dBA | 31 / 28 / 25 | 34 / 30 / 25 | 39 / 34 / 27 | 43 / 37 / 31 |
| Sound Power Level H/M/L Cool/Heat | 46 / 43 / 40 | 49 / 45 / 40 | 54 / 49 / 42 | 58 / 52 / 46 | |

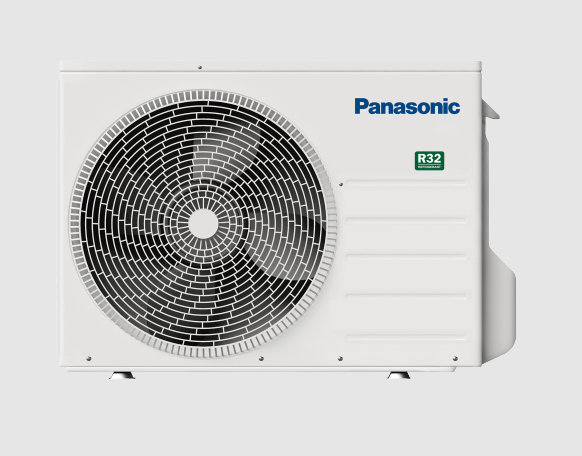

| Outdoor Unit | |||||
| Dimensions HxWxD | mm | 619 x 824 x 299 | 695 x 875 x 320 | ||
| Net Weight | kg | 31 | 35 | 43 | |
| Piping Connections Liquid/Gas | mm | 6.35 / 12.7 | |||
| Pipe Length Min-Max | 3-20 | 3-30 | 3-40 | ||
| Elevation Difference | m | 15 | 30 | ||
| Operation Ranges Cool/Heat | C | -10 to 46 / -15 to 24 | |||
| SKU | S-25PY3E_U-25PZ3R5 |
| Brand | Panasonic |
| Shipping Weight | 46.0000kg |
| Shipping Cubic | 0.232849000m3 |
| Unit Of Measure | ea |
