Rinnai DINLR15B1SA-SET 14.0kW Ducted 1 Phase Air Conditioning System

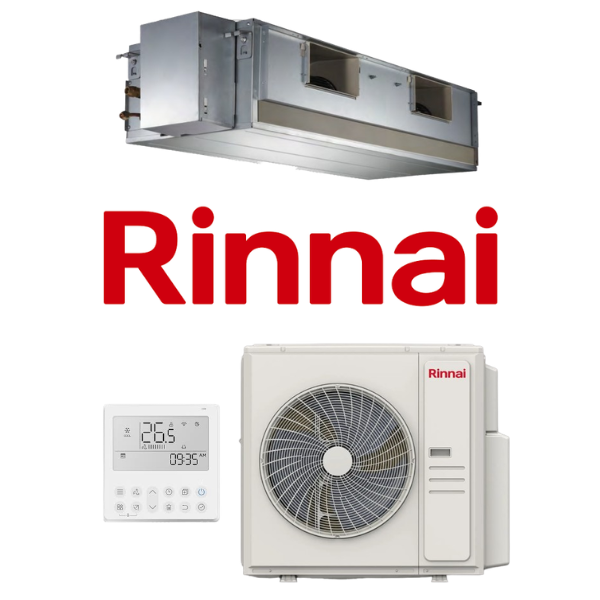

Rinnai DINLR15B1SA-SET 14.0kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit DONSR15B1LA

Quiet, connected, energy-efficient comfort. From efficient temperature control to connected convenience, this single fan unit ducted air conditioner delivers whole-home comfort through inverter technology, tailored zoning, smart connectivity, and reliable day-to-day performance.

Key Features:

Flexible 8 Zone Climate Control - Enjoy personalised comfort with independent control of up to eight zones, allowing you to switch each zone on or off and adjust temperatures directly from the main controller.
Self-Cleaning Air Purity - Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
Flexible Installation Made Simple - The innovative splittable design allows the unit to be transported in separate sections and assembled on-site, making installation faster and easier in homes with limited roof space. (Available in 15.0kW, 18.0kW, 20.0kW, and 24.0kW models)
Long-Lasting Protection - Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
Eco-Friendly R32 Refrigerant
Wi-Fi Control and Remote Schedules
Humidity Control - Manage room humidity with Dry Mode for balanced comfort
Quiet Operation

(DINLR15B1SA-SET)

System	DINLR07B1A-SET	DINLR09B1A-SET	DINLR11B1A-SET	DINLR13B1A-SET	DINLR15B1SA-SET
Rated Cooling Capacity (kW)	7.3	9.0	10.5	12.6	14.0
Rated Heating Capacity (kW)	7.5	10.5	12.5	14.5	16.8
Rated Input Power Cool/Heat (W)	2139 / 1842	2610 / 2400	3145 / 2980	3765 / 3550	4180 / 4300
Rated Input Current Cool/Heat (A)	9.3 / 8.2	11.9 / 10.6	14.1 / 13.5	16.6 / 15.4	18.4 / 18.9
Power Supply (V / Ph / Hz)	220-240 / 1 / 50
AEER / ACOP	3.39 / 4.04	3.40 / 4.30	3.30 / 4.14	3.32 / 4.05	3.32 / 3.87
TCSPF (Hot/Avg/Cold)	6.08 / 5.51 / 5.85	5.82 / 5.11 / 5.32	5.94 / 5.24 / 5.5	5.81 / 5.24 / 5.5	5.6 / 5.07 / 5.3
HSPF (Hot/Avg/Cold)	5.16 / 4.5 / 4.05	5.18 / 4.63 / 4.08	5.22 / 4.5 / 3.84	5.11 / 4.52 / 4.02	5.0 / 4.32 / 3.74

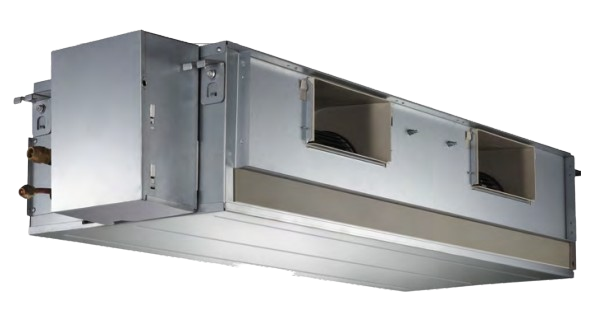

Indoor Unit	DINLR07B1A	DINLR09B1A	DINLR11B1A	DINLR13B1A	DINLR15B1SA
Airflow with Filter (Turbo) (L/s)	488	638	727	920	922
Maximum External Static Pressure (Pa)	160		200
Sound Pressure Level @1.5m (dBA)	41 / 38 / 36 / 33 / 28	46 / 40 / 38 / 36 / 28	45 / 39 / 37.5 / 36 / 30	52 / 46 / 44 / 42 / 34	50 / 46.5 / 44 / 42 / 36
Sound Power Level (dBA)	59.9	58.3	57.7	62.0	63.0
Net Dimensions (HxWxD) (mm)	245x1000x750	245x1200x750	300x1200x750		380x1400x870
Shipping Dimensions (HxWxD) (mm)	304x1225x860	304x1425x860	359x1425x860		477x1650x1065
Net/Gross Weight (kg)	31.5 / 37.7	40.5 / 47.3	42.9 / 49.8	45 / 51.9	65.0 / 80.9
Supply Air Duct Connection HxW (mm)	178x827	178x1027	233x1027		295x1152
Return Air Duct Connection HxW (mm)	212x892	212x1092	267x1092		400x2 (Oval)
Moisture Removal (L/h)	2.95	2.675	1.922	3.559	4.42
Controller Type	Wired Programmable Controller with Wi-Fi Control
Operating Range Cool/Heat (C)	16 to 32 / 0 to 30

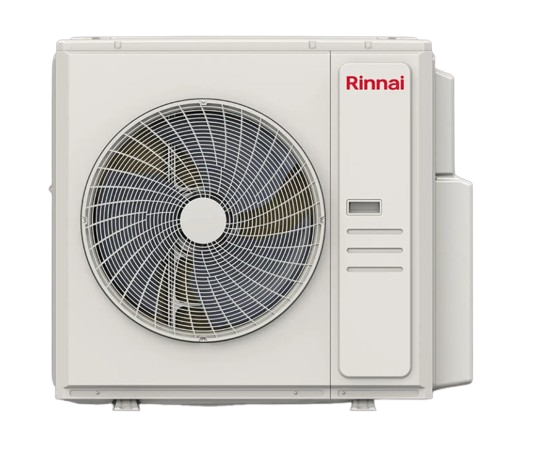

Outdoor Unit	DONSR07B1LA	DONSR09B1LA	DONSR11B1LA	DONSR13B1LA	DONSR15B1TA
Sound Pressure Level @1m (dBA)	61	62		64	63
Sound Power Level (dBA)	66.3	68.1		70.7	71.2
Net Dimensions (HxWxD) (mm)	673x890x342	810x946x410		975x980x415
Shipping Dimensions (HxWxD) (mm)	815x1030x438	965x1090x500		1120x1145x500
Net/Gross Weight (kg)	44.0 / 57.5	75.2 / 91.4		89.0 / 103.2
Refrigerant Type/Charged Volume (kg)	R32 / 1.5	R32 / 2.6		R32 / 3.5
Pre-Charged Piping Length (m)	20
Liquid/Gas Piping Connections (mm)	9.5 / 15.9
Maximum/Minimum Pipe Length (m)	50 / 3	75 / 3
Maximum Vertical Separation (m)	25	30
Operating Range Cool/Heat (C)	-15 to 50 / -20 to 24
