Best Prices Rinnai MON5H11B1LA 11.6kW Multi Air Conditioner Low Cost Install Brisbane Sydney

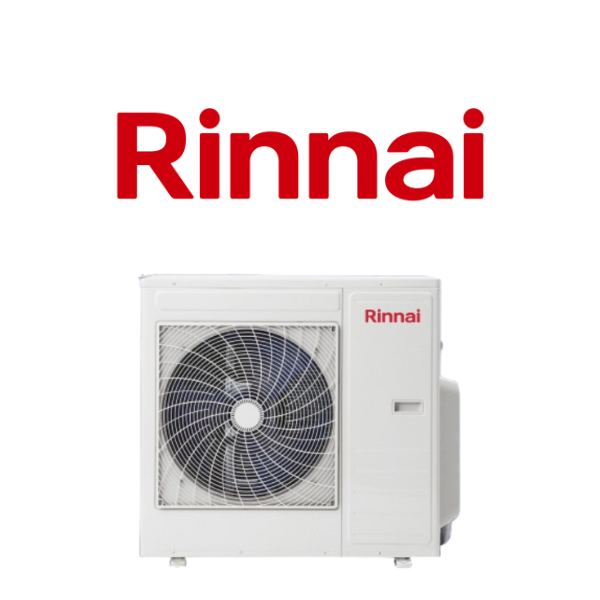

Rinnai MON5H11B1LA 11.6kW Outdoor Only Multi Air Conditioning Unit (5 Connectable Units)

*This is an Outdoor Unit Only, not a complete system. An Indoor Multi Unit is Required.

Rinnai MON5H11B1LA 11.6kW Outdoor Multi Air Conditioning Unit (5 Connectable Units)

Designed to connect up to five indoor units, these versatile outdoor units deliver efficient performance, intelligent Wi-Fi control, and reliable comfort for homes and businesses. They are compatible with the Rinnai Multi Split Range, allowing a single outdoor unit to connect and efficiently control multiple indoor units throughout your space.

Features

Residential and commercial use - A versatile solution designed to deliver reliable climate control across residential and light commercial applications.
Wi-Fi Control - Control your air conditioning remotely using Wi-Fi connectivity for greater convenience and flexibility.
Smart 3D DC inverter - Advanced smart 3D DC inverter technology helps optimise performance while reducing energy consumption.
Demand control - Manage energy usage more effectively with demand control functionality that helps reduce peak power consumption

(MON5H11B1LA)

Outdoor Unit Name	MON2H05B1LA	MON3H07B1LA	MON4H09B1LA	MON5H11B1LA	MON5H14B1LA	MON6H19B1TA
Power Supply	220-240 / 1 / 50
Cooling Capacity Rated/Min-Max (kW)	5.4 (1.0-7.2)	7.2 (3.2-8.2)	9.0 (2.7-10.3)	11.6 (2.6-15.1)	13.5 (2.6-15.1)	19.0 (5.4-19.6)
Heating Capacity Rated/Min-Max (kW)	5.4 (1.9-5.9)	7.3 (2.1-8.8)	9.5 (2.8-10.3)	12.5 (2.6-16.3)	14.0 (2.6-16.3)	21.5 (3.9-22.6)
Rated Input Power Cool/Heat (kW)	1.48 / 1.32	1.97 / 1.61	2.39 / 2.32	3.13 / 2.78	3.91 / 3.26	5.58 / 5.1
Rated Input Current Cool/Heat (A)	6.7 / 6.0	9.1 / 7.6	10.8 / 10.5	14.0 / 12.4	17.5 / 14.5	24.1 / 29.0
AEER / ACOP	3.58 / 4.0	3.58 / 4.41	3.7 / 4.01	3.64 / 4.42	3.4 / 4.22	3.42 / 4.16
Maximum Input Current (A)	12	17.5	19	30		33
Recommended Circuit Breaker (A)	25			32		40
Compressor Type	Inverter Rotary	Inverter Twin Rotary
Sound Power Level dBA	61	65	68		70	72
Net Dimensions (HxWxD) (mm)	554x805x330	673x890x342	810x946x410	975x980x451		1333x952x415
Gross Dimensions (HxWxD) (mm)	615x915x370	815x1030x438	965x1090x500	1120x1145x500		1500x1095x495
Net/Gross Weight (kg)	34.6 / 37.7	48.0 / 61.5	66.2 / 83.0	91.0 / 106.4		110.6 / 124.9
Refrigerant Type / Precharge (g)	R32 / 1250	R32 / 1850	R32 / 2400	R32 / 3600		R32 / 4300
Operation Range Cool/Heat (C)	-15 to 50 / -15 to 24
Max System Pipe Length (m)	40	60	80
Pre-Charged Length (m)	20	30	40	50		60
Max Pipe Length per IDU (m)	25	30	35
Max Vertical Diff ODU Above (m)	15
Max Vertical Diff ODU Below (m)	15
Max Height Diff Between IDU (m)	10
Pipe Sizes (mm) (Liquid)	2 x 6.35	3 x 6.35	4 x 6.35	5 x 6.35		6 x 6.35
Pipe Sizes (mm) (Gas)	2 x 9.52	3 x 9.52	3 x 9.52 + 1 x 12.7	3 x 9.52 + 2 x 12.7		4 x 9.52 + 2 x 12.7

SKU	MON5H11B1LA
Brand	Rinnai
Shipping Weight	106.4000kg
Shipping Width	1.145m
Shipping Height	1.120m
Shipping Length	0.500m
Shipping Cubic	0.641200000m3
Unit Of Measure	ea
