Panasonic S-140PF1E5B 14.0kW Slimline 1 Phase Ducted System

S-140PF1E5B/U-140PZ2R8 Ducted System Air Conditioner

$5,255.00 Incl GST
$4,777.27 Excl GST
Sold Out

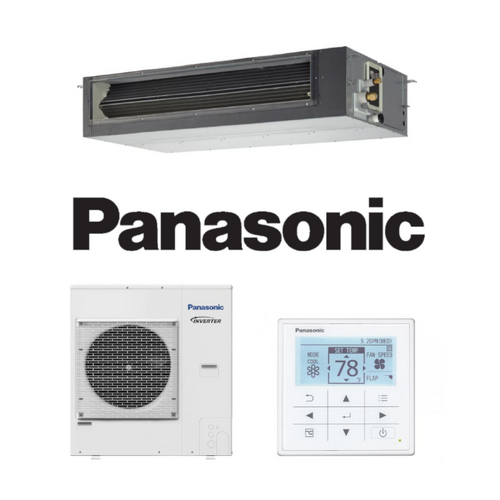

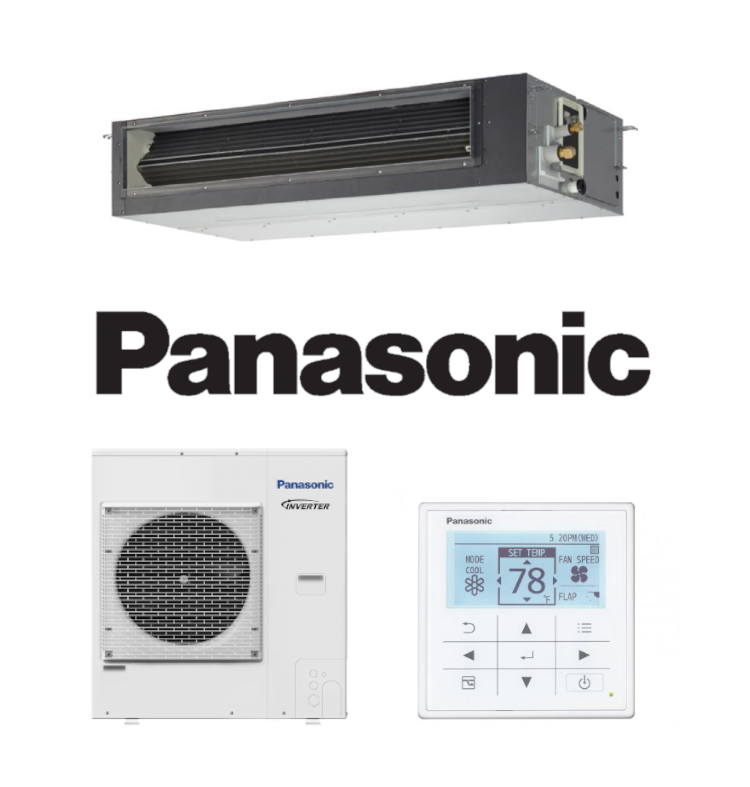

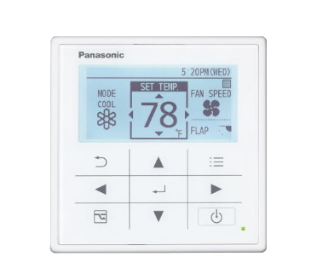

Panasonic S-140PF1E5B 14.0kW Slimline 3 Phase Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-140PZ2R8

Control all aspects of your environment with exceptional performance and quiet operation. A perfect solution when ceiling heights are restricted.

Features:

  • Variable external static pressure control
  • System example
  • More powerful drain pump

(S-140PF1E5B-3P)

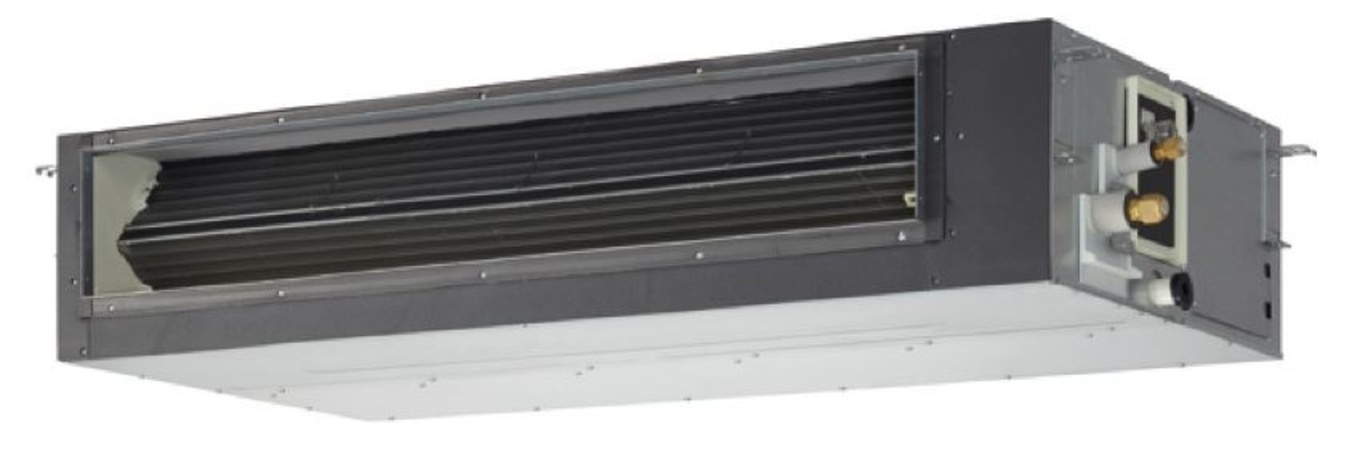

INDOOR UNIT S-140PF1E5B

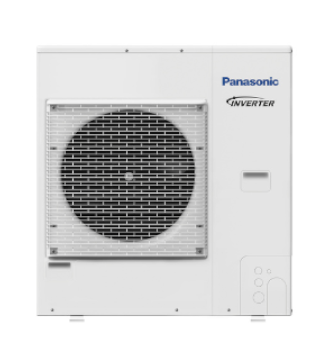

OUTDOOR UNIT U-140PZ2R8
Rated Capacity Cool (kW) 14.0
Heat (kW) 14.0
Capacity Range Cool (kW) (3.3 - 15.0)
Heat (kW) (3.4 - 16.0)
Power Input (Rated) Cool (kW) 4.40
Heat (kW) 3.69
E.E.R./C.O.P. Cool/Heat 3.18/3.79
Air Flow Rate (Rated) I/S 600
Indoor Sound Level (H/M/L) dBA 62/58/55
Piping Length (m) 5 - 50
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 290 x 1400 x 700
Outdoor (mm) 996 x 980 x 370
Weight Indoor(kg) 45
Outdoor(kg) 94
Power Supply V/Hz 3 Phase, 415V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
SKU S-140PF1E5B-3P
Brand Panasonic
Shipping Weight 139.0000kg
Shipping Cubic 0.645350000m3
