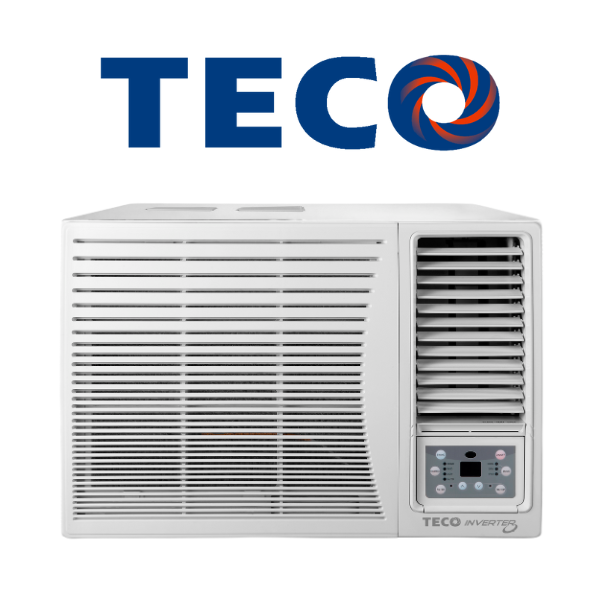

TECO 3.6kW TWW36HVAG Inverter Window/Wall Air Conditioner

The TECO 3.6kW Inverter Window/Wall Air Conditioner combines robust performance with the latest Inverter technology offers energy efficiency, making it ideal for medium-sized spaces. With its advanced Gold Fin Protection and highdensity filters, this unit ensures long-lasting operation and superior air quality. Its cooling and heating functions provide year-round comfort, while the sleek design ensures easy installation.

Key Features:

Cooling Capacity: 3.6kW
Heating Capacity: 3.5kW – Reliable warmth during winter months.
Gold Fin Protection: Resists wear and tear, extending unit lifespan.
High-Density Filters: Reduces fine particles for cleaner indoor air.
Electronic Control with Remote Controller: Simple and responsive remote control allows for customisable and effortless temperature adjustments.
Intelligent Preheating: Guarantees seamless heating performance by warming up critical components before activation.
Filter Dirty Alarm: Provides a timely notification for filter maintenance to ensure continuous high efficiency and clean airflow.
Auto Fan Function: Automatically shifts fan speed to match the room’s cooling or heating demands, ensuring energy efficiency.
Low Voltage Startup: Protects the air conditioner from power irregularities, delivering stable performance even during voltage drops.
Silver Ion Sterilising Filter: Enhances indoor air quality by eliminating bacteria, odours, and allergens effectively.

(TWW36HVAG)

Window/Wall Unit	TWW28HVAG	TWW36HVAG	TWW53HVAG
Power Supply (V-Ph-Hz)	220~240 / 1 / 50
Cooling Capacity (kW)	2.8	3.6	5.3
Heating Capacity (kW)	2.43	3.5	4.8
Power Input Cool/Heat (W)	850 / 770	1085 / 1065	1600 / 1400
Power Current Cool/Heat (A)	4.5 / 4.5	5.2 / 5.1	7.0 / 6.6
EER/COP	3.294 / 3.156	3.318 / 3.286	3.313 / 3.429
Cooling - Star Rating (Hot/Mix/Cold)	2.5 / 2 / 2		2.5 / 2.5 / 2.5
Cooling - Energy Consumption (H/M/C) (kWh/yr)	892 / 304 / 202	1108 / 377 / 247	1624 / 544 / 356
Heating - Star Rating (Hot/Mix/Cold)	1.5 / 0.5 / 0.5		2 / 1.5 / 1.5
Heating - Energy Consumption (H/M/C) (kWh/yr)	71 / 559 / 1533	95 / 862 / 2275	118 / 760 / 2001
Noise (Energy Label - Indoor/Outdoor) dB(A)	60 / 66	64 / 70	65 / 69
Air Flow Volume H/M/L (L/s)	117 / 106 / 94	153 / 131 / 111	222 / 194 /172
Dehumidifying Volume (L/h)	1.6	1.4	2.2
Application Area (m²)	16-24		23-24
Maximum Allowable Pressure (MPa)	4.3
Evaporater Coil Hydrophilic Coating	Blue
Condensor Coil Hydrophilic Coating	Gold
Refrigerant	R32
Weight (Net/Gross) (kg)	38 / 41	46 / 50	56 / 60
Unit Dimensions (H x W x D) (mm)	375 x 560 x 708	428 x 660 x 700	428 x 660 x 800
Packing Dimensions (H x W x D) (mm)	425 x 623 x 806	505 x 739 x 793	505 x 739 x 890
Indoor Side - Fan Type	Centrifugal
Indoor Side - Set Temperature Range (^oC)	16 ~ 30
Indoor Side - Sound Pressure Level H/M/L dB(A)	49 / 47 / 45	50 / 47 / 45	54 / 52 / 50
Indoor Side - Sound Power Level H/M/L dB(A)	59 / 57 / 55	60 / 57 / 55	64 / 62 / 60
Outdoor Side - Ambient Temp Range Cool/Heat (^oC)	18 ~ 43 / -7 ~ 24
Outdoor Side - Sound Pressure Level H/M/L dB(A)	58 / 56 / 54	62 / 59 / 57	61 / 59 / 57
Outdoor Side - Sound Power Level H/M/L dB(A)	68 / 66 / 64	72 / 69 / 67	71 / 69 / 67
