TECO TDS-TSO160HVSWDG 16.0kW 1 Phase Ducted Air Conditioning System

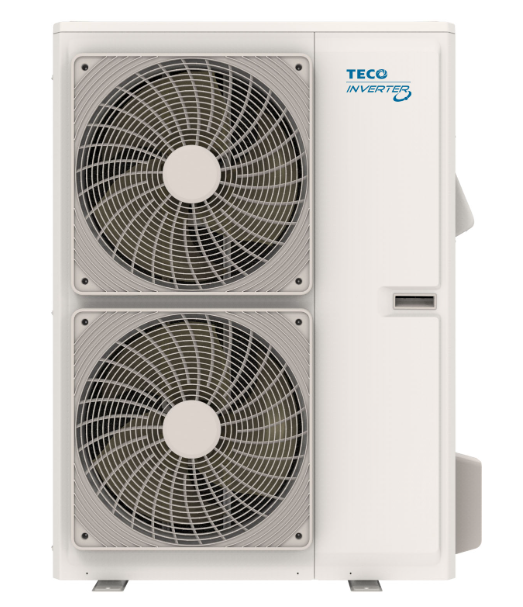

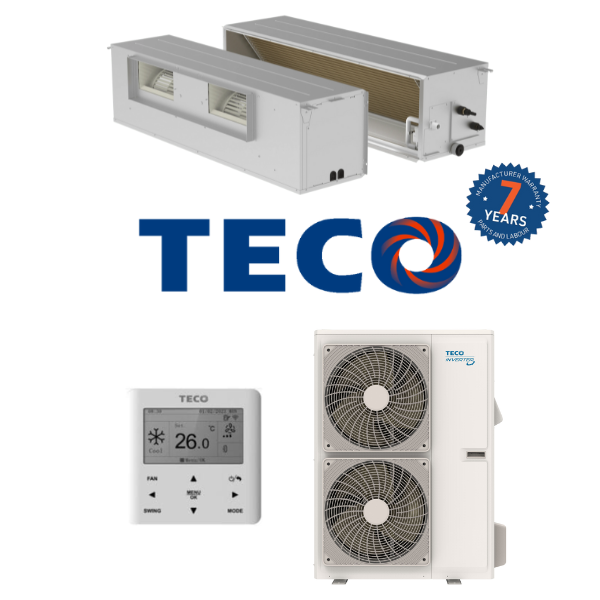

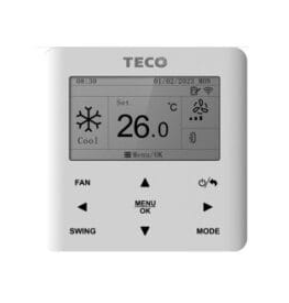

TECO TDS-TSO160HVSWDG 16.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller

The TECO 16.0kW Ducted System offers high-capacity climate control, making it the ideal solution for large homes and light commercial spaces that demand powerful and efficient airflow. Its innovative splittable indoor unit design ensures easier installation and maintenance, even in complex ceiling configurations, providing unmatched flexibility. With a maximum ESP setting of 200Pa , the system delivers strong and consistent airflow across multiple zones, ensuring optimal comfort throughout your space. The outdoor Condenser coil is protected with a Blackfin coating that offers superior corrosion resistance, while the indoor Evaporator coil benefits from a Goldfin coating that enhances durability by preventing coil degradation over time. An integrated drain pump simplifies installation by efficiently managing condensate, and the in-built WiFi enables seamless remote control and real-time monitoring.

Features:

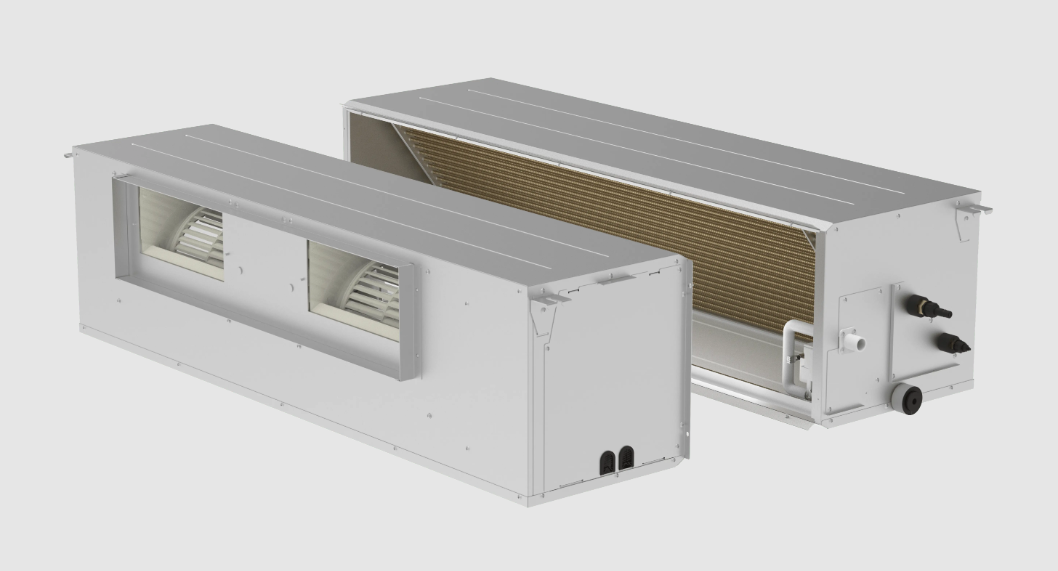

Splittable Indoor Unit
Dynamic Temperature Control
Plasmacluster Ion Sterilisation
In-Built WiFi
In-Built Drain Pump
Blackfin Coating on Outdoor Unit
Goldfin Coating on Indoor Unit
High External Static Pressure (ESP) Control
X-Fan Function to remove excessive moisture accumulation on shut down
Fresh Air Intake Control
Wide Voltage Range Operation
BMS Control Capability
Insect-Proof Outdoor Unit Electric Box – Sealed to ≤3mm.
DRED Enabled
Refrigerant Radiative Technology

(TDS-TSO160HVSWDG)

System		TDS-TSO100HVWDG	TDS-TSO125HVSWDG	TDS-TSO140HVSWDG	TDS-TSO160HVSWDG
Indoor Unit		TDS100HVWDG	TDS125HVSWDG	TDS140HVSWDG	TDS160HVSWDG
Outdoor Unit		TSO100HVWDG	TSO125HVWDG	TSO140HVWDG	TSO160HVWDG
Power Supply		1 Phase, 220-240V, 50Hz
Cooling Capacity Rated/Min-Max	kW	10.0 (3.0-11.7)	12.5 (3.6-14.0)	14.0 (4.2-16.0)	16.0 (4.8-18.0)
Heating Capacity Rated/Min-Max	kW	12.0 (3.6-13.5)	14.0 (4.2-15.0)	16.0 (4.8-17.0)	18.0 (5.4-20.0)
AEER/ACOP		3.7 / 4.0	3.4 / 3.8	3.5 / 3.8	3.3 / 3.8
Cooling Star Rating (Hot/Avg/Cold)		4 / 3.5 / 4		3.5 / 3 / 3	3.5 / 3 / 3.5
Heating Star Rating (Hot/Avg/Cold)		3 / 2.5 / 2	3.5 / 2.5 / 2	3 / 2.5 / 2	3.5 / 2.5 / 2
Cooling Current Input Range	A	2.3 - 20.0	3.2 - 25.0	3.7 - 28.0	4.1 - 32.0
Heating Current Input Range	A	2.7 - 20.0	3.7 - 25.0	4.1 - 28.0	4.6 - 32.0
Standby Power Consumption	W	4.0	5.1	12.5	9.8
Indoor Airflow Volume P-Hi/H/M/L	m3/h	2100 / 1900 / 1700 / 1400	2800 / 2500 / 2200 / 1800	3200 / 2800 / 2400 / 2000	3500 / 3100 / 2700 / 2300
Indoor Sound Pressure Level H/M/L	dBA	42 / 41 / 40	42 / 40 / 39	45 / 43 / 41	50 / 48 / 46
Outdoor Sound Pressure Level (H)	dBA	58	59		60
Outdoor Fan Quantity		1		2
Operation Range Cool/Heat	C	-15 to 52 / -15 to 24
Refrigerant Type/Charge	kg	R32 / 2.2	R32 / 2.4	R32 / 2.8	R32 / 3.3
Connection Pipe Max Height	m	30
Connection Pipe Max Length	m	75
Pipe Sizes (Liquid/Gas)	mm	9.52 / 15.88
Indoor Unit Dimensions (HxWxD)		260 x 1340 x 655	360 x 1350 x 720
Outdoor Unit Dimensions (HxWxD)		820 x 940 x 370		1260 x 900 x 340
Indoor Net/Gross Weight	kg	43 / 49	57 / 67	60 / 70
Outdoor Net/Gross Weight	kg	67 / 79		90 / 99	97 / 106

SKU	TDS-TSO160HVSWDG
Brand	TECO
Shipping Weight	157.0000kg
Shipping Cubic	0.735480000m3
Unit Of Measure	ea

TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
