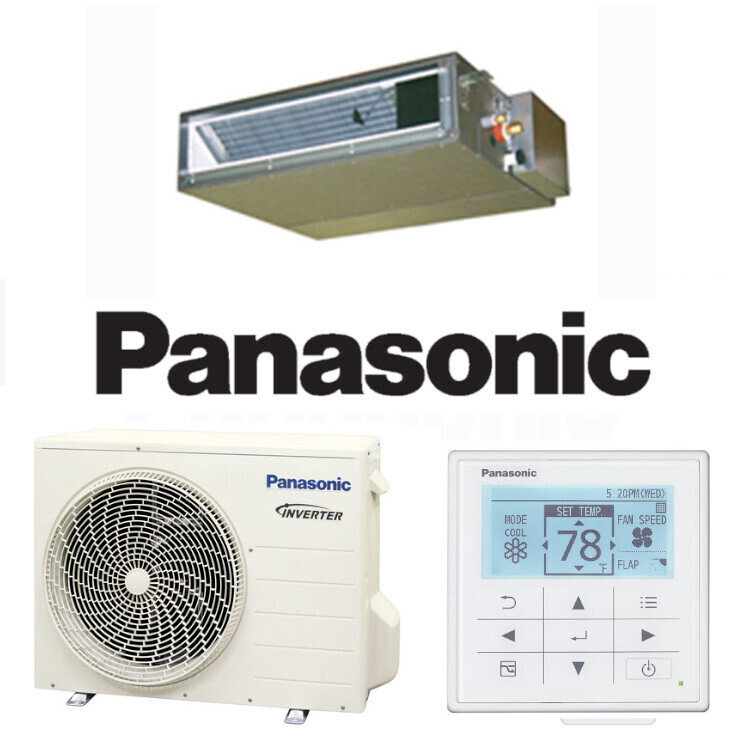

Panasonic CSCU-E12SD3RW 3.7 kW Slim Bulkhead System

Slim Bulkhead System (no longer available)

$1,544.00 Incl GST
$1,403.64 Excl GST
Sold Out


CSCU-E12SD3RW 3.7kW Inverter Slim Bulkhead Ducted Air Conditioner is no longer available.

Please see replacement part Panasonic CSCU-Z50UD3RAW 5.0 kW Slim Bulkhead System.

Many air conditioners operate at one constant speed and need to constantly turn on and off to maintain a set temperature. Panasonic Inverter air conditioners have the flexibility to vary the rotation speed of the compressor, allowing them to use less energy to maintain the set temperature while also being able to cool and heat the room quicker at start up.



Features:

  • Panasonic Inverter technology
  • Only 200mm high
  • Rear or bottom return air
  • Built-in drain pump

(CSCU-E12SD3RW)

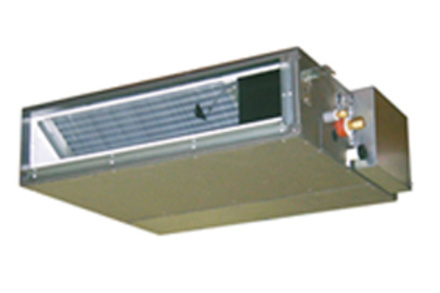

Indoor Unit CS-E12SD3RW

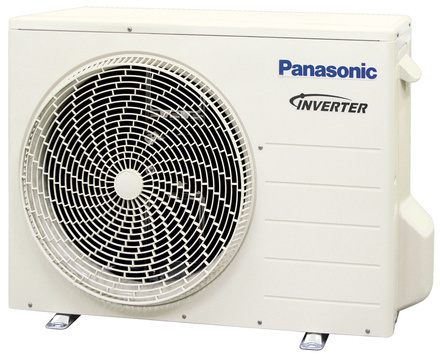

Outdoor Unit CU-E12SD3R
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 3.7
Cooling Capacity Range - Min ~ Max kW 0.85 ~ 4.00
EER w/w 3.59
Heating Capacity Rated Conditions kW 4.2
Heating Capacity Range - Min ~ Max kW 0.85 ~ 5.10
COP w/w 3.82
Sound Pressure Indoor - Cool - Hi / Med / Lo dB(A) 33 / 27 / 24
Sound Pressure Indoor - Heat - Hi / Med / Lo dB(A) 35 / 28 / 25
Sound Pressure Outdoor - Cool / Heat  dB(A) 49 / 50
Sound Power Outdoor - Cool / Heat  dB(A) 64 / 65
Air Flow - Cool / Heat L/s 241 / 241
Indoor Dimensions - H x W x D mm 750 x 200 x 640
Outdoor Dimensions - H x W x D mm 824 x 619 x 299
Weight - Indoor kg 19
Weight - Outdoor
SKU CSCU-E12SD3RW
Brand Panasonic
Shipping Weight 52.0000kg
Shipping Cubic 0.248507000m3
