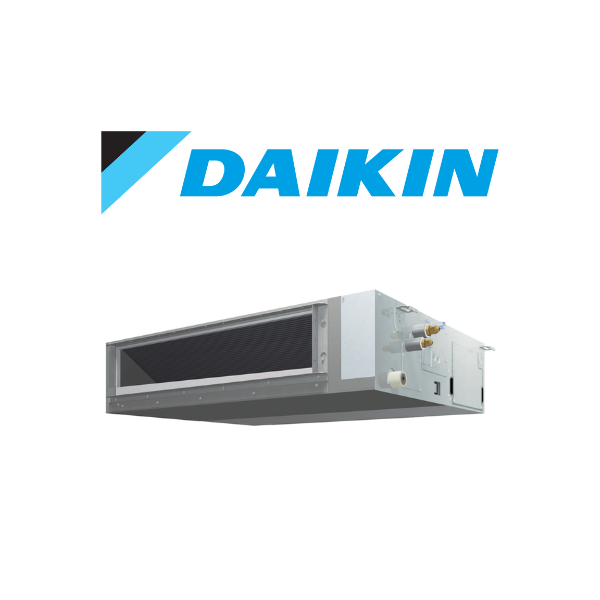

Daikin 11.2kW FXSQ100PAVE Multi Indoor Ceiling Mounted Built-in Air Conditioning Unit
Daikin Indoor Multi Ceiling Mounted Ducted Unit
$2,630.00 Excl GST
Daikin Ducted 11.2kW FXSQ100PAVE Ceiling Mounted Indoor Multi Unit - Includes BRC1E63 Wired Wall Controller
The FXSQ-PAVE series is designed to meet the construction challenges of modern commercial and medium density apartment development. Featuring industry leading low profile height of only 245mm for installation into tight ceiling space and Automatic Airflow Adjustment feature for simplifed on-site commissioning.
Key Features:
- Installation Flexibility - With a height of only 245mm, installation is possible even in buildings with narrow ceiling space.
- Design Flexibility - Using a DC Fan Motor, the external static pressure can be controlled within a rnage of 30 Pa to 150 Pa.
- Easy Installation
- Easy Maintenance
- Standard DC Drain Pump
- Comfort - Switchable airflow rate and auto airflow rate
- Low Operation Sound Level
(FXSQ100PAVE)
| Indoor Unit Name | FXSQ20PAVE | FXSQ25PAVE | FXSQ32PAVE | FXSQ40PAVE | FXSQ50PAVE | FXSQ63PAVE | FXSQ80PAVE | FXSQ100PAVE | FXSQ125PAVE | FXSQ140PAVE |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 2.2 | 2.8 | 3.6 | 4.5 | 5.6 | 7.1 | 9.0 | 11.2 | 14.0 | 16.0 |
| Rated Heating Capacity (kW) | 2.5 | 3.2 | 4.0 | 5.0 | 6.3 | 8.0 | 10.0 | 12.5 | 16.0 | 18.0 |
| Power Consumption (Cool/Heat) (W) | 58 / 53 | 66 / 61 | 101 / 96 | 75 / 70 | 106 / 101 | 126 / 121 | 151 / 146 | 206 / 201 | 222 / 217 | |
| Casing | Galvanised Steel Plate | |||||||||
| Air Flow Rate (H/M/L) (l/s) | 150 / 125 / 108 | 158 / 133 / 116 | 250 / 208 / 175 | 283 / 242 / 192 | 350 / 292 / 242 | 383 / 325 / 267 | 533 / 450 / 375 | 617 / 525 / 433 | 650 / 558 / 467 | |
| Sound Level (H/M/L) dB(A) | 33 / 30 / 28 | 34 / 32 / 30 | 36 / 33 / 30 | 34 / 32 / 29 | 36 / 32 / 29 | 37.5 / 34 / 30 | 39 / 35 / 32 | 42 / 38.5 / 35 | 43 / 40 / 36 | |
| Sound Power (H) dB(A) | 61 | 62 | 64 | 62 | 64 | 65.5 | 67 | 70 | 71 | |
| Unit Dimensions (H x W x D) (mm) | 245 x 550 x 800 | 245 x 700 x 800 | 245 x 1000 x 800 | 245 x 1400 x 800 | 245 x 1550 x 800 | |||||
| Unit Weight (kg) | 25 | 27 | 35 | 64 | 65.5 | 67 | 70 | 71 | ||
| Refrigerant | R410A | |||||||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.4 / 12.7 | 9.5 / 15.9 | ||||||||
| SKU | FXSQ100PAVE |
| Brand | Daikin |
| Shipping Weight | 67.0000kg |
| Shipping Width | 0.800m |
| Shipping Height | 0.245m |
| Shipping Length | 1.400m |
| Shipping Cubic | 0.274400000m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty on all of their Air Conditioners and Controllers.
