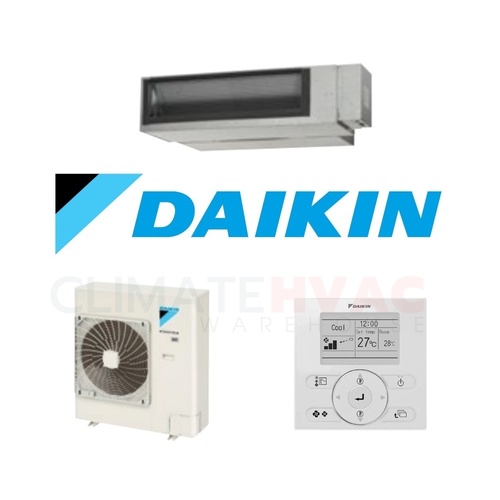

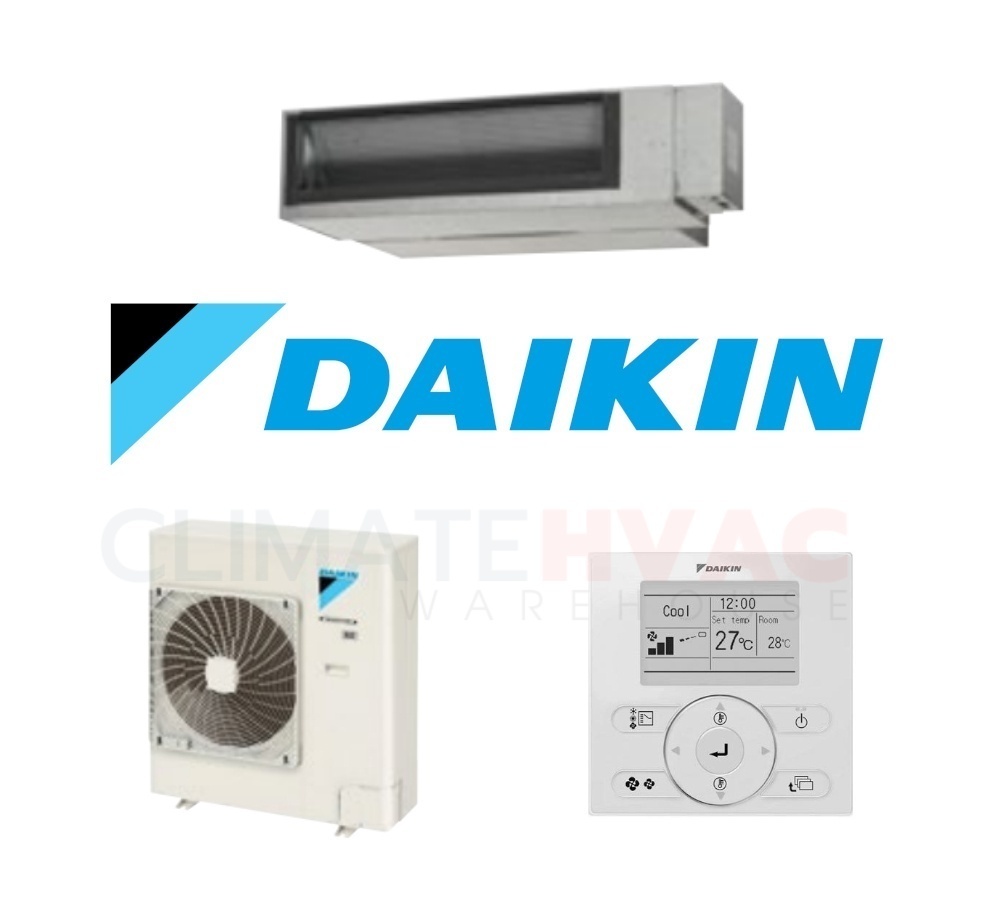

Daikin FDYAN71 7.1kW 3 Phase Ducted Unit

FDYAN71AV1/RZA71CY1 Standard Ducted Air Conditioner

$3,905.00 Incl GST
$3,550.00 Excl GST
Sold Out


This product has been superseded by Daikin FDYAN71A-C2Y

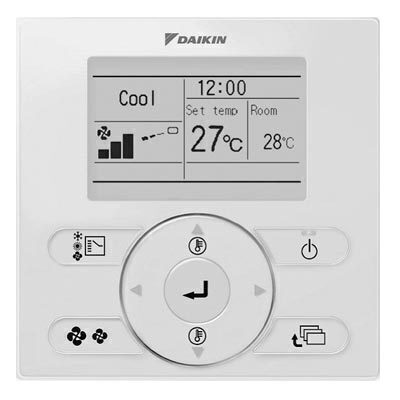

Daikin FDYAN71 7.1kW 3 Phase Ducted Unit - Includes BRC1E63 Wired Controller

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver a compact and efficient design, the new Standard Inverter series is ideal for installation into the tight roof space of any modern home.



Features:

  • Heating or cooling your entire home
  • Small to large houses
  • Houses with limited roof space and outdoor space


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FDYAN71A-CY)

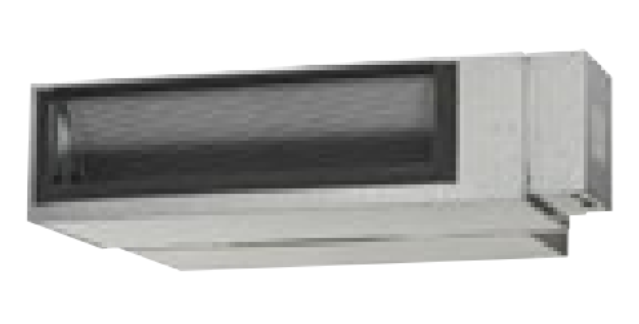

Indoor Unit FDYAN71AV1

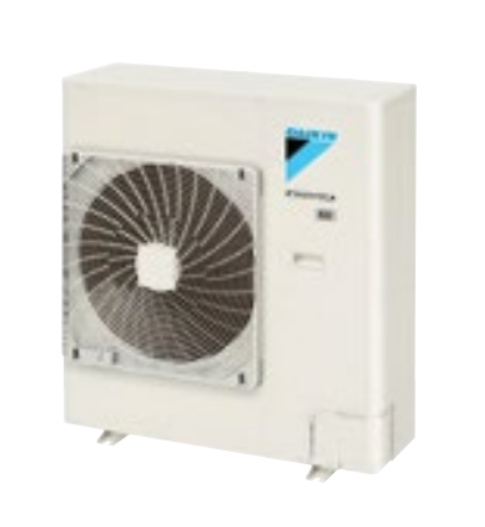

Outdoor Unit RZA71CY1
Power Supply 3 Phase, 380 ~ 415v, 50Hz
Rated Capacity
Cool (kW) 7.1
Heat (kW) 7.5
Capacity Range
Cool (kW) 3.2 ~ 8.0
Heat (kW) 3.5 ~ 9.0
Power Input (Rated)
Cool (kW) 2.20
Heat (kW) 1.93
EER/COP 3.23 / 3.89
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.44 / 3.92 / 4.00
HSPF (Hot/Average/Cold) 4.17 / 3.90 / 3.55
Drain Size (mm) ID 25 / OD 32
Duct Sizes
Supply (mm) 185 x 852 (Flange)
Return (mm) 1 x 400 (Oval)
Dimensions (HxWxD)
Indoor (mm) 300 x 1210 x 900
Outdoor (mm) 990 x 940 x 320
Weight
Indoor (kg) 40
Outdoor (kg) 69
Refrigerant Type R32
Max Pipe Length (m) 50
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Connection Type Flare
Ambient Temperature
Cool (°C) -5 ~ 46
Heat (°C) -15 ~ 16
Indoor Airflow Rate
(l/s) 425 / 566
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 37.3
Heat (dBA) 40.5
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 48
Heat (dBA) 50
Outdoor EPA Sound Power Level (H)
(dBA) 67
SKU FDYAN71A-CY
Brand Daikin
Shipping Weight 109.0000kg

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
