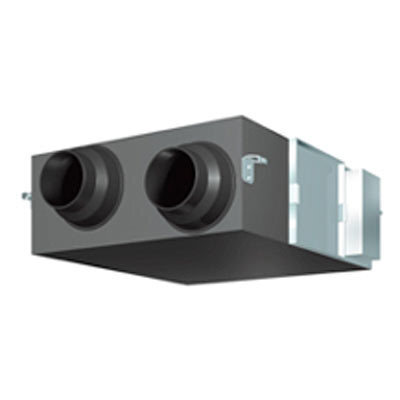

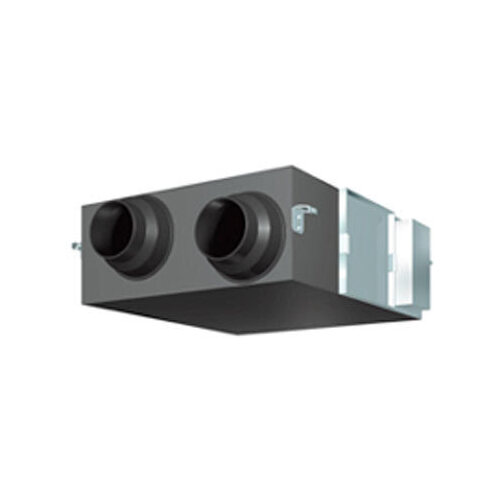

Daikin VAM650GJVE 180.6L/s ERV


Price On Application

Daikin's HRV (Heat Reclaim Ventilation) recovers thermal energy lost through ventilation and holds down room temperature changes caused by ventilation, thereby maintaining a comfortable and clean environment. This also curbs the load on the air conditioning system and conserves energy.


Efficient ventilation is a key element of building regulations. Daikin’s heat recovery ventilation modules can be applied as standalone units or incorporated within the air conditioning system. Temperature and humidity are exchanged between the supply and exhaust air, recovering potential energy losses and reducing the air conditioning loads. The HRV modules feature a high efficiency VAM heat exchanger which enables the exchange of both sensible and latent heat energy and substantially increasing the energy transfer capacity.


The Daikin VAM650GJVE has an airflow of 180.6 L/s (650m3/h) with a temperature exchange efficiency rating from 75% - 77.5%.



Power Supply Ø, V, Hz 1, 220 - 240 / 220, 50 / 60
Temp. Exchange Efficience (%) [50Hz/60Hz] Ultra-High 75
High 75
Low 77
Enthalpy Exchange Efficiency (%) [50Hz/60Hz] For Heating Ultra-High 67.5
High 67.5
Low 71.5
For Cooling Ultra-High 61
High 61
Low 64
Sound Level dB(A) [50Hz/60Hz] Heat Exchange Mode Ultra-High 34 - 36
High 33 - 34.5
Low 27.5 - 29.5
Bypass Mode Ultra-High 35 - 37.5
High 33 - 35.5
Low 27.5 - 30.5
Casing   Galvanized Steel Plate
Insulation Material   Self-extinguishable Polyurethane Foam
Dimensions (HxWxD) mm 338 x 973 x 832
Weight kg 45
Heat Exchange System   Air to air cross tow total heat exchange
Heat Exchange Element Material   Specially processed nonflammable paper
Air Filter   Multidirectional Fibrous Fleeces
Fan Type   Sirroco Fan
Air Flow Rate (L/h) [50 Hz/60 Hz] Ultra-High 650
High 650
Low 500
External Static Pressure (Pa) [50Hz/60Hz] Ultra-High 85
Brand Daikin
Shipping Weight 45.0000kg
Shipping Width 0.973m
Shipping Height 0.338m
Shipping Length 0.832m

Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
