Fujitsu SET-ARTC72LATU 20.3kW Three Phase High Static Ducted Air Conditioning System
ARTC72LATU / AOTA72LALT Fujitsu Ducted
$7,327.27 Excl GST

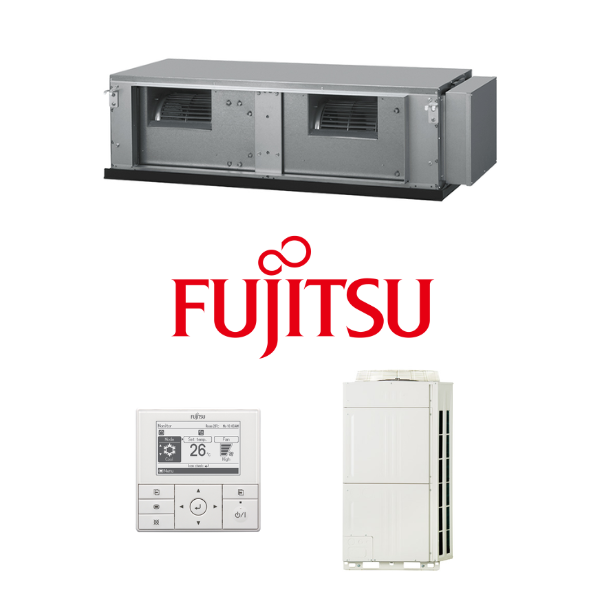

Fujitsu SET-ARTC72LATU 20.3kW Three Phase High Static Ducted System - Includes AOTA72LALT Outdoor Unit and Wall Controller
Ducted air conditioning with Zone Control capabilities allows for different zones (areas) to be set up in your home. The system adjusts airflow through dampers to control the air conditioning of the zones to reach the desired temperature. Works at an optimum setting to create a comfortable home environment.
Features:
- Optional zone control allowing for 8 zones to be connected, giving greater temperature control to meet individual needs.
- With built in features such as DC fan motors, DC rotary compressors, and built in programmable timers, these systems use less power than ever before.
- Fujitsu General offers a full five year parts and labour warranty on its entire range, so you can rest assured that your air conditioner will perform.
- Zone Control
- Auto Restart
- Auto Changeover
- Blue Fin Heat Exchanger
- Connectable Distributing Duct
- Connectable Fresh Air Duct
- Economy Mode
- Filter Sign
- On-Off Timer
- R410A Gas

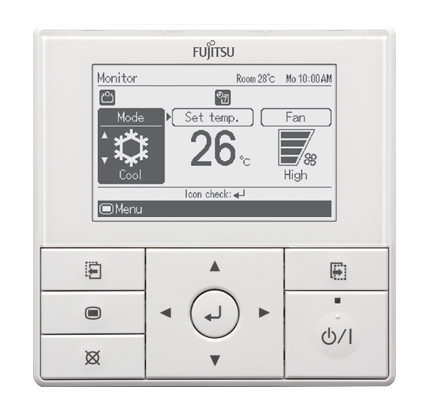

- Wired Remote Controller Included
(SET-ARTC72LATU)
| System Names | SET-ARTH36KHTA-3PH | SET-ARTH45KHTA-3PH | SET-ARTH54KHTA-3PH | SET-ARTH60KHTA-3PH | SET-ARTG65LHTA | SET-ARTC72LATU | SET-ARTC90LATU |
|---|---|---|---|---|---|---|---|
| Indoor Units | ARTH36KHTA | ARTH45KHTA | ARTH54KHTA | ARTH60KHTA | ARTG65LHTA | ARTC72LATU | ARTC90LATU |
| Outdoor Units | AOTH36KRTA | AOTH45KRTA | AOTH54KRTA | AOTH60KRTA | AOTG65LRLA | AOTA72LALT | AOTA90LALT |
| Power Source (V/Ph/Hz) | 400 / 3 / 50 | ||||||
| Rated Cooling Capacity (kW) | 10.0 | 12.5 | 14.0 | 15.5 | 18.0 | 20.3 | 25.0 |
| Rated Heating Capacity (kW) | 11.2 | 14.0 | 15.5 | 18.0 | 20.0 | 22.6 | 28.0 |
| EER / COP | 3.25 / 4.00 | 3.29 / 4.09 | 3.02 / 3.52 | 3.14 / 3.68 | 3.09 / 3.77 | 3.25 / 3.60 | 3.20 / 3.40 |
| Outdoor Sound Power (dBA) | 70 | 71 | 72 | 71 | 70 | 80 | 81 |
| Indoor dimensions (H x W x D) (mm) | 400 x 1050 x 500 | 425 x 1250 x 490 | 360 x 1400 x 850 | 450 x 1587 x 700 | 550 x 1587 x 700 | ||
| Outdoor dimension (H x W x D) (mm) | 788 x 940 x 320 | 998 x 940 x 320 | 1418 x 970 x 370 | 1428 x 1080 x 480 | 1690 x 930 x 765 | ||
| Indoor Weight (kg) | 39 | 53 | 69 | 100 | 110 | ||
| Outdoor Weight (kg) | 53 | 67 | 96 | 163 | 215 | ||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | 12.7 / 25.4 | |||||
| Pipe Length (m) (Max / Precharged) | 50 (30) | 75 (30) | 75 (20) | ||||
| Max Height Difference (m) | 30 | ||||||
| Operation Range Cooling (Min to Max CDB) | -10 to 50 | -10 to 46 | -5 to 46 | ||||
| Operation Range Heating (Min to Max CDB) | -15 to 24 | ||||||
| Refrigerant Type/Amount (g) | R32 / 1500 | R32 / 2180 | R32 / 3400 | R410A / 5600 | R410A / 11200 | ||
| SKU | SET-ARTC72LATU |
| Brand | Fujitsu |
| Shipping Weight | 315.0000kg |
| Shipping Cubic | 1.702256000m3 |
| Unit Of Measure | ea |
