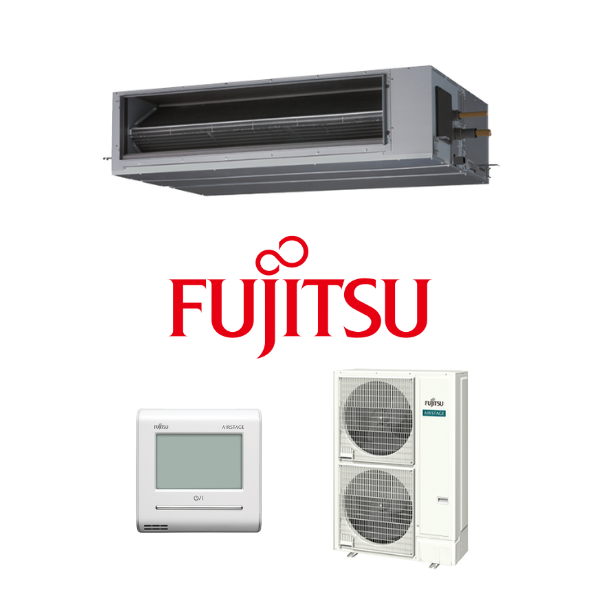

Fujitsu SET-ARTH60KHTB 16.0kW Single Phase High Static Ducted High Performance Air Conditioning System

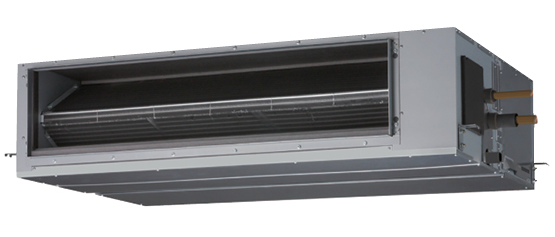

ARTH60KHTB / AOTH60KCTA Fujitsu Ducted
$5,686.36 Excl GST

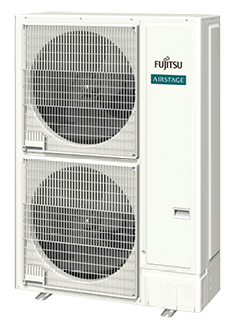

Fujitsu SET-ARTH60KHTB 16.0kW Single Phase High Static Ducted System (High Performance) - Includes AOTH60KCTA Outdoor Unit and Wall Controller
The High Static Single Phase R32 (High Performance) range is available in five models, ranging in capacity from 8.5kW to 16kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.
Key Features:
- Zone Control
- Auto Restart
- Auto Changeover
- Blue Fin Heat Exchanger
- Connectable Distributing Duct
- Connectable Fresh Air Duct
- Demand Response
- Economy Mode
- Filter Sign
- On-Off Timer
- Automatic Fan Speed Adjustment
- Automatic Static Pressure Setting Adjustment
- R32 Gas
- Wired Remote Controller Included
(SET-ARTH60KHTB)
| System Names | SET-ARTH30KHTA-HP | SET-ARTH36KHTA-HP | SET-ARTH45KHTA-HP | SET-ARTH54KHTA-HP | SET-ARTH60KHTB |
|---|---|---|---|---|---|
| Indoor Units | ARTH30KHTA | ARTH36KHTA | ARTH45KHTA | ARTH54KHTA | ARTH60KHTB |
| Outdoor Units | AOTH30KCTA | AOTH36KCTA | AOTH45KCTA | AOTH54KCTA | AOTH60KCTA |
| Power Source (V/Ph/Hz) | 230 / 1 / 50 | ||||
| Rated Cooling Capacity (kW) | 8.5 | 10.0 | 12.5 | 14.0 | 16.0 |
| Rated Heating Capacity (kW) | 10.0 | 12.5 | 15.0 | 16.5 | 18.0 |
| EER / COP | 3.90 / 4.55 | 3.85 / 4.25 | 3.61 / 4.30 | 3.58 / 4.13 | 3.32 / 3.89 |
| Outdoor Sound Power (dBA) | 69 | 70 | 71 | ||
| Indoor dimensions (H x W x D) (mm) | 400 x 1050 x 500 | 425 x 1250 x 490 | 360 x 1400 x 850 | ||
| Outdoor dimension (H x W x D) (mm) | 998 x 940 x 320 | 1418 x 970 x 370 | |||
| Indoor Weight (kg) | 39 | 53 | 69 | ||
| Outdoor Weight (kg) | 64 | 67 | 95 | 101 | |
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | ||||
| Pipe Length (m) (Max / Precharged) | 75 (30) | ||||
| Max Height Difference (m) | 30 | ||||
| Operation Range Cooling (Min to Max CDB) | -10 to 50 | ||||
| Operation Range Heating (Min to Max CDB) | -15 to 24 | ||||
| Refrigerant Type/Amount (g) | R32 / 2100 | R32 / 2500 | R32 / 3400 | R32 / 3800 | |
| SKU | SET-ARTH60KHTB |
| Brand | Fujitsu |
| Shipping Weight | 170.0000kg |
| Shipping Width | 0.472m |
| Shipping Height | 1.418m |
| Shipping Length | 1.400m |
| Shipping Cubic | 0.937320000m3 |
| Unit Of Measure | ea |
