Mitsubishi Heavy (MHI) FDU125AVNPWVH-RC-EXZ3A 12.1kW Ducted 1 Phase Air Conditioning System
FDU125VH / FDCA125VNP-W Mitsubishi Heavy Ducted
$3,127.27 Excl GST

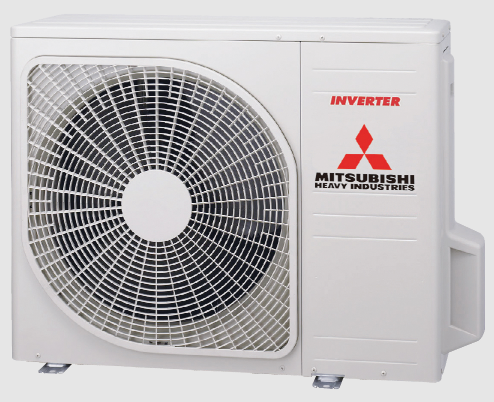

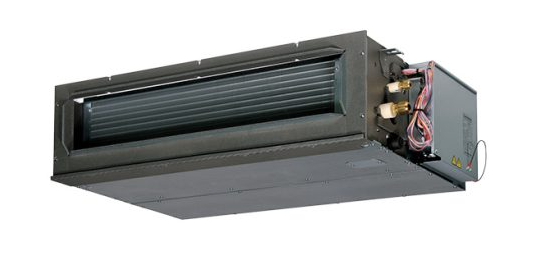

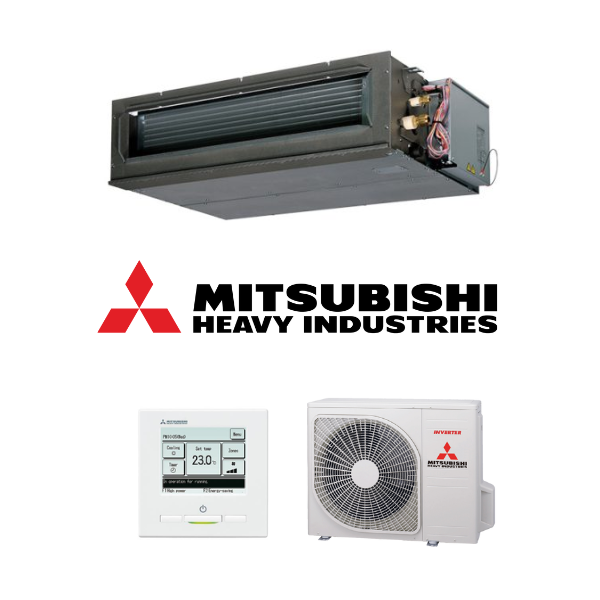

Mitsubishi Heavy Industries FDU125AVNPWVH 12.1kW Single Phase Ducted System - Inlcudes Outdoor Unit FDCA125VNP-W and Wall Controller
The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.
Key Features:
- Slimline design
- High Power Mode for rapid cooling and heating
- Weekly & Sleep timers
- Silent operation
- Dry operation to reduce humidity
(FDU125AVNPWVH-RC-EXZ3A)
| System Name | FDU71AVNXWVH | FDU100AVNPWVH | FDU100AVNAWVH | FDU125AVNPWVH | FDU125AVNXWVH | FDU140AVNXWVH |
|---|---|---|---|---|---|---|
| Indoor Unit | FDU71VH | FDU100VH | FDU100VH | FDU125VH | FDU125VH | FDU140VH |
| Outdoor Unit | FDCA71VNX-W | FDCA100VNP-W | FDCA100VNA-W | FDCA125VNP-W | FDCA125VNX-W | FDCA140VNX-W |
| Power Supply | 1 Phase, 240V, 50Hz | |||||
| Cooling Capacity (kW) | 7.1 | 10.0 | 10.0 | 12.1 | 12.5 | 14.0 |
| Heating Capacity (kW) | 8.0 | 10.0 | 11.2 | 12.1 | 14.0 | 16.0 |
| Rated Power Input (Cool/Heat) (kW) | 1.77 / 1.78 | 3.08 / 2.45 | 2.99 / 2.66 | 3.85 / 3.28 | 3.49 / 3.61 | 4.22 / 4.22 |
| EER/COP | 4.01 / 4.49 | 3.25 / 4.08 | 3.35 / 4.21 | 3.14 / 3.69 | 3.58 / 3.88 | 3.32 / 3.79 |
| Duct Sizes (Supply/Return) (mm) | 170 x 880 / 200 x 740 | 170 x 1200 / 235 x 1280 | ||||
| Max External Static Pressure (Pa) | 200 | |||||
| Refrigerant Type/Amount (kg) | R32 / 2.75 | R32 / 1.7 | R32 / 3.3 | R32 / 2.25 | R32 / 4.0 | |
| Max Pipe Length (m) | 50 | 30 | 50 | 30 | 100 | |
| Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 30 | I.D.U Higher 20 / O.D.U Higher 20 | I.D.U Higher 15 / O.D.U Higher 50 | I.D.U Higher 20 / O.D.U Higher 20 | I.D.U Higher 15 / O.D.U Higher 50 | |
| Indoor Dimensions (HxWxD) (mm) | 280 x 950 x 635 | 280 x 1370 x 740 | ||||
| Outdoor Dimensions (HxWxD) (mm) | 750 x 880 x 340 | 845 x 970 x 370 | 1300 x 970 x 370 | |||
| Indoor Weight (kg) | 34 | 54 | ||||
| Outdoor Weight (kg) | 60 | 57 | 77 | 73 | 97 | |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | 6.4 / 15.88 | 9.52 / 15.88 | |||
| SKU | FDU125AVNPWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 127.0000kg |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
