LG Smart Series WS09TWS 2.6kW Wall Split WiFi Air Conditioning System

LG Smart Series WS09TWS 2.6kW Wall Split WiFi Air Conditioning System

WS09TWN / WS09TWU LG Wall Split

WAS $757.99

RRP $757.99

$682.19 Incl GST
$620.17 Excl GST

SAVE 10%!

Sale Ends in

In Stock

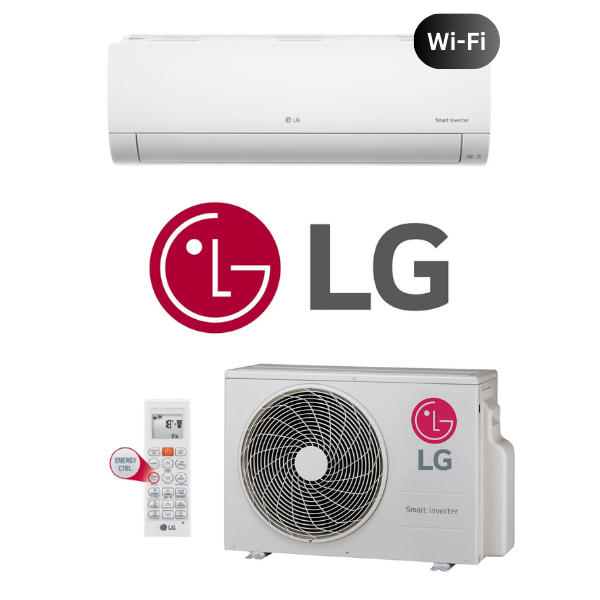

LG WS09TWS 2.6kW Smart Series Wall Mounted Split System (Built-In Wi-Fi) - Includes Outdoor Unit WS09TWU and Wireless Controller

Designed for the way you live, LG Air Conditioners are available in a wide range of styles - so you can create a space that’s cool, comfortable and stylish.

With LG Split System air conditioning products, you’ll also enjoy benefits such as:

Embedded Wi-Fi - so that you can control your unit with your Smartphone, even when you’re not at home*.

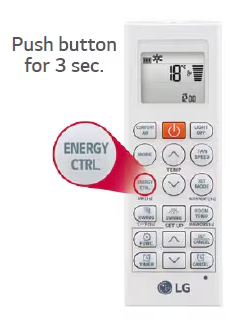

Active Energy Control - to help track your energy consumption.
Low Noise - LG Air Conditioners operate at low sound levels.

For ease of installation, energy efficiency and quiet performance, LG air conditioning systems are the smart choice.

(WS09TWS)

System	WS09TWS	WS12TWS	WS18TWS	WS24SL

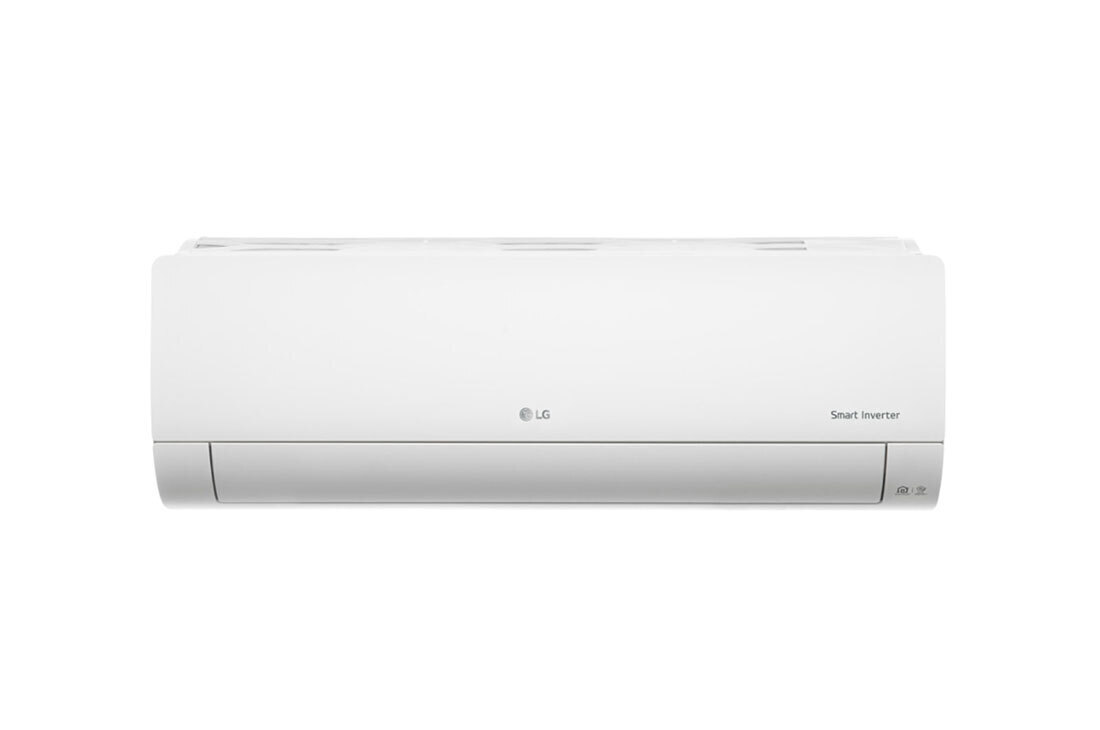

Indoor Unit	WS09TWN	WS12TWN	WS18TWN	WS24SLN

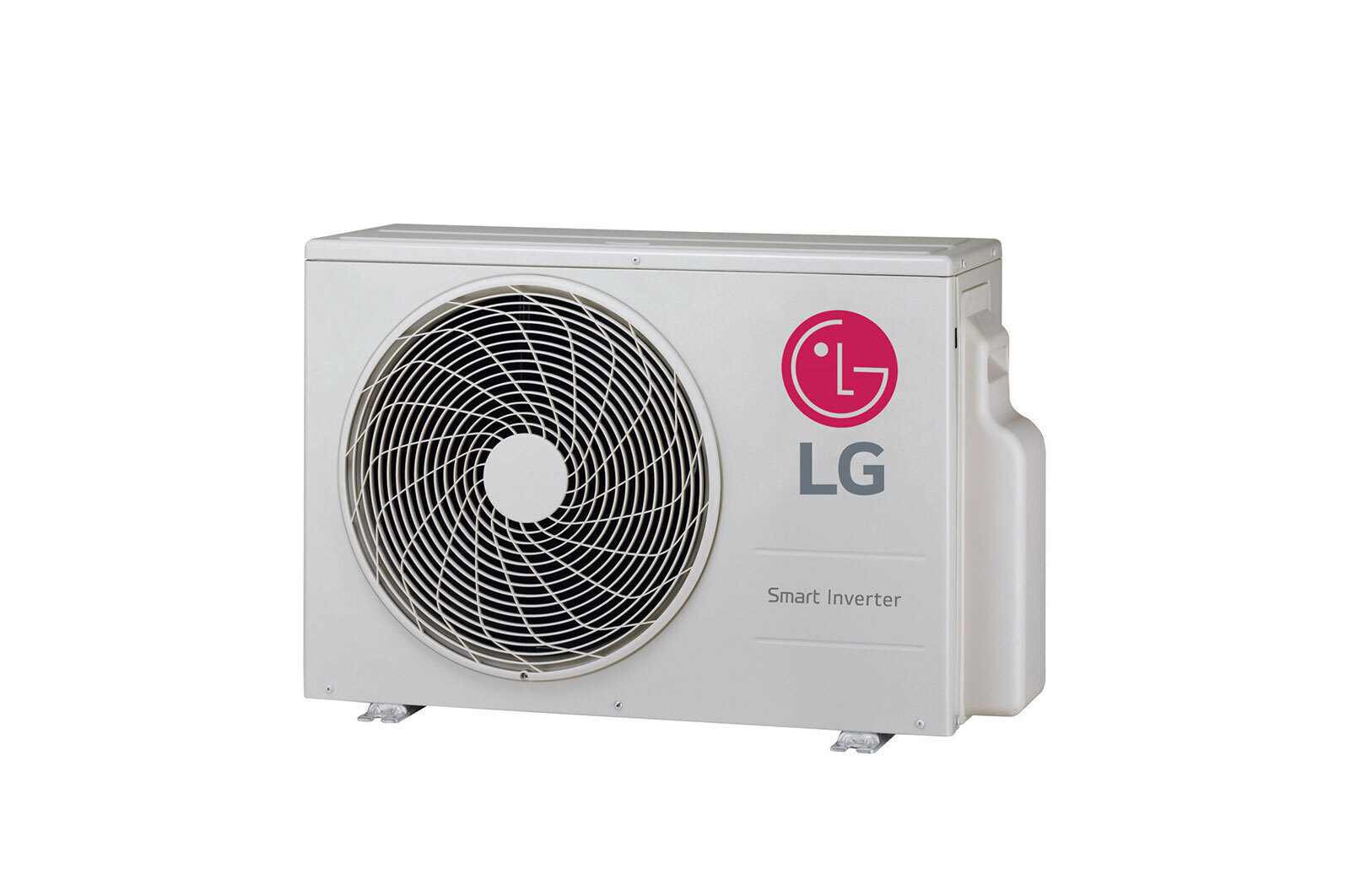

Outdoor Unit	WS09TWU	WS12TWU	WS18TWU	WS24SLU
Rated Cooling Capacity (kW)	2.6	3.4	4.8	7.1
Rated Heating Capacity (kW)	3.2	4.0	5.9	7.7
Power Supply (V/Ph/Hz)	220-240 / 1 / 50
Capacity Range Cool/Heat (kW)	0.89-3.70 / 0.89-5.00	0.89-4.04 / 0.89-6.00	0.90-5.50 / 0.90-6.40	1.00-8.00 / 1.00-8.50
Rated Power Input Cool/Heat (kW)	0.600 / 0.743	0.895 / 0.990	1.460 / 1.675	2.150 / 2.100
Running Current (A)	3.0 / 3.3	4.4 / 4.7	6.5 / 7.4	9.4 / 9.2
EER/COP (W/W)	4.33 / 4.31	3.80 / 4.04	3.29 / 3.52	3.30 / 3.67
AEER/ACOP	4.26 / 4.25	3.76 / 4.00	3.27 / 3.50	3.30 / 3.66
Energy Label Grade (Cool)	4.5 / 4.0 / 4.0	4.0 / 3.5 / 4.0	3.5 / 3.5 / 3.5	4.0 / 4.0 / 4.0
Energy Label Grade (Heat)	3.0 / 3.0 / 2.5	3.0 / 2.5 / 2.0	3.0 / 2.0 / 1.5	3.0 / 2.5 / 1.5
Indoor Air Flow (Cool) (Max/H/M/L) (L/s)	200 / 183 / 150 / 92		258 / 242 / 217 / 175	383 / 283 / 233 / 183
Indoor Air Flow (Heat) (Max/H/M/L) (L/s)	208 / 183 / 150 / 108		308 / 267 / 225 / 183	433 / 333 / 283 / 233
Indoor Sound Pressure Level Cool (Max/H/M/L/SL) dB(A)	48 / 42 / 37 / 27 / 19		49 / 44 / 39 / 34 / 31	- / 46 / 41 / 36 / 27
Indoor Unit Dimensions (HxWxD) (mm)	308 x 837 x 189		345 x 998 x 210	360 x 1060 x 265
Indoor Unit Net Weight (kg)	9.1		11.7	16.6
Compressor	Twin Rotary
Condenser (Corrosion Protection)	Gold
Outdoor Sound Pressure Level Cool/Heat dB(A)	49 / 51		53 / 55	49 / 52
Outdoor Sound Power Level dB(A)	56	58	61	63
Outdoor Unit Dimensions (HxWxD) (mm)	545 x 770 x 288			650 x 870 x 330
Outdoor Unit Net Weight (kg)	35			45.7
Outdoor Operating Range Cool/Heat (C)	-15 to 48 / -15 to 24		-15 to 48 / -10 to 24	-10 to 48 / -10 to 24
Field Connections
Circuit Breaker (A)	15		20
Power Supply Cable (No. x mm2)	3 x 1.0		3 x 1.5	3 x 2.5
Power and Communication Cable (No. x mm2)	4 x 1.0
Field Piping
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7
Connection Method IDU/ODU	Flared / Flared
Drain Hose Size IDU/ODU	20 / 15
Min-Max Piping Length (m)	3 - 20			3 - 30
Pre-Charge Length (m)	7.5
Max Elevation Difference (m)	10			20
Piping Connection Heat Insulation	Both Liquid and Gas Pipes
Refrigerant Type/Pre-Charge (g)	R32 / 800		R32 / 1000	R32 / 1300
Additional Charge (g/m)	20
Refrigerant Charge Control	Electronic Expansion Valve
