Best Prices Mitsubishi Electric PEADM140V2MAKIT 14.0kW Air Con Low Cost Installation

Mitsubishi Electric-PEADM140V2MAKIT

Mitsubishi Electric-PEADM140V2MAKIT

Mitsubishi Electric-PEADM140V2MAKIT

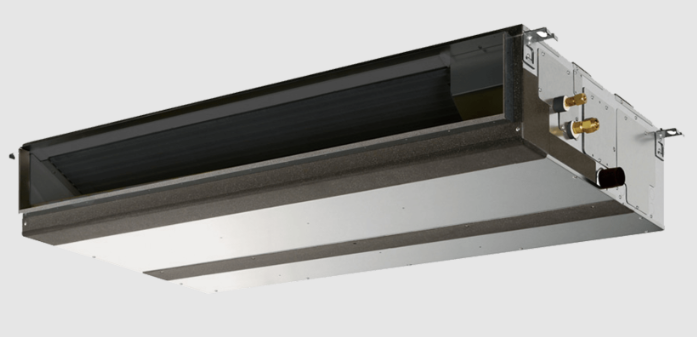

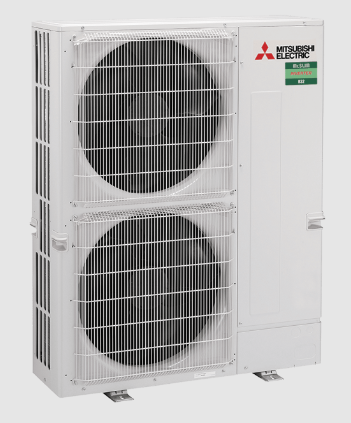

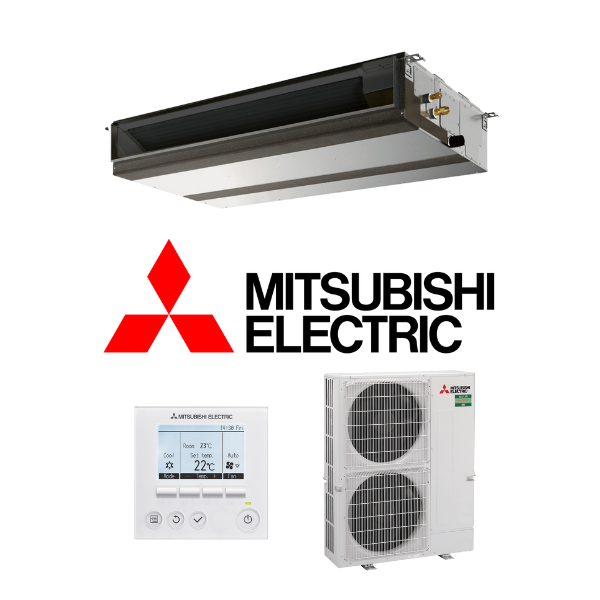

Mitsubishi Electric PEADM140V2MAKIT 14.0kW Single Phase Low Profile Ducted System - Includes Outdoor Unit PUZ-M140VKA2-A.TH and Wall Controller

Experience the versatility and precision of the low-profile ducted Mitsubishi Electric PEAD series air conditioners, designed to meet your heating and cooling needs with exceptional efficiency.

Key Features:

Capacity Range: 5.0 kW - 14.0 kW
External static pressure range 35-125 Pa
Low profile design
Built-in condensate pump
Wide selection of fan speeds
Wi-Fi Control* Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
PAR-41MAAM Deluxe Controller

(PEADM140V2MAKIT)

System Name	PEADS50V2MAKIT	PEADS60V2MAKIT	PEADS71V2MAKIT	PEADM100V2MAKIT	PEADM125V2MAKIT	PEADM140V2MAKIT
Indoor Unit	PEAD-M50JAAD.TH	PEAD-M60JAAD.TH	PEAD-M71JAADR1.TH	PEAD-M100JAADR1.TH	PEAD-M125JAADR1.TH	PEAD-M140JAADR1.TH
Outdoor Unit	SUZ-M50VAD2-A.TH	SUZ-M60VAD2-A.TH	SUZ-M71VAD2-A.TH	PUZ-M100VKA2-A.TH	PUZ-M125VKA2-A.TH	PUZ-M140VKA2-A.TH
Cooling Capacity (kW)	5.0	6.0	7.1	10.0	12.0	14.0
Heating Capacity (kW)	6.0	7.0	8.0	12.5	14.0	16.0
Indoor Dimensions HxWxD (mm)	250 x 900 x 732	250 x 1100 x 732		250 x 1400 x 732		250 x 1600 x 732
Outdoor Dimensions HxWxD (mm)	714 x 800 x 285	880 x 840 x 330		981 x 1050 x 330(+40)		1338 x 1050 x 330(+40)
Indoor Weight (kg)	26	29		39	40	44
Outdoor Weight (kg)	41	54	55	76	84	99
Pipe Sizes (mm) (Liquid/Gas)	6.4 / 12.7	6.4 / 15.88	9.52 / 15.88

SKU	PEADM140V2MAKIT
Brand	Mitsubishi Electric
Shipping Weight	143.0000kg
Shipping Cubic	0.812613000m3
Unit Of Measure	ea
