Mitsubishi Electric PEAZM100VHAA2MAKIT 10.0kW 1 Phase Ducted Power Inverter Air Conditioning System
PEA-M100HAA / PUZ-ZM100VKA2-A.TH Mitsubishi Ducted
$4,134.54 Excl GST

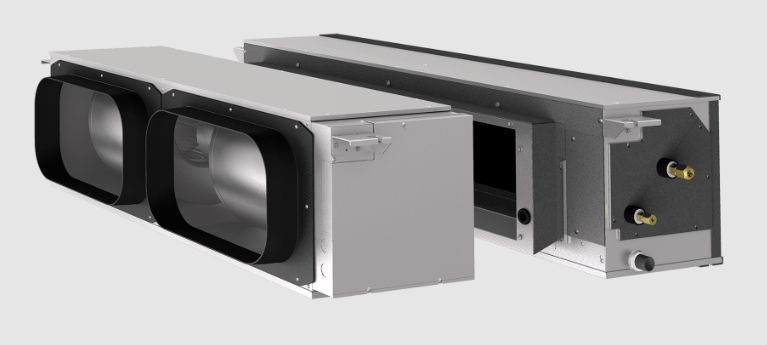

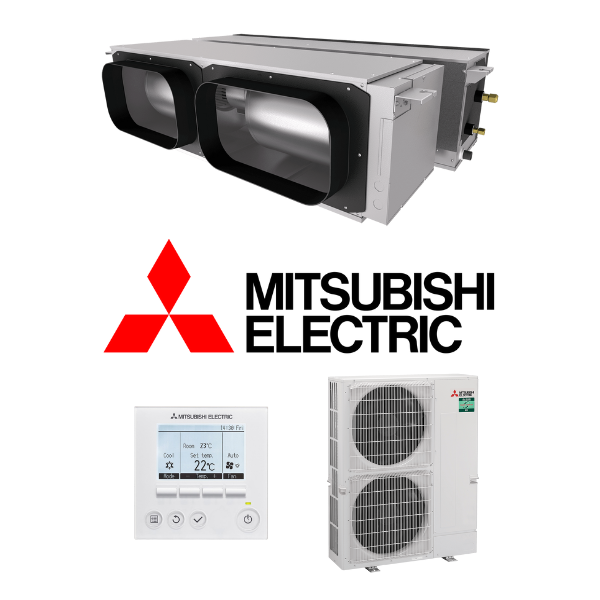

Mitsubishi Electric PEA-M100HAA.TH 10.0kW Single Phase Power Inverter Ducted Unit (2-Piece Construction) - Includes Outdoor Unit PUZ-ZM100VKA2-A and Wall Controller
Keep your home at the ideal temperature all year long with the PEA-M100-140HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.
Key Features:
- High External Static Pressure
- 2 Piece Contruction: This ducted fan coil has a two-piece construction, which allows for the separation of the indoor unit heat exchanger and the fan deck assembly. This is beneficial for installation into the roof space, for greater room capacities and increased variation in airflow; ensuring operation that suits most room layouts.
- 4 Fan Speed Settings
- Optional Zone Conroller: Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
- Easy Maintenance
- Flexible Ducting Design
- R32 Regrigerant
- PAR-41MAAM Wall Mounted Controller
- Optional Wi-Fi Control - 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
- Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation
(PEAZM100VHAA2MAKIT)
| System Name | PEAZM100VHAA2MAKIT | PEAZM125VHAA2MAKIT | PEAZM140VHAA2MAKIT | PEAZM100YHAA2MAKIT | PEAZM125YHAA2MAKIT | PEAZM140YHAA2MAKIT |
|---|---|---|---|---|---|---|
| Indoor Unit | PEA-M100HAA.TH | PEA-M125HAA.TH | PEA-M140HAA.TH | PEA-M100HAA.TH | PEA-M125HAA.TH | PEA-M140HAA.TH |
| Outdoor Unit | PUZ-ZM100VKA2-A.TH | PUZ-ZM125VKA2-A.TH | PUZ-ZM140VKA2-A.TH | PUZ-ZM100YKA3-A.TH | PUZ-ZM125YKA2-A.TH | PUZ-ZM140YKA2-A.TH |
| Cooling Capacity (kW) | 10.0 | 12.5 | 14.0 | 10.0 | 12.5 | 14.0 |
| Heating Capacity (kW) | 11.2 | 14.0 | 16.0 | 11.2 | 14.0 | 16.0 |
| Indoor Dimensions (HxWxD) (mm) | 380 x 1405 x 900 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 1338 x 1050 x 330(+40) | |||||
| Indoor Weight (kg) | 63 | |||||
| Outdoor Weight (kg) | 113 | 114 | ||||
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | |||||
| SKU | PEAZM100VHAA2MAKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 176.0000kg |
| Shipping Width | 0.256m |
| Shipping Height | 1.338m |
| Shipping Length | 1.405m |
| Shipping Cubic | 0.481251840m3 |
| Unit Of Measure | ea |
