Mitsubishi Electric PEAZM100YHAA2MAKIT 10.0kW 3 Phase Ducted Power Inverter Air Conditioning System

PEA-M100HAA / PUZ-ZM100YKA3-A.TH Mitsubishi Ducted

$5,042.99 Incl GST
$4,584.54 Excl GST
In Stock

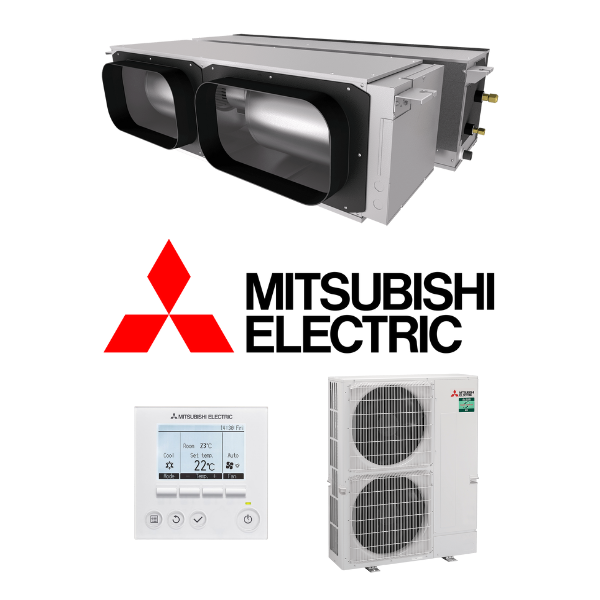

Mitsubishi Electric PEA-M100HAA.TH 10.0kW Three Phase Power Inverter Ducted Unit (2-Piece Construction) - Includes Outdoor Unit PUZ-ZM100YKA3-A and Wall Controller

Keep your home at the ideal temperature all year long with the PEA-M100-140HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.

Key Features:

  • High External Static Pressure

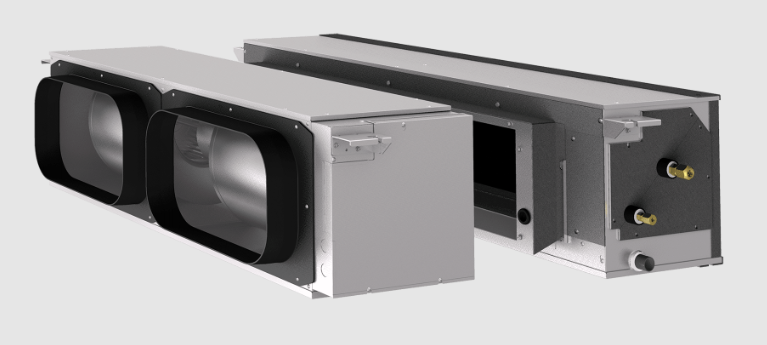

  • 2 Piece Contruction: This ducted fan coil has a two-piece construction, which allows for the separation of the indoor unit heat exchanger and the fan deck assembly. This is beneficial for installation into the roof space, for greater room capacities and increased variation in airflow; ensuring operation that suits most room layouts.
  • 4 Fan Speed Settings
  • Optional Zone Conroller: Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
  • Easy Maintenance
  • Flexible Ducting Design
  • R32 Regrigerant

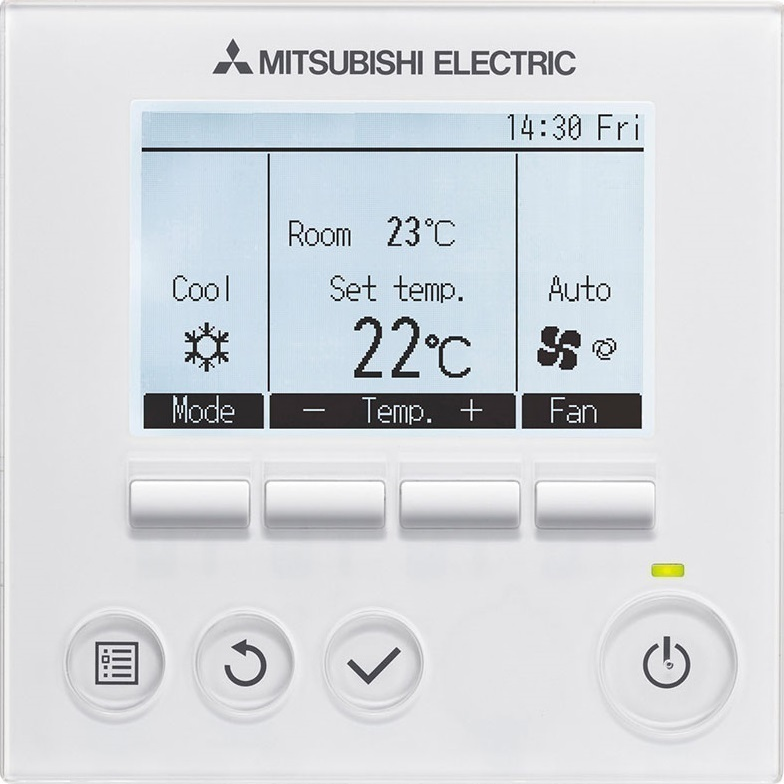

  • PAR-41MAAM Wall Mounted Controller
  • Optional Wi-Fi Control - 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
  • Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation

(PEAZM100YHAA2MAKIT)

System Name  PEAZM100VHAA2MAKIT  PEAZM125VHAA2MAKIT  PEAZM140VHAA2MAKIT  PEAZM100YHAA2MAKIT  PEAZM125YHAA2MAKIT  PEAZM140YHAA2MAKIT
Indoor Unit  PEA-M100HAA.TH  PEA-M125HAA.TH  PEA-M140HAA.TH  PEA-M100HAA.TH  PEA-M125HAA.TH  PEA-M140HAA.TH

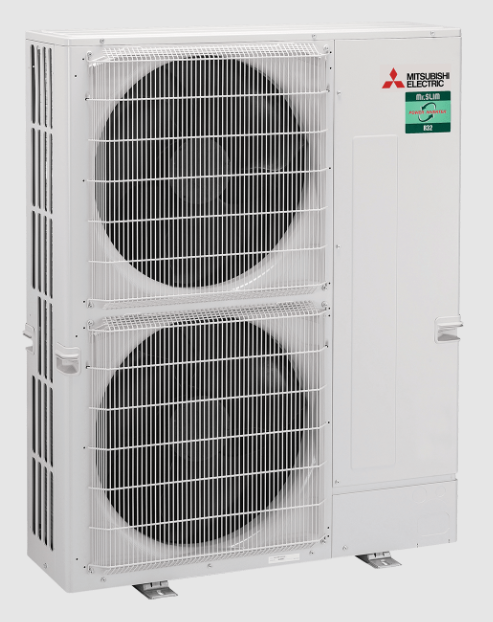

Outdoor Unit  PUZ-ZM100VKA2-A.TH  PUZ-ZM125VKA2-A.TH  PUZ-ZM140VKA2-A.TH  PUZ-ZM100YKA3-A.TH  PUZ-ZM125YKA2-A.TH  PUZ-ZM140YKA2-A.TH
Cooling Capacity (kW)  10.0  12.5  14.0  10.0  12.5  14.0
Heating Capacity (kW)  11.2  14.0  16.0  11.2  14.0  16.0
Indoor Dimensions (HxWxD) (mm)  380 x 1405 x 900
Outdoor Dimensions (HxWxD) (mm)  1338 x 1050 x 330(+40)
Indoor Weight (kg)  63
Outdoor Weight (kg)  113  114
Pipe Sizes (mm) (Liquid/Gas)  9.52 / 15.88
SKU PEAZM100YHAA2MAKIT
Brand Mitsubishi Electric
Shipping Weight 177.0000kg
Shipping Width 0.256m
Shipping Height 1.338m
Shipping Length 1.405m
Shipping Cubic 0.481251840m3
Unit Of Measure ea
