Mitsubishi Heavy (MHI) FDUA125VNPWVH-RC-EXZ3A 12.1kW Ducted 1 Phase Air Conditioning System
FDUA125VH / FDC125VNP-W Mitsubishi Heavy (MHI) Ducted
$2,999.99 Excl GST

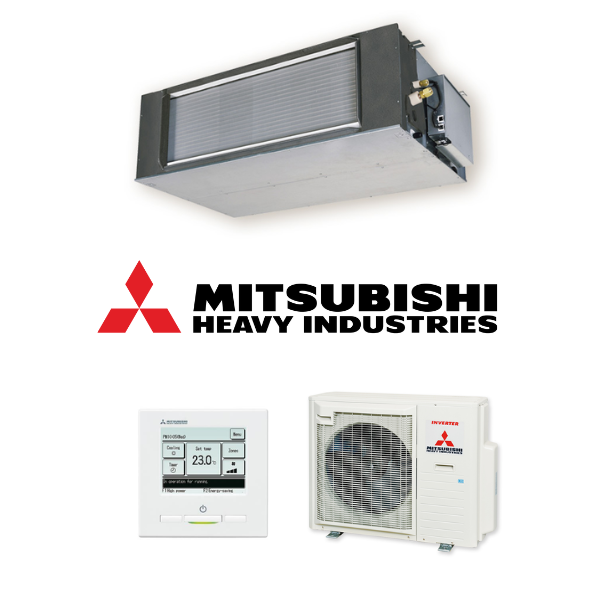

Mitsubishi Heavy Industries FDUA125VNPWVH-RC-EXZ3A 12.5kW Single Phase Ducted System - Includes Outdoor Unit FDC125VNP-W and Wall Controller
Features:
-
Single phase model
-
Automatic operation Mode
-
Weekly / Sleep Timer
-
Silent operation
-
Wired and wireless control options
Condenser
-
R32 Refrigerant
-
Line-Up Expanded
-
Lighter, more compact outdoor unit
-
Quiter Operation
-
Ducted units compatible with Flexizone
-
Increased energy efficiency
-
Balanced airflow
-
Quiet operation
-
Built-in drain pump
(FDUA125VNPWVH-RC-EXZ3A)
| Set | FDUA125VNPWVH-RC-EXZ3A | ||

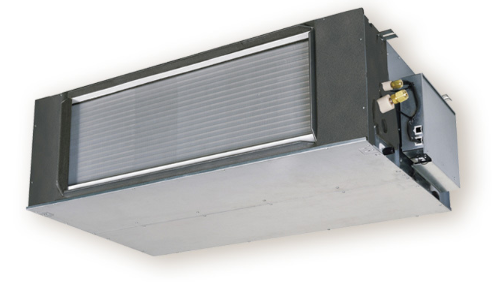

| Indoor | FDUA125VH | ||

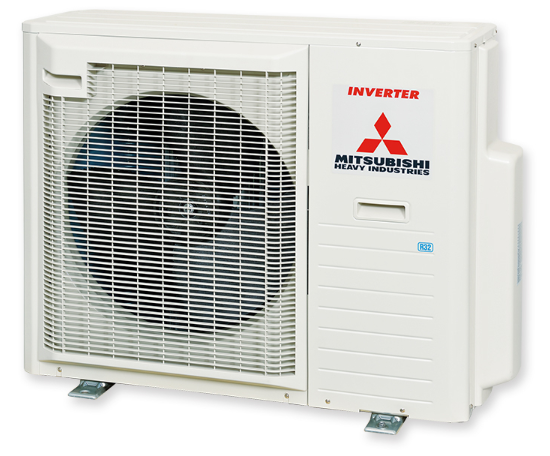

| Outdoor | FDC125VNP-W | ||
| Power Suppply | 1 Phase 240V 50Hz | ||
| Capacity | Cooling T1 | kW | 12.1 (TBA) |
| Heating H1 | 12.1 (TBA) | ||
| Input | Cooling T1 | kW | 3.83 |
| Heating H1 | 3.68 | ||
| Max running current | A | 29 | |
| EER | Cooling T1 | 3.26 | |
| COP | Heating H1 | 3.8 | |
| Sound Power Level (JIS C9612) | Outdoor | dB(A) | 70 |
| Sound Pressure Level (JIS C9612) | Indoor (P-Hi/Hi/Me/Lo) | dB(A) | 46 / 44 / 42 / 38 |
| Outdoor | 54 | ||
| Airflow | Indoor (P-Hi/Hi/Me/Lo) | l/s | 717 /650 / 600 / 500 |
| External dimensions (HxWxD) | Indoor | mm | 398 x 1150 x 650 |
| Outdoor | 845 x 970 x 370 | ||
| Net weight | Indoor | kg | 52 |
| Outdoor | 70 | ||
| Air Connection | Supply | mm | 348 x 898 |
| Return | 348 x 898 | ||
| Refrigerant Piping | Liquid Line | mm | Ø9.52 |
| Gas Line | Ø15.88 | ||
| Connection Method | Flare Connection | ||
| Refrigerant | Type | R32 | |
| Quantity | kg | 2.25 | |
| Pre charged to pipe length | m | 15 | |
| Maximum pipe length | m | 30 | |
| Max Vertical Height Difference | O.U. above I.U. | m | TBA |
| O.U. below I.U. | TBA | ||
| SKU | FDUA125VNPWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 125.0000kg |
| Shipping Width | 2.120m |
| Shipping Height | 1.243m |
| Shipping Length | 1.020m |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
