Best Prices Mitsubishi Heavy (MHI) SRF50ZMXA-S-Multi 5.0kW AC Low Cost Installation

Mitsubishi Heavy (MHI) SRF50ZMXA-S-Multi 5.0kW Multi Air Conditioning System

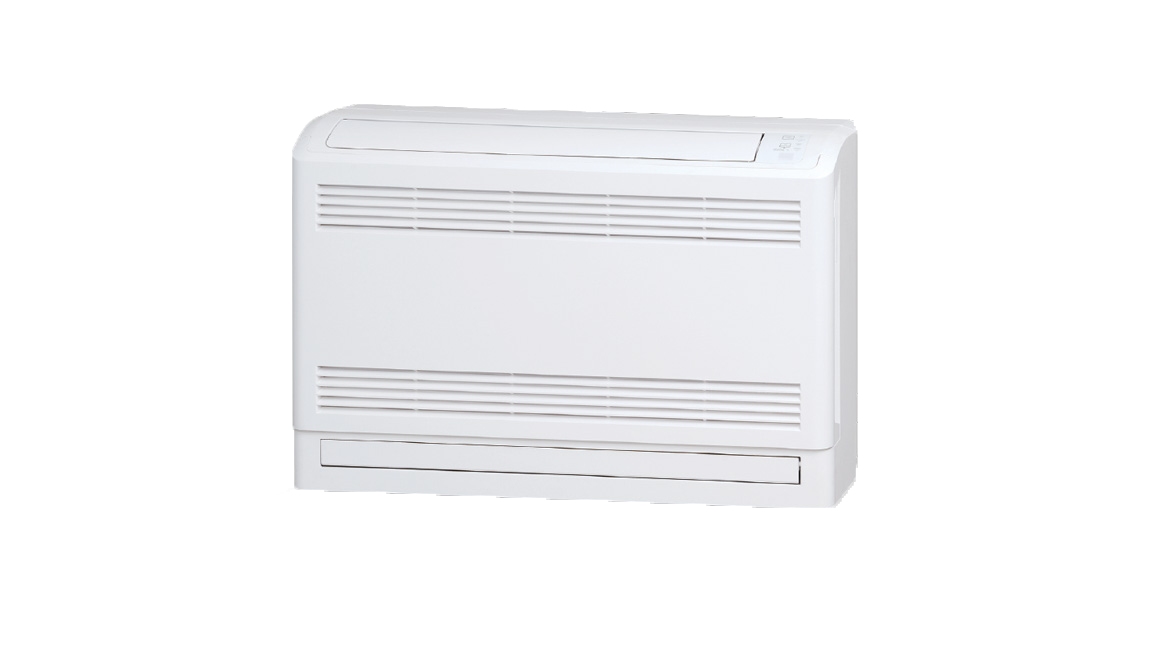

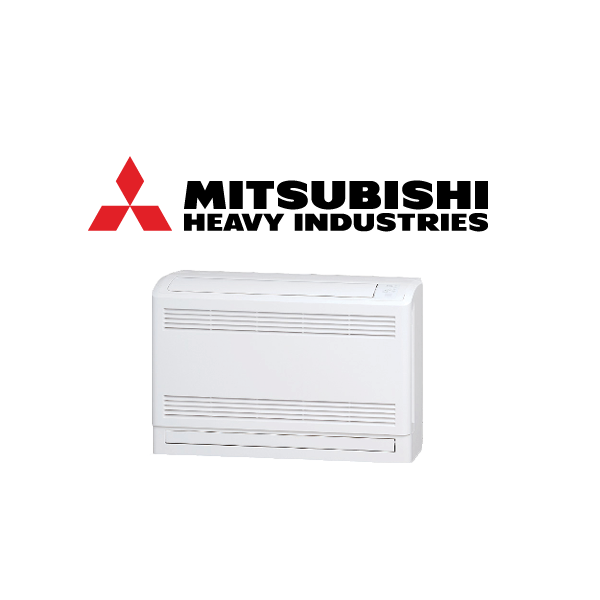

Mitsubishi Heavy Industries SRF50ZMXA-S 5.0 kW Floor Standing Multi-Unit

(SRF50ZMXA-S-Multi)

Indoor			SRK20ZSA-W
Outdoor			SRC20ZSA-W
Power Suppply			1 Phase 220-240V 50Hz
Capacity	Cooling T1	kW	2.0 (0.9 - 3.0)
Capacity	Heating H1	kW	2.7 (1.0 - 4.2)
Input	Cooling T1	kW	0.41 (0.18 - 0.81)
Input	Heating H1	kW	0.56 (0.20 - 1.12)
Energy Label	Cooling T1	Stars	5
Energy Label	Heating T1	Stars	5
Max running current		A	9
EER	Cooling T1		4.88
COP	Heating H1		4.82
Sound Power Level (JIS C9612)	Cooling (Outdoor)	dB(A)	56
Sound Power Level (JIS C9612)	Heating (Outdoor)	dB(A)	57
Sound Pressure Level (JIS C9612)	Cooling (Indoor)	dB(A)	35 - 27 - 22 - 19
Sound Pressure Level (JIS C9612)	Heating (Indoor)	dB(A)	39 - 30 - 24 - 19
Silent mode sound pressure level	Cooling (Outdoor)	dB(A)	41
Silent mode sound pressure level	Heating (Outdoor)	dB(A)	42
Airflow	Cooling (Indoor)	l/s	165 - 127 - 93 - 83
Airflow	Heating (Indoor)	l/s	190 - 142 - 108 - 93
External dimensions (HxWxD)	Indoor	mm	290 x 870 x 230
External dimensions (HxWxD)	Outdoor	mm	540 x 780 (+62) x 290
Net weight	Indoor	kg	9.5
Net weight	Outdoor	kg	33
Refrigerant Piping	Liquid Line	mm	Ø6.35
	Gas Line	mm	Ø9.52
	Connection Method		Flare Connection
Refrigerant R32	Quantity	kg	0.58
	Attached length of piping	m	Liquid line : 0.54 / Gas line : 0.47
	Pre charged to pipe length	m	15
	Additional charge	g/m	20
	Maximum charge	kg	0.68
Outdoor air temperature	Cooling	C	-15 to +46
Outdoor air temperature	Heating	C	-15 to +24

SKU	SRF50ZMXA-S-Multi
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	42.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
