Mitsubishi Heavy (MHI) SRK63ZRA-W-Set 6.3kW Wall Split Air Conditioning System

Mitsubishi Heavy (MHI) Wall Split

$1,827.00 Incl GST
$1,660.91 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

This product has been superseded by DXK21ZRA-W

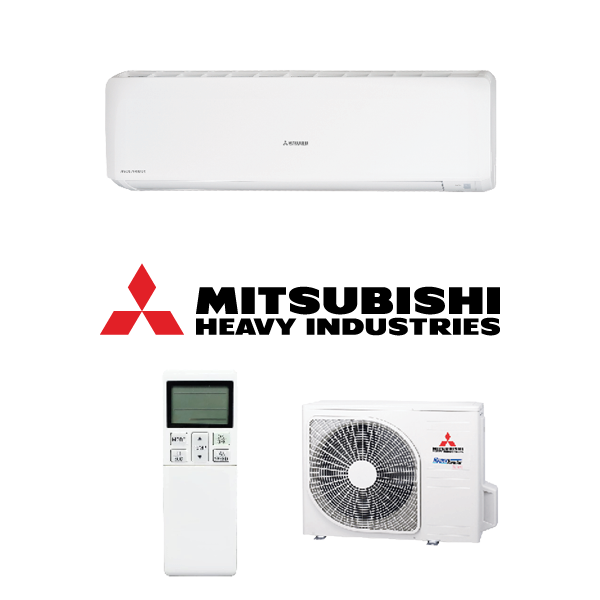

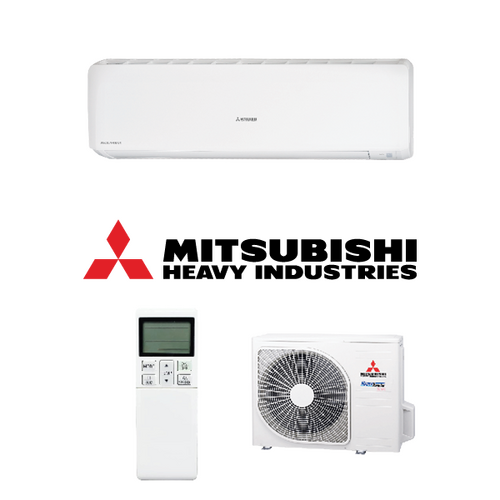

Mitsubishi Heavy Industries SRK63ZRA-W 6.3 kW Reverse Cycle Split System - Includes Outdoor Unit SRC63ZRA-W

Ideal for a large living or dining room or sitting room.

Features:

  • Advanced jet air technology delivering long reach airflow
  • Allergen clear system to capture and eliminate allergens
  • Wide range of convenient timer functions
  • Energy efficient R32 refrigerant
  • Optional Wi-Fi control

(SRK63ZRA-W-Set)

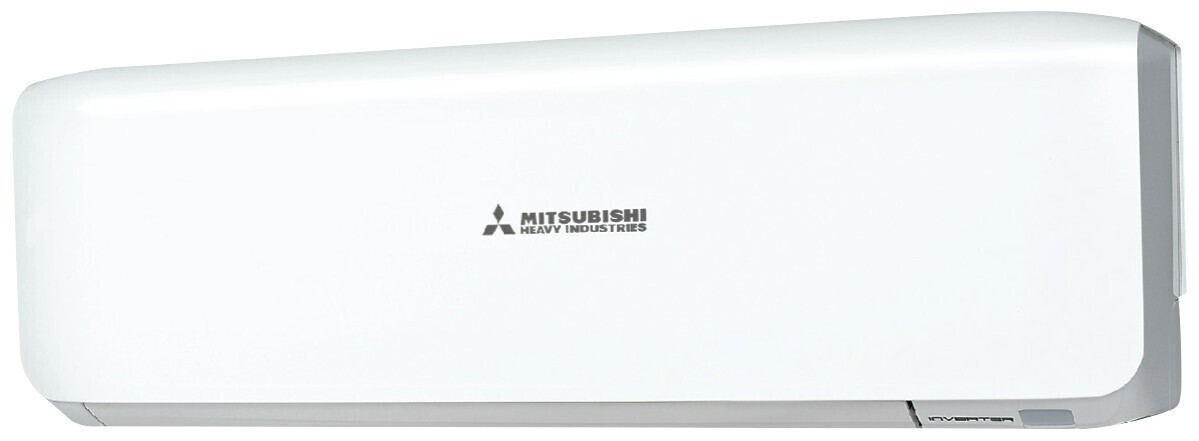

Indoor Unit SRK63ZRA-W

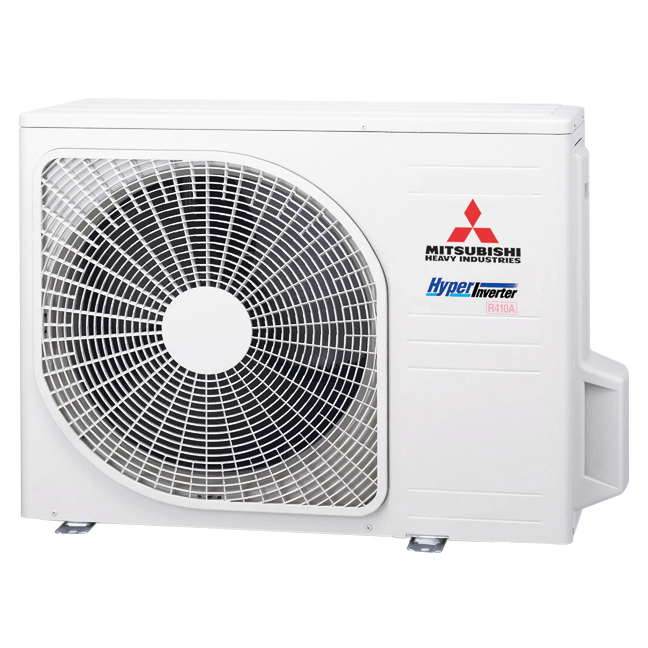

Outdoor Unit SRC63ZRA-W
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 6.3
Heat (kW) 7.1
Capacity Range
Cool (kW) 1.2 - 7.4
Heat (kW) 0.8 - 9.2
Power Input (Rated)
Cool (kW) 1.58
Heat (kW) 1.60
Running Current
Cool (A) 6.70
Heat (A) 6.70
EER/COP 3.99 / 4.44
Energy Star Ratings
Cool 4.0 / 3.5 / 3.5
Heat 3.5 / 3.0 / 2.5
Dimensions (HxWxD)
Indoor (mm) 339 x 1197 x 262
Outdoor (mm) 640 x 871 x 290
Weight
Indoor (kg) 15.5
Outdoor (kg) 45
Refrigerant Type R32
Refrigerant Amount (kg) 1.25
Pre-Charged to Pipe (m) 15
Max Pipe Length (m) 30
Max Level Difference
Indoor Higher (m) 20
Outdoor Higher (m) 20
Pipe Sizes
Liquid (mm) 6.35
Gas (mm) 12.70
Connection Type Flare
Indoor Airflow Rate
Cool (l/s) 342 / 301 / 262 / 173
Heat (l/s) 392 / 317 / 275 / 218
Indoor Sound Pressure Level (H/SL)
(dBA) 44 / 39 / 35 / 25
Outdoor Sound Pressure Level (H/SL)
(dBA) 54
Outdoor EPA Sound Power Level (H)
(dBA) 64
SKU SRK63ZRA-W-Set
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 60.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
