Mitsubishi Heavy (MHI) FDTC35ZSAWVH1-RC-EXZ3A 3.5kW Compact Cassette Air Conditioning System
FDTC35VH1 / SRC35ZSA-W Mitsubishi Heavy (MHI) Cassette
$2,069.09 Excl GST

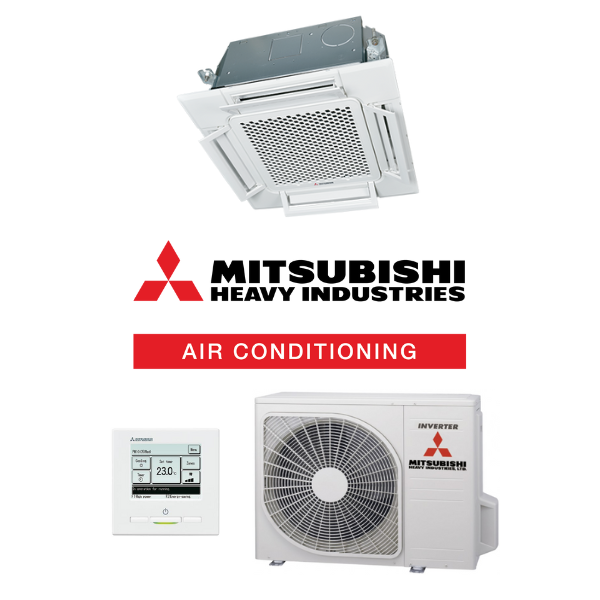

Mitsubishi Heavy (MHI) FDTC35ZSAWVH1-RC-EXZ3A 3.5kW Single Phase Compact Cassette Air Conditioner - Includes Outdoor Unit and Wall Controller
With a compact design, quiet operation and Draught Control Technology, the FDTC series of compact ceiling cassettes offer the perfect solution for a range of commercial applications. At only 258mm high, the FDTC series is one of the most compact ceiling cassettes on the market, allowing for easy installation in spaces with minimal roof space. Optional motion sensor offers an energy saving solution by monitoring activity in the room and automatically switching to energy-saving mode at times of low activity. Fascia panel available in both honeycomb and grid design.
Key Features:
- Compact Design
- Draught Control Technology to deliver efficient airflow and prevent draughts
- Various timer functions for convenience
- Optional Motion Sensor for increased energy saving
- 600mm Built-in drain pump
(FDTC35ZSAWVH1-RC-EXZ3A)
| System Names | FDTC25ZSAWVH1-RC-EXZ3A | FDTC35ZSAWVH1-RC-EXZ3A | FDTC50ZSXAWVH-RC-EXZ3A | FDTC60ZSXAWVH-RC-EXZ3A |
|---|---|---|---|---|

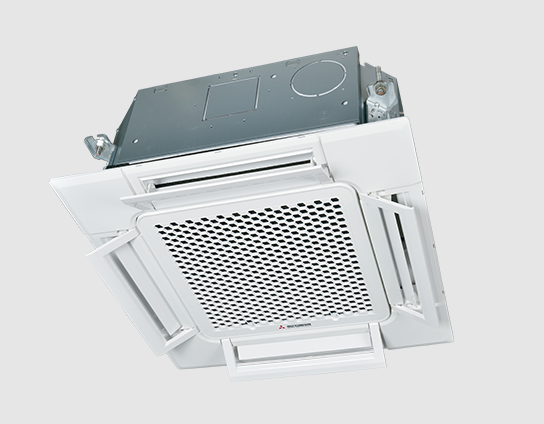

| Indoor Unit | FDTC25VH1 | FDTC35VH1 | FDTC50VH | FDTC60VH |

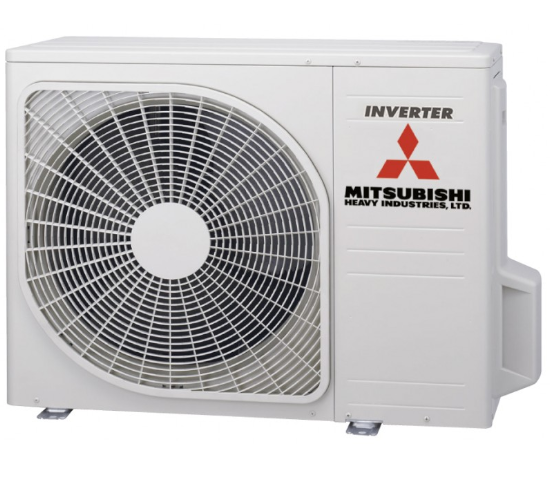

| Outdoor Unit | SRC25ZSA-W | SRC35ZSA-W | SRC50ZSXA-W | SRC60ZSXA-W |
| Cooling Capacity Rated/Min-Max (kW) | 2.5 (0.9-3.5) | 3.5 (0.9-4.3) | 5.0 (1.1-5.6) | 5.6 (1.1-6.3) |
| Heating Capacity Rated/Min-Max (kW) | 3.4 (0.9-4.6) | 4.25 (0.9-4.6) | 5.4 (0.6-6.3) | 6.7 (0.6-6.7) |
| Power Supply | 1 Phase, 240V, 50Hz | |||
| Power Consumption Rated/Min-Max Cool (kW) | 0.54 (0.18-0.89) | 0.91 (0.18-1.37) | 1.40 | 1.73 |
| Power Consumption Rated/Min-Max Heat (kW) | 0.77 (0.18-1.36) | 1.08 (0.19-1.33) | 1.53 | 2.14 |
| Maximum Power Consumption (kW) | 1.65 | 2.90 | ||
| Running Current Cool/Heat (A) | 2.7 / 3.6 | 4.1 / 4.8 | 6.2 / 6.7 | 7.6 / 9.4 |
| Inrush/Maximum Current (A) | 3.6 / 9 | 4.8 / 9 | 5 / 15 | |
| EER/COP | 4.63 / 4.42 | 3.85 / 3.94 | 3.58 / 3.53 | 3.23 / 3.13 |
| Outdoor Sound Power Level (dBA) | 59 | 62 | 63 | 65 |
| Indoor Sound Pressure Level P-Hi/Hi/Me/Lo (dBA) | 38 / 34 / 30 / 27 | 39 / 36 / 32 / 29 | 44 / 40 / 35 / 27 | 46 / 42 / 38 / 31 |
| Outdoor Sound Pressure Level (dBA) | 47 | 50 | 52 | 53 |
| Indoor Unit Dimensions (HxWxD) (mm) | 248 x 570 x 570 | |||
| Panel Dimensions (HxWxD) (mm) | 10 x 620 x 620 | |||
| Outdoor Unit Dimensions (HxWxD) (mm) | 540 x 842 x 290 | 640 x 871 x 290 | ||
| Indoor Unit/Panel Weight (kg) | 13.5 / 2.5 | 14 / 2.5 | ||
| Outdoor Unit Weight (kg) | 34.5 | 45 | ||
| Cooling Airflow P-Hi/Hi/Me/Lo (l/s) | 142 / 125 / 117 / 100 | 150 / 133 / 125 / 108 | 217 / 183 / 150 / 117 | 233 / 200 / 167 / 133 |
| Heating Airflow P-Hi/Hi/Me/Lo (l/s) | 175 / 142 / 125 / 108 | 183 / 150 / 133 / 117 | 217 / 183 / 150 / 117 | 233 / 200 / 167 / 133 |
| Refrigerant Quantity (kg) | 0.78 | 1.3 | ||
| Refrigerant Pre-charged to pipe (mm) | 15 | |||
| Pipe Sizes Liquid/Gas (mm) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| Connection Method | Flare Connection | |||
| Maximum Pipe Length (One Way) (m) | 20 | 30 | ||
| Max Vertical Height Diff. (m) | 10 (O.U above I.U) / 10 (O.U below I.U) | 20 (O.U above I.U) / 20 (O.U below I.U) | ||

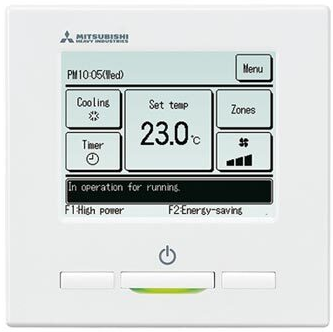

| Controller | RC-EXZ3A | |||
| Demand Response | YES | |||
| Outdoor Air Temperature Limits Cool/Heat (C) | -15 to 46 / -15 to 24 | -15 to 46 / -20 to 20 | ||
| SKU | FDTC35ZSAWVH1-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 50.5000kg |
| Shipping Width | 0.262m |
| Shipping Height | 0.540m |
| Shipping Length | 0.570m |
| Shipping Cubic | 0.216276000m3 |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
