Panasonic S-6071PU3E/U-60PZ3R5 6.0kW Cassette 1 Phase Single Fan R32 Air Conditioning System
S-6071PU3E / U-60PZ3R5 Panasonic Single Fan Cassette
$3,359.09 Excl GST

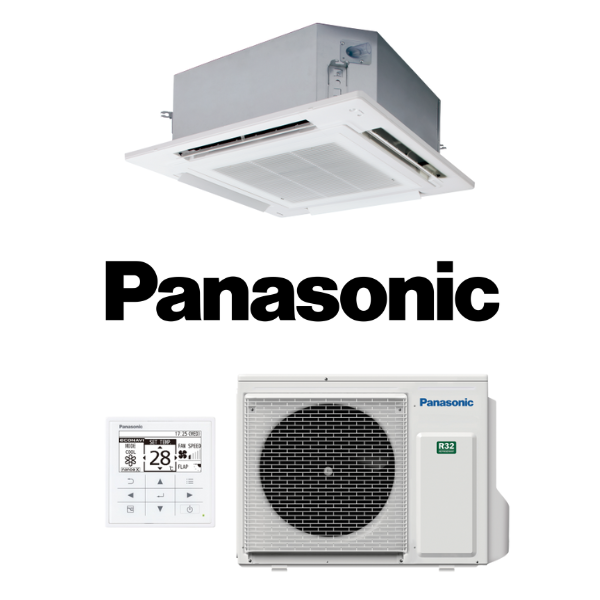

Panasonic S-6071PU3E/U-60PZ3R5 6.0kW Cassette 1PH Single Fan R32 Air Conditioning System - Includes Outdoor Unit and Wall Controller
Panasonic R32 Inverter NX Series 4-Way Cassette, featuring 360° comfortable airflow, deliver a cleaner environment thanks to nanoe™ X. Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
Features:
- More Efficient Air Protection with Nanoe X Generator Mark 2.
- Industry Leading Airflow for Cooling Comfort - Cools the Area Quickly, Delivering Cool Air from High Ceilings to Every Corner of Spaces.
- Double Insulation to Prevent Dew Condensation.
- Flat and Horizontal Design that Conditions the Interior.
- Includes Wired Remote Controller CZ-RTC5B.
- Flexible and Easy Installation.
(S-6071PU3E_U-60PZ3R5)
| System | S-6071PU3E/U-60PZ3R5 | S-6071PU3E/U-71PZ3R5 | S-1014PU3E/U-100PZ3R5 | S-1014PU3E/U-125PZ3R5 | S-1014PU3E/U-140PZ3R5 | |
|---|---|---|---|---|---|---|
| Indoor Unit | S-6071PU3E | S-1014PU3E | ||||
| Outdoor Unit | U-60PZ3R5 | U-71PZ3R5 | U-100PZ3R5 | U-125PZ3R5 | U-140PZ3R5 | |
| Cooling Capacity Rated/Min-Max | kW | 6.0 (2.0-7.1) | 7.1 (2.6-7.7) | 10.0 (3.0-11.5) | 12.5 (3.2-13.5) | 14.0 (3.3-15.0) |
| Heating Capacity Rated/Min-Max | 6.0 (1.8-7.0) | 7.1 (2.1-8.1) | 10.0 (3.0-14.0) | 12.5 (3.3-15.0) | 14.0 (3.4-16.0) | |
| Power Supply | 1 Phase, 230-240V, 50Hz | |||||
| EER/COP | W/W | 3.82 / 4.48 | 3.40 / 4.23 | 3.82 / 4.93 | 3.58 / 4.43 | 3.23 / 4.18 |
| Total Power Input Cool/Heat | kW | 1.57 / 1.34 | 2.09 / 4.23 | 2.62 / 2.03 | 3.49 / 2.82 | 4.34 / 3.35 |
| TCSPF Residential Hot/Avg/Cold | 5.65 / 5.04 / 5.23 | 5.12 / 4.64 / 4.83 | 5.78 / 5.00 / 5.10 | 5.27 / 4.73 / 4.85 | 4.94 / 4.54 / 4.69 | |
| TCSPF Commercial Hot/Avg/Cold | 6.17 / 6.29 / 6.75 | 5.73 / 6.05 / 6.79 | 6.60 / 7.05 / 7.94 | 5.84 / 6.29 / 6.95 | 5.46 / 6.19 / 6.89 | |
| HSPF Residential Hot/Avg/Cold | 6.69 / 5.44 / 4.45 | 5.75 / 4.85 / 4.14 | 5.43 / 5.06 / 4.62 | 5.56 / 4.87 / 4.17 | 5.52 / 4.72 / 3.97 | |
| HSPF Commercial Hot/Avg/Cold | 6.71 / 5.97 / 5.06 | 5.78 / 5.26 / 4.61 | 5.34 / 5.11 / 4.78 | 5.51 / 5.11 / 4.53 | 5.51 / 5.03 / 4.40 | |

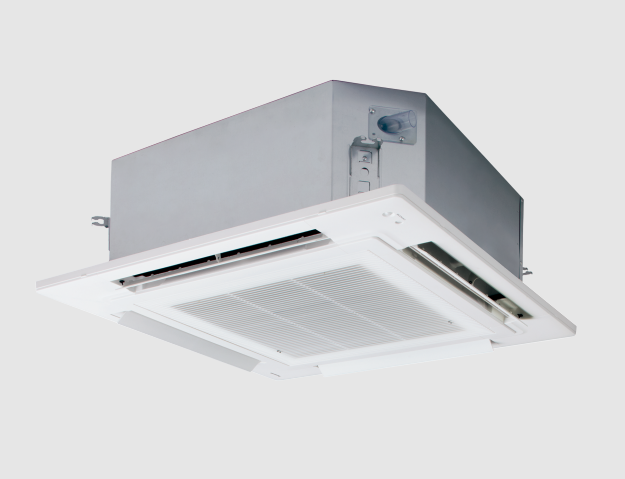

| Indoor Unit | ||||||
| Indoor Unit Dimensions HxWxD | mm | 256 x 840 x 840 | 319 x 840 x 840 | |||
| Panel Dimensions HxWxD | 33.5 x 950 x 950 | |||||
| Net Weight Indoor/Panel | kg | 20 / 5 | 25 / 5 | |||
| Air Volume H/M/L Cool/Heat | L/s | 350 / 267 / 217 | 367 / 267 / 217 | 601 / 434 / 300 | 617 / 450 / 317 | 634 / 484 / 334 |
| Sound Pressure Level H/M/L Cool/Heat | dBA | 36 / 31 / 28 | 37 / 31 / 28 | 45 / 38 / 32 | 46 / 39 / 33 | 47 / 40 / 34 |
| Sound Power Level H/M/L Cool/Heat | 51 / 46 / 43 | 52 / 46 / 43 | 60 / 53 / 47 | 61 / 54 / 48 | 62 / 55 / 49 | |
| Number of Fan Speeds | 5 | |||||
| Drain Pipe Size | mm | VP-25 | ||||

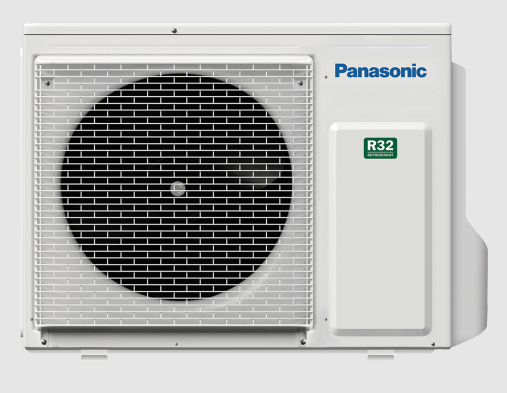

| Outdoor Unit | ||||||
| Rated Current (Cooling) | A | 7.2-6.9 | 9.65-9.25 | 12.5-12.0 | 16.1-15.4 | 20.0-19.2 |
| Rated Current (Heating) | 5.95-5.70 | 7.45-7.15 | 9.7-9.3 | 13.0-12.5 | 15.5-14.8 | |
| Dimensions HxWxD | mm | 695 x 875 x 320 | 996 x 980 x 370 | |||
| Net Weight | kg | 43 | 50 | 83 | 87 | |
| Air Volume Cool/Heat | m3/min | 701 / 701 | 746 / 766 | 1219 / 1219 | 1369 / 1336 | 1402 / 1369 |
| Sound Pressure Level (Silent Mode) Cool/Heat | dBA | 48(46) / 49(47) | 49(47) / 49(47) | 52(50) / 52(50) | 55(53) / 55(53) | 56(54) / 56(54) |
| Sound Power Level (Silent Mode) Cool/Heat | dB | 66(64) / 67(65) | 67(65) / 67(65) | 70(68) / 70(68) | 73(71) / 73(71) | 74(72) / 74(72) |
| Piping Connections Liquid/Gas | mm | 6.35 / 12.7 | 6.35 / 15.88 | 9.52 / 15.88 | ||
| Pipe Length Min-Max | m | 3-40 | 5-50 | |||
| Elevation Difference | ODU Lower 15 / ODU Higher 30 | |||||
| Maximum Chargeless Length | 30 | |||||
| R32 Refrigerant at Shipping/Additional Gas Amount | g | 1130 / 15g/m | 1320 / 17g/m | 2400 / 45g/m | 2800 / 45g/m | |
| Operation Ranges Cool/Heat | C | -10 to 46 / -15 to 24 | ||||
| SKU | S-6071PU3E_U-60PZ3R5 |
| Brand | Panasonic |
| Shipping Weight | 68.0000kg |
| Shipping Cubic | 0.405919000m3 |
| Unit Of Measure | ea |
